Arctic Cat AC SNO PRO 120 GREEN AC SNO PRO 120 GREEN CHASSIS FOOTREST AND REAR BUMPER ASSEMBLY

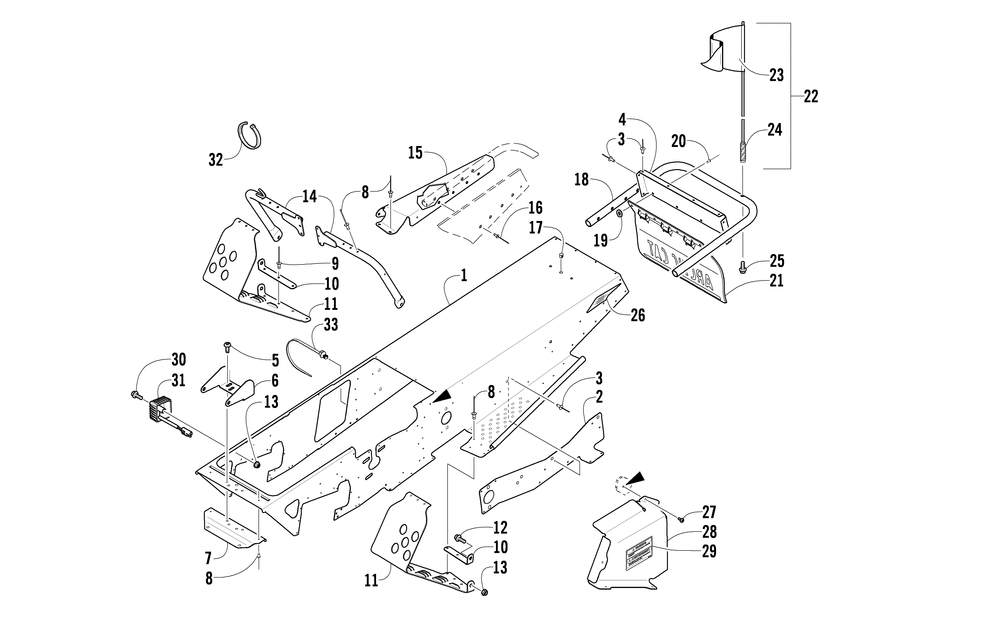

CHASSIS FOOTREST AND REAR BUMPER ASSEMBLY
№ Наименование Примечание Кол-во
1 TUNNEL-S/P ASSY (inc. 2-4) 1
2 PLATETUNNEL-REINF-RH-PTD BLK 1
2 PLATETUNNEL-REINF-LH-PTD BLK 1
3 RIVET SOLID ALUM-.156 X.312 (10 per pack) 26
4 PLATECOVER-TUNNEL-PTD BLK 1
5 SCREWSELF TAP-HWH 1/4-20X1/2 (4 per pack) 4
6 BRKTLOWER MTG-HOOD-PTD BLK 1
7 PLATE REINFORCEMENT-PTD BLK-120 1
8 RIVET BLIND-DH SS53 ZINC (10 per pack) 0
9 RIVET BLIND-DH SS54 ZINC (20 per pack) 6
10 BRKTSUPPORT-FOOTREST-R/H-PTD BLK 1
10 BRKTSUPPORT-FOOTREST-L/H-PTD BLK 1
11 FOOTREST-RH 1
11 FOOTREST-LH 1
12 SCREWCAP-HFH 1/4-20 X 0.750 Z&Y (10 per pack) 2
13 NUTHEX FLG-NY LOCK 1/4-20 GR F Z&Y (10 per pack) 3
14 SUPPORT FOOTREST-PTD BLK-RH 1
14 SUPPORT FOOTREST-PTD BLK-LH 1
15 CAPEND-REAR BUMPER-RH 1
15 CAPEND-REAR BUMPER-LH 1
16 RIVETBLIND-DH SS64 BLK (10 per pack) 8
17 PLUGHOLE-3/8 DIA-BLK (4 per pack) 1
18 BUMPERREAR-PTD BLK-F 120 1
19 WASHERFLAT .194X.50X.048 (4 per pack) 4
20 RIVETBLIND-DH AA66 BLK (10 per pack) 4
21 SNOWFLAP-BLACK 1
22 FLAGSAFETY-ASSY (inc. 24-27) 1
23 FLAGSAFETY 1
24 MOUNT SAFETY FLAG-ASSY 1
25 SCREWCAP-HFH 5/16-18 X 1.25 G5 Z&Y (5 per pack) 1
26 DECAL REFLECTOR-RH 1
26 DECAL REFLECTOR-LH 1
27 SCREWSELF TAP-HWH 10X1/2 AB Z&Y (2 per pack) 4
28 COVERSPROCKET-DRIVEN-PTD BLK 1
29 DECAL WARNINGGUARD 1
30 SCREWCAP-HFH 1/4-20 X 1.500 Z&Y (2 per pack) 1
31 REGULATORVOLTAGE-FW 2 WIRE SQ 1
32 TIECABLE-8.5/7.5/7.4 (10 per pack) 0
33 CABLE TIEPUSH MOUNT-X MAS CLIP (5 per pack) 0
