Arctic Cat F5 ORANGE F5 ORANGE SKID PLATE AND SIDE PANEL ASSEMBLY

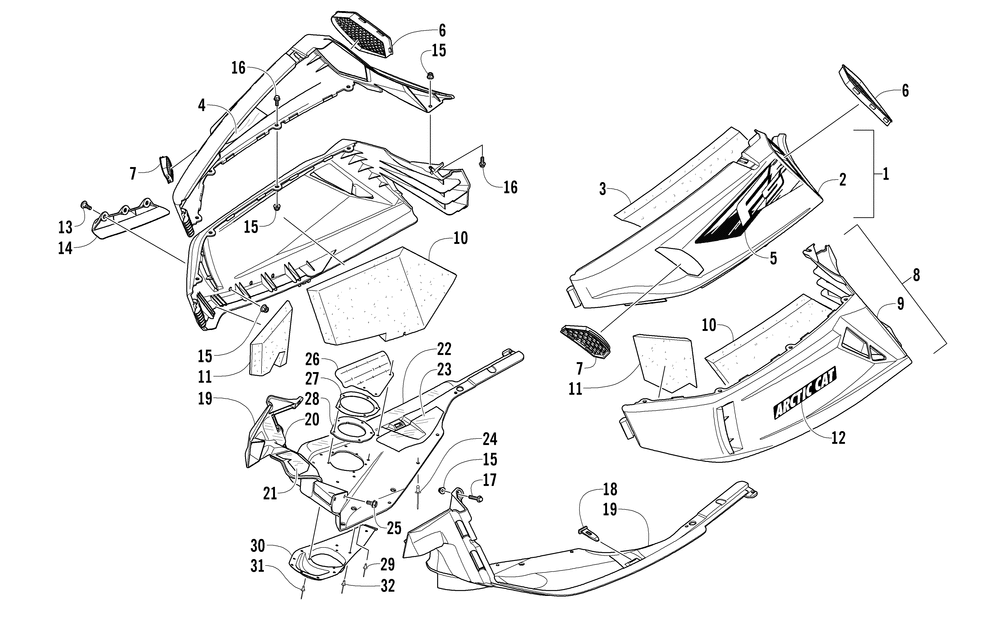

SKID PLATE AND SIDE PANEL ASSEMBLY
№ Наименование Примечание Кол-во
1 PANELSIDE-UPR-RH W/DECALS Black (inc. 2-5) 1
1 PANELSIDE-UPR-LH W/DECALS Black (inc. 2-3 and 5) 1
2 PANELSIDE-UPPER RH W/O DECALS-BLK (inc. 3-4) 1
2 PANELSIDE-UPR-W/O DECALS-LH BLK (inc. 2) 1
3 FOAMUPR SIDE PANEL-RH 1
3 FOAMUPR SIDE PANEL-LH 1
4 KITUPDATE-PROT FOIL 1
5 DECALSIDE PANEL-UPR ORN-F5 LH 1
5 DECALSIDE PANEL-UPR ORN-F5 RH 1
6 VENTUPR PANEL-REAR LH-MOLD BLK 1
6 VENTUPR PANEL-REAR RH-MOLD BLK 1
7 VENTUPR PANEL-RH HONEYCOMB-MOLD BLK 1
7 VENTUPR PANEL-LH HONEYCOMB-MOLD BLK 1
8 PANELSIDE-LWR-RH W/DECALS Black (inc. 9-12) 1
8 PANELSIDE-LWR-LH W/DECALS Black (inc. 9-12) 1
9 PANELSIDE-LWR LH W/O DECALS-BLK (inc. 10-11) 1
9 PANELSIDE-LWR-W/O DECALS RH BLK Black (inc. 9-10) 1
10 FOAMLWR SIDE PANEL- REAR LH (19mm THK) 1
10 FOAMLWR SIDE PANEL-REAR RH 1
11 FOAMLWR SIDE PANEL-FRT RH 1
11 FOAMLWR SIDE PANEL-FRT LH(19mm THK) 1
12 DECALSKID PLATE-ARCTIC CAT 2
13 SCREW SHOULDER-M6-1.0 X 18-BLK (4 per pack) 3
14 DEFLECTOREXHAUST 1
15 NUTHEX FLG-NYL LOCK M6X1.0 CL8 Z&Y (5 per pack) 15
16 SCREWCAP-HFH M6X1.0X20 CL8.8 Z&Y (4 per pack) 10
17 SCREWCAP-HFH M6X1.0X35 CL8.8 Z&Y (5 per pack) 2
18 STRAPHOLDDOWN-STORAGE BOX LID 2
19 PLATESKID-BLK RH-ROUTED 1
19 PLATE SKID-LH-BLK-ROUTED-F/C 1
20 FOILRH SKID PLATE-HINGE 1
21 FOILPROTECTIVE-RH SKID PLATE-UPR FRT 1
22 FOILPROTECTIVE-RH SKID PLATE-OUTER 1
23 FOILPROTECTIVE-RH SKID PLATE-CENTER 1
24 RIVET BLIND-LF SS66 BLACK (10 per pack) 9
25 SCREWSELF TAP-HWH M6 X 12 Z (TRI LOB) 4
26 SHIELDHEAT-RH SKID PLATE 1
27 PLATEEXHAUST OUTLET SEAL-PTD BLK 1
28 SEALEXHAUST OUTLET-2 STRK 1
29 RIVETBLIND-LF SS56 BLACK (10 per pack) 3
30 SHIELDHEAT-EXHAUST OUTLET-PTD 1
31 RIVETBLIND-DH SS58 BLK (10 per pack) 3
32 RIVET BULBEX-BF01-0625 (10 per pack) 6
