Arctic Cat TZ1 TURBO LXR METALLIC BLACK TZ1 TURBO LXR METALLIC BLACK HOOD WINDSHIELD AND FRONT BUMPER ASSEMBLY

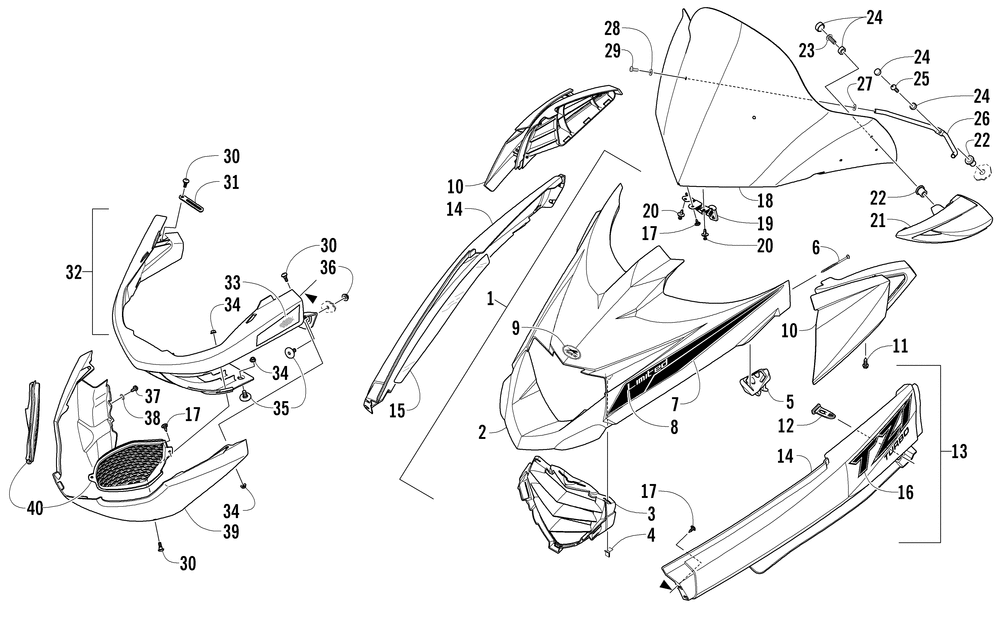

HOOD WINDSHIELD AND FRONT BUMPER ASSEMBLY
№ Наименование Примечание Кол-во
1 LIDHOOD-TURBO-METALLIC BLK W/DECALS Black (inc. 2-9) 1
2 LID HOOD-MET. BLK-TURBO-MFG ASSY Black (inc. 3-6) 1
3 GRILLEINTERCOOLER-MOLD BLK Black 1
4 CLIPRETAINING-HOOD (10 per pack) 7
5 CLIPRUBBER-HOOD-HOLDDOWN-RH 1
5 CLIPRUBBER-HOOD-HOLDDOWN-LH 1
6 SCREWWOOD-TSFH-tahos_8-13X3.00" Z&Y (10 per pack) 2
7 DECALHOOD-RH-BLK 1
7 DECALHOOD-LH-BLK 1
8 DECALEMBLEM-"LIMITED" 2
9 DECALEMBLEM-CHROME 1
10 BEZELINTAKE-LH MET BLK-ASSY(TURBO) Black 1
10 BEZELINTAKE-RH MET BLK-ASSY(TURBO) Black 1
11 SCREWSELF TAPPING-.1875 X .75 (5 per pack) 2
12 STRAPHOLDDOWN-STORAGE BOX LID 2
13 SPARFRONT-RH-MATTE BLK W/DECALS Black (inc. 14-16) 1
13 SPARFRONT-LH-MATTE BLK W/DECALS Black (inc. 14 and 16) 1
14 SPARFRONT-LH-PTD MATTE BLK Black 1
14 SPARFRONT-RH-PTD MATTE BLK Black 1
15 FOILRH SPAR-BOTTOM 1
16 DECALSPAR-BLK 2
17 SCREWSELF TAP-TXSTRH tahos_10-12X5/8 TP A BL (5 per pack) 11
18 WINDSHIELDTURBO-HIGH W/HOLES TINT W/BLK 1
19 BRKTWINDSHIELD-HOLDDOWN-PTD BLK 1
20 RIVETPLASTIC-REINSTALLABLE (5 per pack) 2
21 KITMIRROR(SINGLE)'08-BLK (inc. 15-17) 2
22 NUT EXP10-32 (5 per pack) 7
23 SCREW MACH-PHTRH-10-32X5/8-ZY (5 per pack) 6
24 SNAP CAP W/WASHER (10 per pack) 7
25 SCREWMACH-PHTRH tahos_10-32X3/4 Z&Y (10 per pack) 1
26 SUPPORTWINDSHIELD-TURBO HIGH-PTD BLK 1
27 WASHERFLAT- 5/16 X .625 X .063 Z&Y (10 per pack) 2
28 WASHERRUBBER-8X19X3 (2 per pack) 2
29 SCREWMACH-TSTRH-M8X1.25X16-Z&BLK-W/203 (2 per pack) 2
30 SCREW SHOULDER-M6-1.0 X 18-BLK (4 per pack) 4
31 CLAMPWIRE - 76.14MM LG W/6.25 HOLE (2 per pack) 1
32 BUMPERFRT CLIP-MATTE BLK W/REFLECTORS Black (inc. 33) 1
33 DECALREFLECTOR-AMBER RH 1
33 DECALREFLECTOR-AMBER LH 1
34 NUTHEX FLG-NYL LOCK M6X1.0 CL8 Z&Y (5 per pack) 6
35 SCREWSHOULDER TSTRH M6X1.0X25 Z&Y (4 per pack) 4
36 NUTHEX-FLG M6X1.0 CL8 Z&Y (4 per pack) 2
37 SCREWSELF TAP-HWH M6 X 12 Z (TRI LOB) 2
38 WASHERLOCK-5/16 EXT TOOTH TYP A Z&Y (10 per pack) 2
39 FACIABUMPER-LWR-PTD METALLIC BLK Black 1
40 VENTBUMPER-LH-MOLD BLK 1
40 VENTBUMPER-RH-MOLD BLK 1
