Arctic Cat XF 1100 TURBO SNO PRO HIGH COUNTRY BLACK XF 1100 TURBO SNO PRO HIGH COUNTRY BLACK SKID PLATE AND SIDE PANEL ASSEMBLY

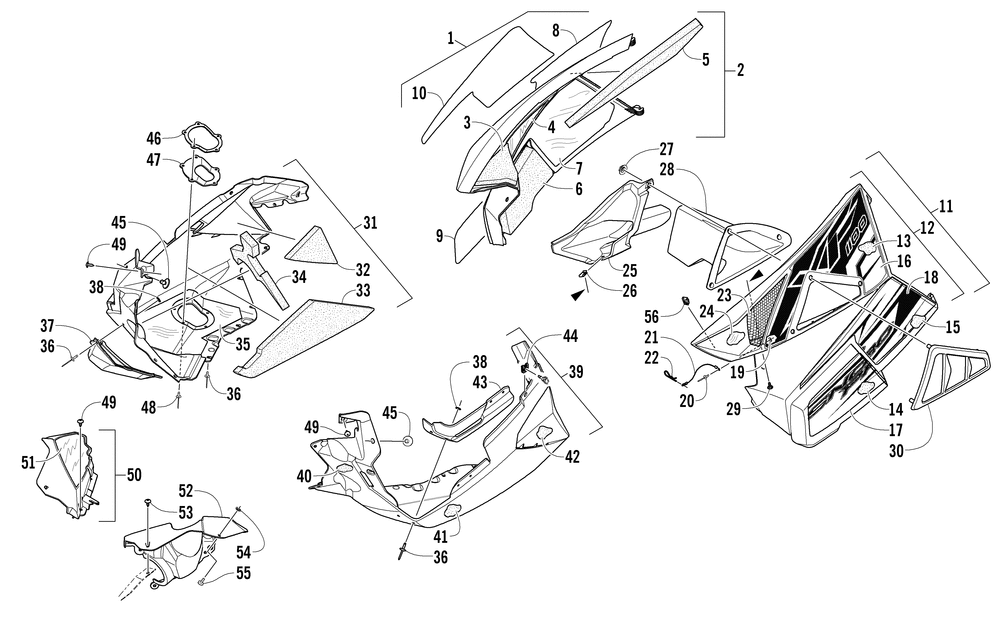

SKID PLATE AND SIDE PANEL ASSEMBLY
№ Наименование Примечание Кол-во
1 PANELSIDE-RH W/BLK DECALS(XF TBO HI CO) White (inc. 2-10) 1
2 PANELSIDE-RH WHT-W/FOAM-4 STRK (inc. 3-7 and 25-28) 1
3 FOAMUPPER SIDE PANEL-FRT-RH 1
4 FOILPROTECTIVE-MIDDLE SIDE PANEL-RH 1
5 FOAMUPPER SIDE PANEL-REAR-RH 1
6 FOAMLWR SIDE PANEL-FRT-RH 1
7 FOILPROTECTIVE-LWR SIDE PANEL-REAR-RH 1
8 DECALSIDE PANEL-LWR-BLK-RH (SP) 1
9 DECALSIDE PANEL-FWD-BLK-RH (SP) 1
10 DECALSIDE PANEL-UPPER-BLK-RH(XF1100 SP) 1
11 PANELSIDE-LH W/BLK DECALS(XF TBO HI CO) White (inc. 12-18) 1
12 PANELSIDE-LH WHT-W/FOAM-TURBO White (inc. 13-15) 1
13 FOAMUPPER SIDE PANEL-REAR LH-4 STRK 1
14 FOAMLWR SIDE PANEL-FRT-LH 1
15 FOAMLWR SIDE PANEL-REAR-LH 1
16 DECALSIDE PANEL-UPPER-BLK-LH(XFTURB SP) 1
17 DECALSIDE PANEL-FWD-BLK-LH (SP) 1
18 DECALSIDE PANEL-LWR-BLK-LH (SP) 1
19 WASHERFLAT- tahos_8 X .375 X .049 Z&Y (20 per pack) 2
20 RIVET BLIND-DH SS54 ZINC (20 per pack) 2
21 CABLE5"-HAIRPIN 2
22 HAIRPINCOTTER (5 per pack) 2
23 SCREENSIDE PANEL-UPR LH-PTD BLK Optional 1
24 TAPEALUM FOIL - 6" X 30 FT Optional 0
25 DUCTBELT COOLING-4 STRK 1
26 NUTSPEED-tahos_10B U TYPE (6 per pack) 1
27 NUTSTAMPED- 0.330 (4 per pack) 3
28 DUCTHEAT-TURBO-ROUTED 1
29 SCREWSELF TAP-TSTH 10-12X1/2 WO/GP (10 per pack) 1
30 COVERDUCT-HEAT-TURBO 1
31 PLATESKID-RH-W/FOAM (inc. 26-32) 1
32 FOAMSKID PLATE-REAR-RH 1
33 FOAMSKID PLATE-MIDDLE-RH 1
34 FOAMSKID PLATE-FRT-RH 1
35 FOILSKID PLATE-RESONATOR 1
36 RIVET BLIND-LF SS66 BLACK (10 per pack) 27
37 SHIELDRESONATOR-SKID PLATE 1
38 WASHERFLAT .194X.50X.048 (4 per pack) 9
39 PLATESKID-REAR LH W/FOAM (inc. 35 37 and 39-42) 1
40 FOAMSKID PLATE-FRT-LH 1
41 FOAMSKID PLATE-MIDDLE-LH 1
42 FOAMSKID PLATE-REAR-LH 1
43 RETAINERTAB-SIDE PANEL 1
44 CLIP RECEPTACLE-1/4 TURN STUD 2
45 PINRETAINER-BODY PLASTIC (4 per pack) 2
46 PLATEEXHAUST OUTLET 1
47 SEALEXHAUST OUTLET-4 STRK 1
48 RIVETBLIND-LF SS68 BLACK (20 per pack) 6
49 SCREWSELF TAP-TXSTRH tahos_10-12X5/8 TP A BL (5 per pack) 8
50 PANELFILLER W/FOIL-RH (inc. 45) 1
51 FOILPROTECTIVE-FILLER PANEL-RH 1
52 PANELFILLER-LH-TURBO-BLK 1
53 SCREWSELF TAP-TSTRH tahos_10-12X3/4 TP A BLK (5 per pack) 2
54 RETAINERPUSHNUT-3/16" STUD (4 per pack) 1
55 SCREW1" RND KNOB-M5X0.8X20mm LG (4 per pack) 1
56 CLIPU-NUT (M5) (4 per pack) 1
