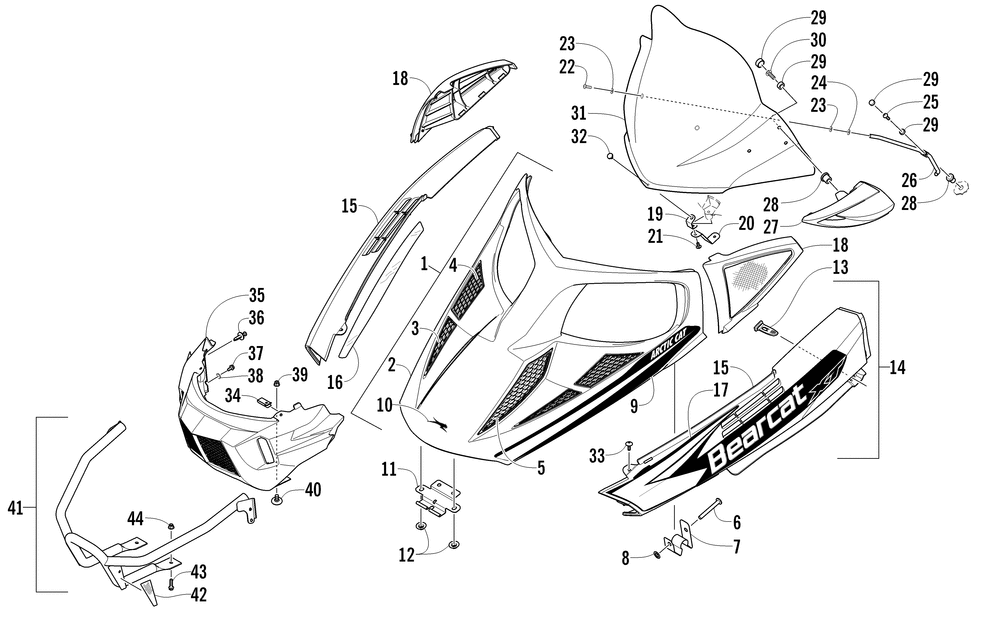

HOOD WINDSHIELD AND FRONT BUMPER ASSEMBLY

Корзина пуста
Arctic Cat BEARCAT Z1 XT LTD CRIMSON RED BEARCAT Z1 XT LTD CRIMSON RED HOOD WINDSHIELD AND FRONT BUMPER ASSEMBLY
HOOD WINDSHIELD AND FRONT BUMPER ASSEMBLY
№ Наименование Примечание Кол-во
1 LIDHOOD-CANDY RED W/DECALS Crim Red (inc. 2-10) 1
2 LIDHOOD-DESERT RED-MFG ASSY Crm Red (inc. 3-8) 1
3 VENTHOOD-OUTER FRONT-RH-MOLD BLK Black 1
3 VENTHOOD-OUTER FRONT-LH-MOLD BLK Black 1
4 VENTHOOD-OUTER-REAR RH-MOLD BLK Black 1
4 VENTHOOD-OUTER-REAR LH-MOLD BLK Black 1
5 VENTHOOD LID-INNER-RH-MOLD BLK Black 1
5 VENTHOOD LID-INNER-LH-MOLD BLK Black 1
6 PINRETAINING-HOOD (2 per pack) 2
7 CLIPHOLDDOWN-HOOD LID-LH-PTD BLK 1
7 CLIPHOLDDOWN-HOOD LID-RH-PTD BLK 1
8 RETAINERPUSHNUT-1/4 (5 per pack) 2
9 DECALHOOD LID-"ARCTIC CAT"-RED-RH 1
9 DECALHOOD LID-"ARCTIC CAT"-RED-LH 1
10 DECALAIRCAT-DYMOFLEX CHROME 1
11 BRKTLID HINGE-BCXT 1
12 NUTSTAMPED- 0.330 (4 per pack) 4
13 STRAPHOLDDOWN-STORAGE BOX LID 2
14 SPARFRONT-RH-XT-CANDY RED W/DECALS Crim Red (inc. 15-17) 1
14 SPARFRONT-LH-XT-CANDY RED W/DECALS Crim Red (inc. 15 and 17) 1
15 SPARFRONT-LH-PTD DESERT RED Crm Red 1
15 SPARFRONT-RH-PTD DESERT RED Crm Red 1
16 FOILRH SPAR-BOTTOM 1
17 DECALFRT SPAR-"XT"-RED-RH 1
17 DECALFRT SPAR-"XT"-RED-LH 1
18 BEZELINTAKE-LH-CANDY RED-ASSY Crm Red 1
18 BEZELINTAKE-RH-CANDY RED-ASSY Crm Red 1
19 BRKTHOLDDOWN-WINDSHIELD 1
20 BRKT WINDSHIELD 1
21 SCREWSELF TAP-TXSTRH tahos_10-12X5/8 TP A BL (5 per pack) 1
22 SCREWMH-TSTRH-M8X1.25X20-Z&BLK-W/2510 (2 per pack) 2
23 WASHERRUBBER-8X19X3 (2 per pack) 4
24 WASHERFLAT- 5/16 X .625 X .063 Z&Y (10 per pack) 2
25 SCREWMACH-PHTRH tahos_10-32X3/4 Z&Y (10 per pack) 1
26 SUPPORTWINDSHIELD-PTD BLK 1
27 KITMIRROR(SINGLE)'08-BLK (inc. 15-17) 2
28 NUT EXP10-32 (5 per pack) 7
29 SNAP CAP W/WASHER (10 per pack) 7
30 SCREW MACH-PHTRH-10-32X5/8-ZY (5 per pack) 6
31 WINDSHIELD EX HIGH W/HOLES 1
32 RIVETPLASTIC - 6.0 MM DIA (5 per pack) 1
33 SCREWSELF TAP-TSTH 10-12X1/2 WO/GP (10 per pack) 2
34 NUTSPEED-tahos_10B U TYPE (6 per pack) 2
35 FACIAFRONT-PTD DESERT RED Crim Red 1
36 RIVETPLASTIC-REINSTALLABLE (5 per pack) 2
37 SCREWSELF TAP-HWH M6 X 12 Z (TRI LOB) 2
38 WASHERLOCK-5/16 EXT TOOTH TYP A Z&Y (10 per pack) 2
39 NUTHEX FLG-NYL LOCK M6X1.0 CL8 Z&Y (5 per pack) 2
40 SCREWSHOULDER TSTRH M6X1.0X25 Z&Y (4 per pack) 2
41 BUMPERFRONT W/REFLECTORS (inc. 31) 1
42 DECALREFLECTOR-AMBER RH 1
42 DECALREFLECTOR-AMBER LH 1
43 SCREWCAP-HFH M10X1.25X25 CL8.8 Z&Y 2
44 NUTHEX FLG-NYL LOCK M10X1.25 CL8 Z&Y (4 per pack) 2
