Arctic Cat F8 EXT SNO PRO GREEN F8 EXT SNO PRO GREEN DRIVE TRAIN SHAFT AND BRAKE ASSEMBLIES

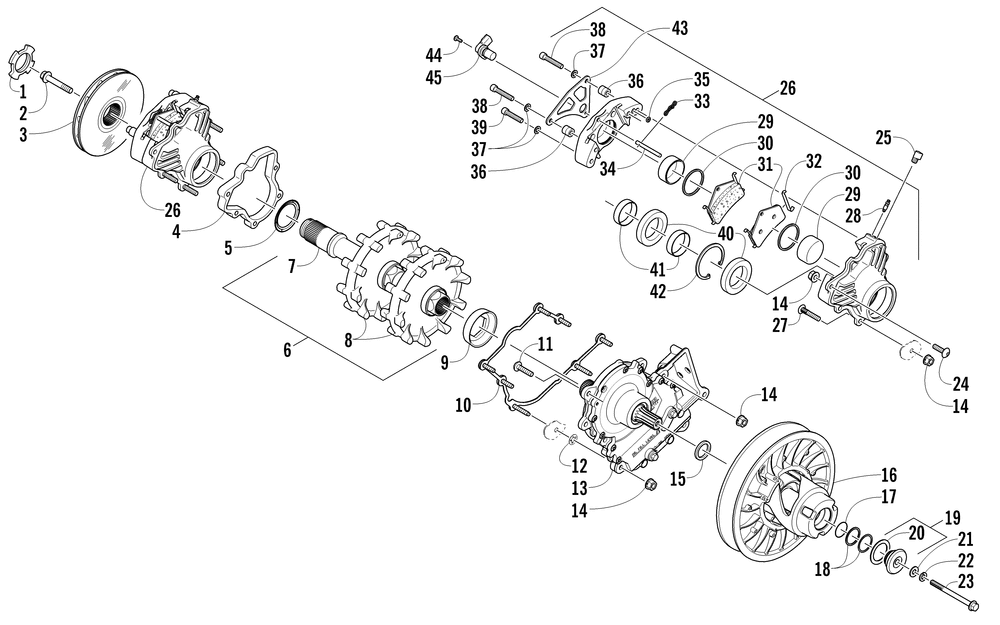

DRIVE TRAIN SHAFT AND BRAKE ASSEMBLIES
№ Наименование Примечание Кол-во
1 NUTRETAINING-SHAFT 1
2 SCREWCAP-HFH-7/16-14X1 3/4 GR8 W/2353 1
3 BRAKEDISC-ACT DRIVE 1
4 SPACER BRAKE 1
5 SHIELDBEARING-CALIPER 1
6 TRACK DRIVEASSY-(ACT) (inc. 7-8) 1
7 SHAFTDRIVE W/RETAINER-ASSY 1
8 SPROCKETDRIVE-10T-45MM HEX 2
9 SEALSLINGER-TRACK SHAFT 1
10 PLATEMTG-REVERSE ACT DRIVE-PTD BLK 1
11 SCREWMACH-TSTRH M8X1.25X30 Z&Y (3 per pack) 1
12 RETAINERPUSHNUT-5/16" (6 per pack) 7
13 GEARCASEDRIVE-FWD "F" 62/58 5P ASSY 1
14 NUTHEX FLG-NYL LOCK M8X1.25 CL8 Z&Y 13
15 WASHERFLAT-1.188 X 1.730 X .030 (5 per pack) 0
15 WASHERFLAT-1.188 X 1.730 X .060 (5 per pack) 0
16 CLUTCHDRIVEN-10.4(44/40N/ORN) 1
17 O-RINGADJUSTER SHEAVE (2-121) 1
18 WASHER DRIVEN .090 THICK 0
18 WASHER DRIVEN .030 THICK (2 per pack) 0
18 WASHER DRIVEN .060 THICK 0
19 KITADJUSTER-SHEAVE W/WASHER (inc. 18) 1
20 WASHERTHRUST-DRIVEN ADJUSTER 1
21 WASHERFLAT-.875X.400X.156 Z&Y (2 per pack) 1
22 WASHERSPR LOCK-3/8 .377X.680X.094 Z&Y (20 per pack) 1
23 SCREWCAP-HFH 3/8-16X4.50 GR8-VENTED 1
24 SCREWMACH-TSTRH M8X1.25X45 Z&BLK (4 per pack) 1
25 FITTINGINLET-90 DEG 3/8-24 1
26 CALIPERBRAKE-METRIC-S/P ASSY (inc. 20-37) 1
27 BOLTRIBBED CARR-M8 X 1.25 X 45 4
28 FITTINGBLEED SCREW INSERT-1/4-28 1
29 PISTONSTAINLESS-1.93X.79 2
30 O-RINGSQUARE-PISTON 2
31 KITBRAKE PAD (inc. 26-27) 2
32 CLIP ANTI-RATTLE 4
33 CLIPRETAINING-HAIRPIN 1
34 PINPAD RETAINER 1
35 O-RINGBRAKE HOUSING 1
36 SPACERSPEEDO BRKT 2
37 WASHER-HYD BRAKE 4
38 BOLTSHCS 5/16-18 UNC-2A 3.00 LG (2 per pack) 2
39 BOLTSHCS 5/16-18 UNC-2A 2.00 LG 2
40 BEARING45MM X 68MM X 12MM 2
41 SLEEVESHAFT 2
42 RINGRETAINING-2.98 1
43 PLATEMOUNTING-SPEED SENSOR 1
44 SCREWMACH-TSPNH M6X1.0X16 CL8.8 W/2353 (4 per pack) 1
45 SENSORSPEEDO- MX 1
