Arctic Cat F8 LXR GREEN F8 LXR GREEN HOOD WINDSHIELD AND FRONT BUMPER ASSEMBLY

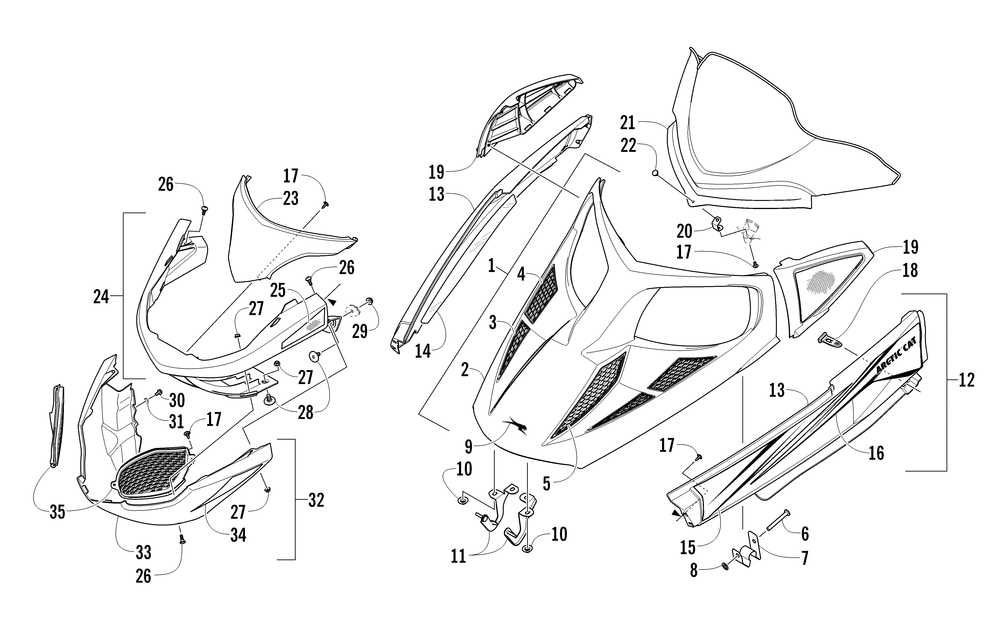

HOOD WINDSHIELD AND FRONT BUMPER ASSEMBLY
№ Наименование Примечание Кол-во
1 LIDHOOD-BLK PTD CLEAR- W/DECALS Black (inc. 2-9) 1
2 LIDHOOD-BLK PTD CLR-MFG ASSY Black (inc. 3-8) 1
3 VENTHOOD-OUTER FRONT-RH-MOLD BLK Black 1
3 VENTHOOD-OUTER FRONT-LH-MOLD BLK Black 1
4 VENTHOOD-OUTER-REAR RH-MOLD BLK Black 1
4 VENTHOOD-OUTER-REAR LH-MOLD BLK Black 1
5 VENTHOOD LID-INNER-RH-MOLD BLK Black 1
5 VENTHOOD LID-INNER-LH-MOLD BLK Black 1
6 PINRETAINING-HOOD (2 per pack) 2
7 CLIPHOLDDOWN-HOOD LID-LH-PTD BLK 1
7 CLIPHOLDDOWN-HOOD LID-RH-PTD BLK 1
8 RETAINERPUSHNUT-1/4 (5 per pack) 2
9 DECALAIRCAT-DYMOFLEX CHROME 1
10 NUTSTAMPED- 0.330 (4 per pack) 4
11 BRKTLID HINGE-LH-PTD BLK 1
11 BRKTLID HINGE- RH-PTD BLK 1
12 SPARFRONT LH-BLK/CLR-W/DECALS (GRN LXR) Black (inc. 13 and 15-16) 1
12 SPARFRONT RH-BLK/CLR-W/DECALS (GRN LXR) Black (inc. 13-16) 1
13 SPARFRONT BLK-RH-PTD CLEAR Black 1
13 SPARFRONT BLK-LH-PTD CLEAR Black 1
14 FOILRH SPAR-BOTTOM 1
15 DECALFRT SPAR-FORWARD-GRN RH 1
15 DECALFRT SPAR-FORWARD-GRN LH 1
16 DECALFRONT SPAR-REAR-RH 1
16 DECALFRONT SPAR-REAR-LH 1
17 SCREWSELF TAP-TXSTRH tahos_10-12X5/8 TP A BL (5 per pack) 11
18 STRAPHOLDDOWN-STORAGE BOX LID 2
19 BEZELINTAKE-RH BLK PTD CLEAR-ASSY Black 1
19 BEZELINTAKE-LH BLK PTD CLEAR-ASSY Black 1
20 BRKTHOLDDOWN-WINDSHIELD 1
21 WINDSHIELDMID 1
22 RIVETPLASTIC - 6.0 MM DIA (5 per pack) 1
23 FACIABUMPER-UPPER-BLK PTD CLEAR Black 1
24 BUMPERFRONT CLIP-GRN PTD CLR W/ REFL Green (inc. 24) 1
25 DECALREFLECTOR-AMBER RH 1
25 DECALREFLECTOR-AMBER LH 1
26 SCREW SHOULDER-M6-1.0 X 18-BLK (4 per pack) 4
27 NUTHEX FLG-NYL LOCK M6X1.0 CL8 Z&Y (5 per pack) 6
28 SCREWSHOULDER TSTRH M6X1.0X25 Z&Y (4 per pack) 4
29 NUTHEX-FLG M6X1.0 CL8 Z&Y (4 per pack) 2
30 SCREWSELF TAP-HWH M6 X 12 Z (TRI LOB) 2
31 WASHERLOCK-5/16 EXT TOOTH TYP A Z&Y (10 per pack) 2
32 FACIA BUMPER-LWR-GRN-W/DECALS Green (inc. 33-34) 1
33 FACIABUMPER-LWR-MOLD BLK Green 1
34 DECALLWR FIA-FRT BUMPER-RH 1
34 DECALLWR FIA-FRT BUMPER-LH 1
35 VENTBUMPER-LH-MOLD BLK 1
35 VENTBUMPER-RH-MOLD BLK 1
