Arctic Cat ARCTIC CAT SNO PRO 600 CROSS COUNTRY GREEN ARCTIC CAT SNO PRO 600 CROSS COUNTRY GREEN REAR SUSPENSION REAR ARM SHOCK ABSORBER

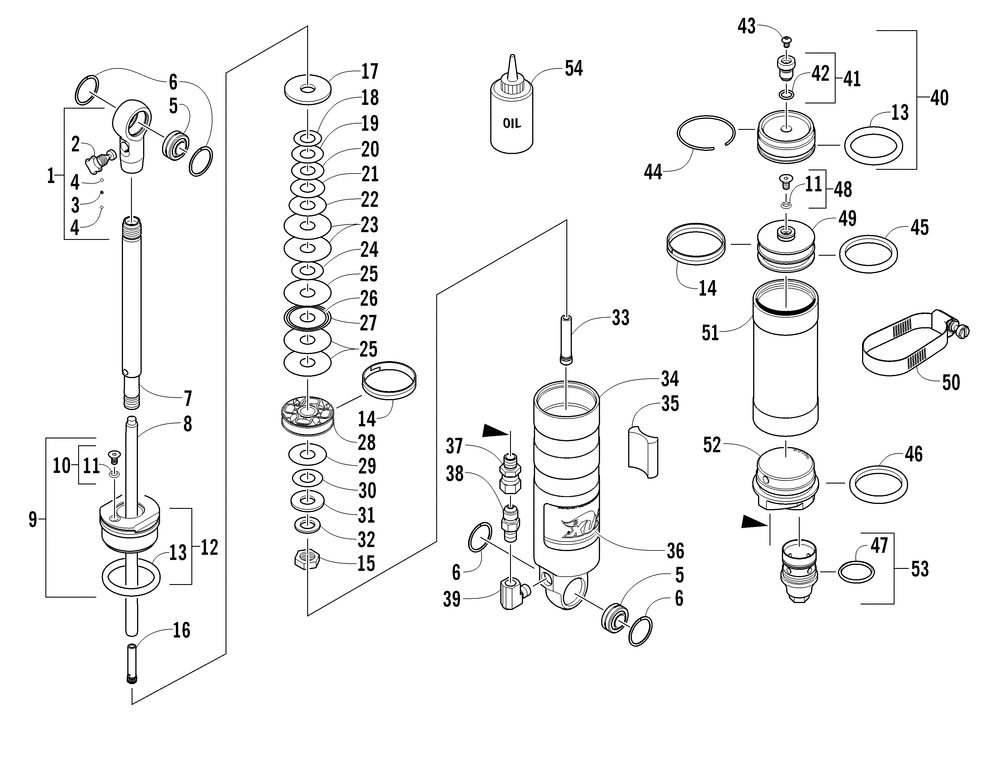

REAR SUSPENSION REAR ARM SHOCK ABSORBER
№ Наименование Примечание Кол-во
SHOCKREAR ARM-FOX(CROSS COUNTRY) 1
1 EYELETW/REBOUND ADJUST-ASSY (inc. 2-4) 1
2 KNOBDAMPING ADJUST-.620 SHAFT1.150 TLG 1
3 SPRING.125TLG X .125OD X 50 LB/IN 1
4 BALL BLEED 2
5 BEARINGSPHERICAL 2
6 RETAINING RINGINTERNAL SPIRAL 4
7 SHAFT.187ID X .620OD X 7.565 LGTH 1
8 RODDAMPING ADJUST-.175 OD X 5.675" 1
9 KITREBUILD-REAR SHOCK 1
10 SCREWMACH-HSFH 10-24X.375 SS-ASSY (2 per pack) 1
11 O-RING(FOX ONLY) 2
12 BEARING ASSY1.834 BORE.620SHAFT-1.210 (inc. 10) Included in Shock Absorber Rebuild Kit (p/n 3604-162) but may be purchased separately. Note: Shaft seals and scrapers can only be purchased as a bearing assembly. 1
13 O-RING RES ENDCAP Included in Shock Absorber Rebuild Kit (p/n 3604-162) but may be purchased separately. Note: Shaft seals and scrapers can only be purchased as a bearing assembly. 2
14 STRAP PISTON - RES 2
15 NUTPISTON 1
16 NEEDLEDAMPING ADJUST-W/O-RING 1
17 WASHER TOPOUT-1.570OD X .500ID X .128TH 1
18 VALVE.800 OD X .504 ID X .004 TH 1
19 VALVE.950 OD X .504 ID X .008 TH 1
20 VALVE1.100 OD X .504 ID X .008 TH 1
21 VALVE1.350 OD X .504 ID X .008 TH 1
22 VALVE1.425 OD X .504 ID X .008 TH 1
23 VALVE1.600 OD X .504 ID X .010 TH 2
24 VALVE.950 OD X .504 ID X .010 TH 1
25 VALVE1.600 OD X .504 ID X .008 TH 3
26 VALVE1.425 OD X .504 ID X .006 TH 1
27 VALVERING SHIM-1.600ODX1.435IDX.012THK 1
28 PISTONDAMPING-NO BLEED 1.834 BORE-0/0 1
29 VALVE1.425 OD X .504 ID X .012 TH 1
30 VALVE1.000 OD X .504 ID X .004 TH 1
31 WASHERTOP OUT-1.40 X .504 X.080 GROUND 1
32 WASHERBACKUP-.750 OD X .503 ID X .100TH 1
33 VALVECHECK-ASSY 1
34 BODYALUM-W/ BODY & EYELET GROOVES 1
35 SPACERBODY/RESERVOIR-1.401X.535X1.950 1
36 DECALSHOCK BODY-ZERO PRO-6.250X1.750 1
37 ADAPTORSTRAIGHT-1/8-27 MNPT (inc. one No. 24) 1
38 FITTINGADAPTER-1/8-27 MNPT- 1.22TLG 1
39 FITTINGELBOW-90DEG 1/8-27NPTF 1
40 END CAPRESERVOIR-ASSY 1.834 BORE 1
41 VALVEPRESSURE-ASS'Y (inc. 27) 1
42 O-RING-END CAP FITTING(FOX ONLY) 1
43 SCREW MACH HSBH tahos_8-32X.25 (SS) 1
44 RETAINER .062X1.850 ID ENDCAP 1
45 KITREBUILD-1.834" BORE-RESERVOIR (inc. 32-36 and 42-44) 1
46 O-RING.103 CS X 1.737 ID 1
47 O-RING.070 CS X .989 ID Included in Reservoir Rebuild Kit (p/n 3604-177) but may be purchased separately. 1
48 SCREW RELIEF W/ O-RING 1
49 PISTONINTERNAL FLOATING-ASSY 1
50 CLAMPHOSE-RESERVOIR-tahos_52 2
51 RESERVOIR1.834 BORE X 4.00 TLG 1
52 ADJUSTDAMPING-CD HOUSING-ASSY-1.834 BOR 1
53 ADJUSTDAMPING-ASSY W/CD PLUG (inc. 36) 1
54 SEMI-SYN SHOCK OIL-1 QUART (6 per pack) 0
