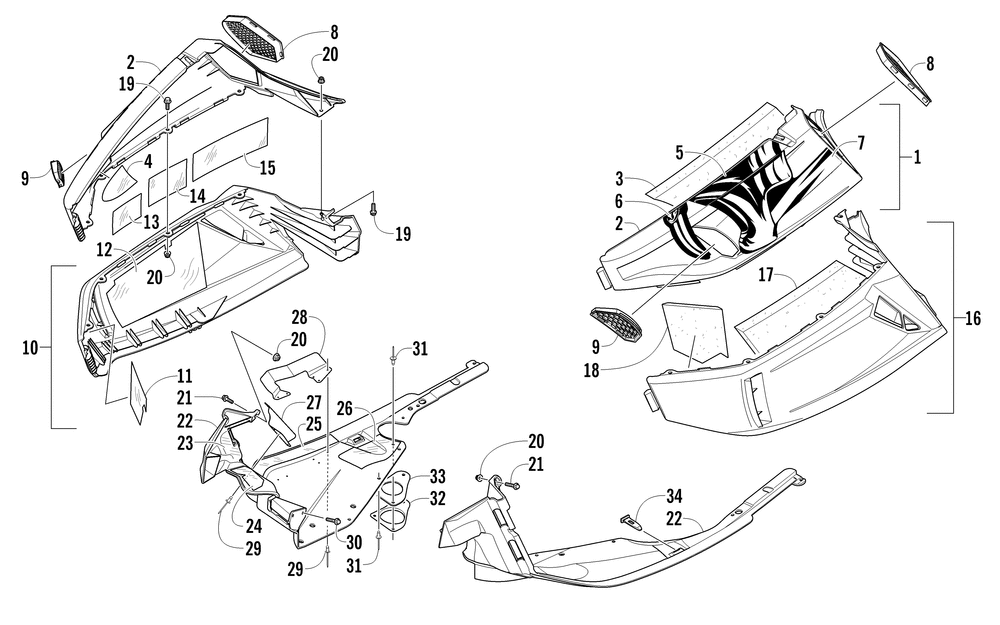

Arctic Cat Z1 SNO PRO ORANGE Z1 SNO PRO ORANGE SKID PLATE AND SIDE PANEL ASSEMBLY
SKID PLATE AND SIDE PANEL ASSEMBLY
№ Наименование Примечание Кол-во
1 PANELSIDE-UPPER LH W/DECALS-BLK/CLR Black (inc. 2-3 and 5-7) 1
1 PANELSIDE-UPPER RH W/DECALS-BLK/CLR Black (inc. 2 and 4-7) 1
2 PANELSIDE-UPPER LH W/O DECALS-BLK/CLR Black (inc. 3) 1
2 PANELSIDE-UPPER RH W/O DECALS-BLK/CLR Black (inc. 4) 1
3 FOAMUPR SIDE PANEL-LH 1
4 KITUPDATE-PROT FOIL 1
5 DECALUPR PANEL-UPR-SP LH 1
5 DECALUPR PANEL-UPR-SP RH 1
6 DECALUPR PANEL-FWD-SP RH 1
6 DECALUPR PANEL-FWD-SP LH 1
7 DECALUPR PANEL-CENTER ORN LH 1
7 DECALUPR PANEL-CENTER ORN RH 1
8 VENTUPR PANEL-REAR RH-MOLD BLK 1
8 VENTUPR PANEL-REAR LH-MOLD BLK 1
9 VENTUPR PANEL-RH HONEYCOMB-MOLD BLK 1
9 VENTUPR PANEL-LH HONEYCOMB-MOLD BLK 1
10 PANELSIDE-LWR RH W/O DECALS-BLK (inc. 9-10) 1
11 FOILPROTECTIVE-RH SIDE PANEL-LWR FRT 1
12 FOILPROTECTIVE-RH SIDE PANEL-LWR REAR 1
13 FOILPROTECTIVE-127X191 1
14 FOILPROTECTIVE-102X152 1
15 FOILPROTECTIVE-127X343 1
16 PANELSIDE-LWR LH W/O DECALS-BLK (inc. 10-11) 1
17 FOAMLWR SIDE PANEL- REAR LH (19mm THK) 1
18 FOAMLWR SIDE PANEL-FRT LH(19mm THK) 1
19 SCREWCAP-HFH M6X1.0X20 CL8.8 Z&Y (4 per pack) 10
20 NUTHEX FLG-NYL LOCK M6X1.0 CL8 Z&Y (5 per pack) 12
21 SCREWCAP-HFH M6X1.0X35 CL8.8 Z&Y (5 per pack) 2
22 PLATE SKID-LH-BLK-ROUTED-F/C 1
22 PLATESKID-BLK RH-ROUTED 1
23 FOILRH SKID PLATE-HINGE 1
24 FOILPROTECTIVE-RH SKID PLATE-UPR FRT 1
25 FOILPROTECTIVE-RH SKID PLATE-OUTER 1
26 FOILPROTECTIVE-RH SKID PLATE-CENTER 1
27 SHIELDHEAT-HINGE 1
28 SHIELDHEAT-SKID PLATE-RH 1
29 RIVETBLIND-LF SS54 BLACK (10 per pack) 8
30 SCREWSELF TAP-HWH M6 X 12 Z (TRI LOB) 4
31 RIVET BLIND-LF SS66 BLACK (10 per pack) 12
32 SHIELDHEAT-EXHAUST OUTLET-PTD 1
33 SEALEXHAUST-OUTLET-4 STRK 1
34 STRAPHOLDDOWN-STORAGE BOX LID 2
