HOOD WINDSHIELD AND FRONT BUMPER ASSEMBLY

Корзина пуста
Arctic Cat Z1 SNO PRO ORANGE Z1 SNO PRO ORANGE HOOD WINDSHIELD AND FRONT BUMPER ASSEMBLY

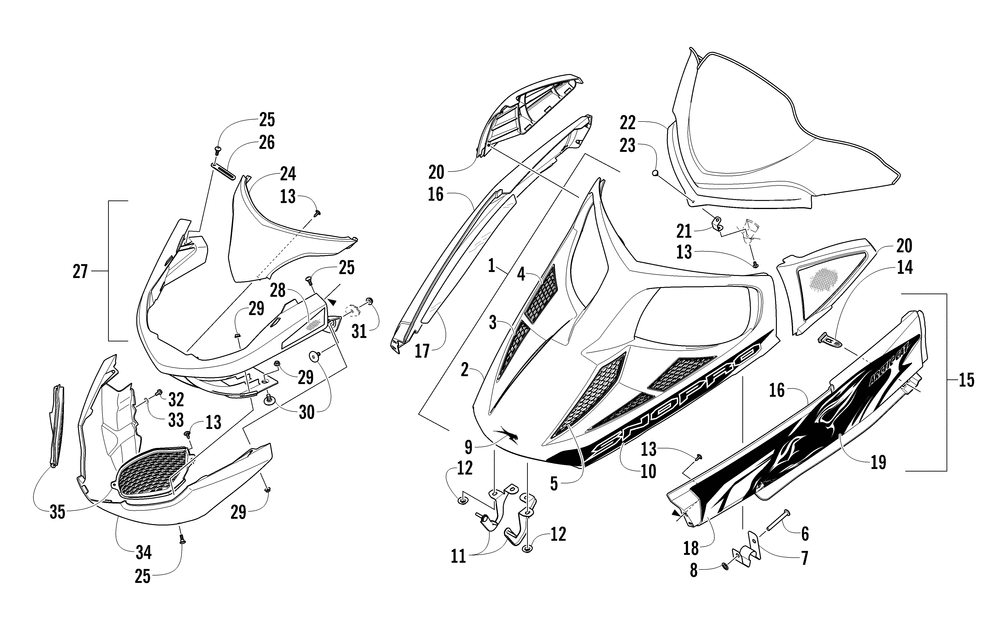

HOOD WINDSHIELD AND FRONT BUMPER ASSEMBLY
№ Наименование Примечание Кол-во
1 LIDHOOD-ORN PTD CLEAR- W/DECALS Orange (inc. 2-10) 1
2 LID HOOD-ORN PTD CLEAR-MFG ASSY Orange (inc. 3-8) 1
3 VENTHOOD-OUTER FRONT-RH-MOLD BLK Black 1
3 VENTHOOD-OUTER FRONT-LH-MOLD BLK Black 1
4 VENTHOOD-OUTER-REAR RH-MOLD BLK Black 1
4 VENTHOOD-OUTER-REAR LH-MOLD BLK Black 1
5 VENTHOOD LID-INNER-RH-MOLD BLK Black 1
5 VENTHOOD LID-INNER-LH-MOLD BLK Black 1
6 PINRETAINING-HOOD (2 per pack) 2
7 CLIPHOLDDOWN-HOOD LID-LH-PTD BLK 1
7 CLIPHOLDDOWN-HOOD LID-RH-PTD BLK 1
8 RETAINERPUSHNUT-1/4 (5 per pack) 2
9 DECALAIRCAT-DYMOFLEX CHROME 1
10 DECALHOOD LID-RH-"SNO PRO" 1
10 DECALHOOD LID-LH-"SNO PRO" 1
11 BRKTLID HINGE-LH-PTD BLK 1
11 BRKTLID HINGE- RH-PTD BLK 1
12 NUTSTAMPED- 0.330 (4 per pack) 4
13 SCREWSELF TAP-TXSTRH tahos_10-12X5/8 TP A BL (5 per pack) 11
14 STRAPHOLDDOWN-STORAGE BOX LID 2
15 SPARFRONT RH-BLK/CLR-W/DECALS (ORN SP) Black (inc. 16-19) 1
15 SPARFRONT LH-BLK/CLR-W/DECALS (ORN SP) Black (inc. 16 and 18-19) 1
16 SPARFRONT BLK-LH-PTD CLEAR Black 1
16 SPARFRONT BLK-RH-PTD CLEAR Black 1
17 FOILRH SPAR-BOTTOM 1
18 DECALFRT SPAR-FORWARD-ORN RH 1
18 DECALFRT SPAR-FORWARD-ORN LH 1
19 DECALFRONT SPAR-REAR-ORN RH 1
19 DECALFRONT SPAR-REAR-ORN LH 1
20 BEZELINTAKE-RH ORN PTD CLEAR-ASSY Orange 1
20 BEZELINTAKE-LH ORN PTD CLEAR-ASSY Orange 1
21 BRKTHOLDDOWN-WINDSHIELD 1
22 WINDSHIELDEXTREME LOW-FLAT BACK 1
23 RIVETPLASTIC - 6.0 MM DIA (5 per pack) 1
24 FACIABUMPER-UPPER-BLK PTD CLEAR Black 1
25 SCREW SHOULDER-M6-1.0 X 18-BLK (4 per pack) 4
26 CLAMPWIRE - 76.14MM LG W/6.25 HOLE (2 per pack) 1
27 BUMPERFRONT CLIP-ORN PTD CLR W/ REFL Orange (inc. 24) 1
28 DECALREFLECTOR-AMBER RH 1
28 DECALREFLECTOR-AMBER LH 1
29 NUTHEX FLG-NYL LOCK M6X1.0 CL8 Z&Y (5 per pack) 6
30 SCREWSHOULDER TSTRH M6X1.0X25 Z&Y (4 per pack) 4
31 NUTHEX-FLG M6X1.0 CL8 Z&Y (4 per pack) 2
32 SCREWSELF TAP-HWH M6 X 12 Z (TRI LOB) 2
33 WASHERLOCK-5/16 EXT TOOTH TYP A Z&Y (10 per pack) 2
34 FACIABUMPER-LWR-MOLD ORN Orange 1
35 VENTBUMPER-LH-MOLD BLK 1
35 VENTBUMPER-RH-MOLD BLK 1
