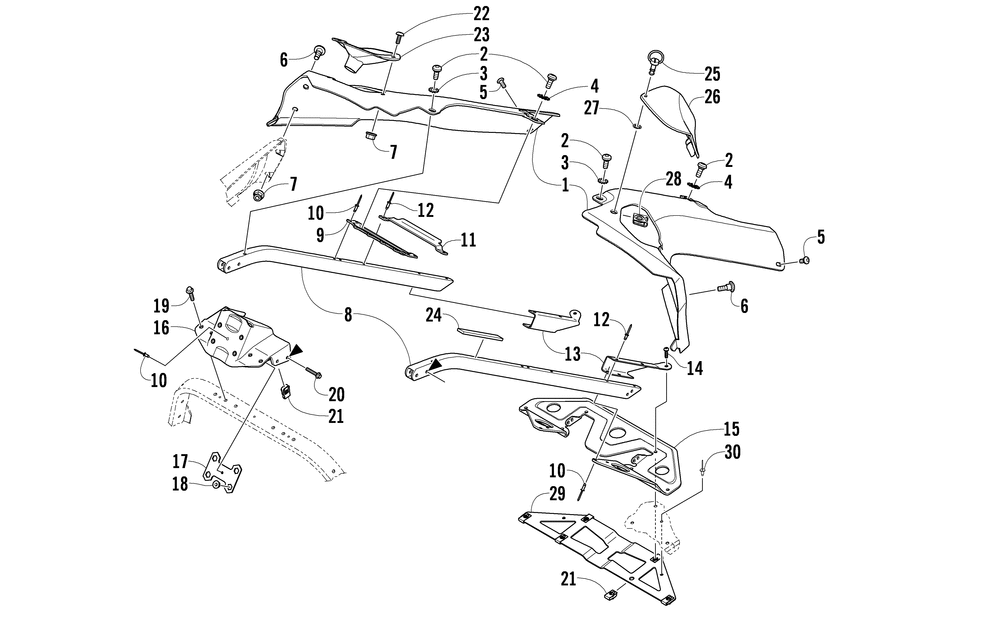

SEAT SUPPORT ASSEMBLY

№	Наименование	Кол-во
1	SPARREAR-RH W/RECOIL-F/C RTD-BLACK	1
1	SPARREAR-LH W/OIL FILL-F/C RTD-BLACK	1
2	SCREWSELF TAP-TSPH M6-1.0X15 (2 per pack)	4
3	WASHERLOCK-1/4 EXT TOOTH TYP A Z&Y (5 per pack)	2
4	WASHERLOCK-5/16 EXT TOOTH TYP A Z&Y (10 per pack)	2
5	SCREWMACH-TSPNH M5X.8X10 CL8.8 Z&Y (5 per pack)	2
6	SCREW SHOULDER-M6-1.0 X 18-BLK (4 per pack)	4
7	NUTHEX FLG-NYL LOCK M6X1.0 CL8 Z&Y (5 per pack)	6
8	TUBESUPPORT-NON ADJUST-LH MACH	1
8	TUBESUPPORT-NON-ADJUST-RH	1
9	BRKTCROSSOVER	1
10	RIVETBLIND-DH SS56 ZINC (10 per pack)	9
11	BRKTCROSSOVER	1
12	RIVET BLIND-DH SS53 ZINC (10 per pack)	10
13	BRKTNON-ADJUST-SEATBASE LH	1
13	BRKTNON-ADJUST-SEATBASE RH	1
14	SCREWMACH-TSPNH M5X.8X20 CL8.8 Z&Y (4 per pack)	6
15	PLATESUPPORT-LOWER	1
16	BRKTSUPPORT-UPPER-SPR-FABR	1
17	BRKTNUT HOLDER	1
18	NUTHEX-FLG M6X1.0 CL8 Z&Y (4 per pack)	4
19	SCREWCAP-HFH M6X1.0X25 CL8.8 Z&Y	4
20	SCREW CAP-HFH M5X0.8X35 CL8.8 Z&Y (4 per pack)	4
21	CLIPU-NUT (M5) (4 per pack)	10
22	SCREWMACH-TSTRH-M6-1.0 X 16 BLACK (5 per pack)	2
23	CUP RECOIL-W/INSERT	1
24	BUMPER FUEL TANK	1
25	STUD 1/4 TURN-9.8MM	1
26	COVERACCESS-OIL TANK-BLACK	1
27	RETAINER RING-SPLIT (4 per pack)	1
28	CLIP RECEPTACLE-1/4 TURN STUD	1
29	PLATE BRACE-LOWER-MFG ASSY-NON-ADJUST (inc. six No. 28)	1
30	RIVETBLIND-DH SS64 ZINC (10 per pack)	2
