Arctic Cat 600 SNO PRO GREEN 600 SNO PRO GREEN REAR SUSPENSION FRONT ARM SHOCK ABSORBER

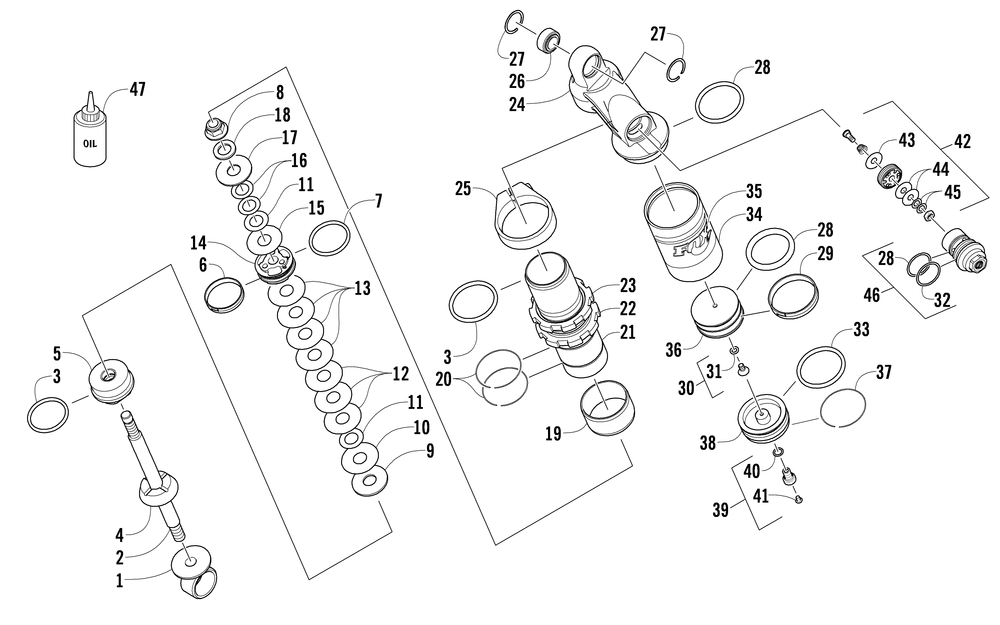

REAR SUSPENSION FRONT ARM SHOCK ABSORBER
№ Наименование Примечание Кол-во
SHOCKFRT ARM-FOX (SNO CROSS) 1
1 EYELETSHOCK-.700 W X 1.005 ID 1
2 SHAFTSHOCK-.498 X 6.660" TLG 1
3 KITREBUILD-.498 SHAFT (inc. 4-8) 1
4 BUMPERSHOCK-.450 ID X .400 TLG 1
5 BEARINGENDCAP -.498" X .960"-ASSY 1
6 STRAPPISTON-(STEP)-TURCITE Included in Shock Absorber Rebuild Kit (p/n 3604-166) but may be purchased separately. Note: Shaft seals and scrapers can only be purchased as a bearing assembly. 1
7 O-RING-25MM ID X 1.5 MM CS Included in Shock Absorber Rebuild Kit (p/n 3604-166) but may be purchased separately. Note: Shaft seals and scrapers can only be purchased as a bearing assembly. 1
8 NUTCAP-FOX SHOCK 1
9 WASHER TOP OUT-1.125OD X .378 ID X.093 1
10 VALVE1.300X.008(3/8ID) 1
11 VALVE .800X.006(3/8ID) 2
12 VALVE SHOCK 1.300 X.015(3/8ID) 3
13 VALVE SHOCK 1.300 X.012 4
14 PISTONDAMPING-1.459 BORE-.041 ORIFICE 1
15 VALVE1.100X.006(3/8ID) 1
16 VALVE .600X.004(3/8ID) 2
17 PLATETOP-OUT-1.125OD X .378ID X .080 1
18 WASHERBACKUP 1
19 GUIDESPRING-ALUM BODY 1
20 RETAINER.062 CS X 1.54 OD-WEAR SLEEVE 2
21 BODYSHOCK-W/GROOVES1.459 X 5.55" 1
22 RINGPRELOAD-2.40 OD X .600 TLG 1
23 RINGPRELOAD LOCK-2.40 OD X .300 TLG 1
24 BODYCAP-PIGGYBACK -102.5 DEG-ASSY (inc. 27-30) 1
25 CLAMPBODY CAP-1.90 ID X M5 1
26 BEARINGSPHERICAL-.875 OD X .375 W 1
27 RINGRETAINING-SPIRAL-.021"X.926" OD 2
28 KITREBUILD-1.834" BORE-RESERVOIR (inc. 32-36 and 42-44) 1
29 STRAP PISTON - RES 1
30 SCREW RELIEF W/ O-RING 1
31 O-RING(FOX ONLY) 1
32 O-RING.070 CS X .989 ID Included in Reservoir Rebuild Kit (p/n 3604-177) but may be purchased separately. 1
33 O-RING RES ENDCAP Included in Shock Absorber Rebuild Kit (p/n 3604-162) but may be purchased separately. Note: Shaft seals and scrapers can only be purchased as a bearing assembly. 1
34 RESERVOIR1.834 BORE X 3.25 TLG 1
35 DECALRESERVOIR-06 ZERO X 6.25 X 2.15 1
36 PISTONFLOATING-ASSY-1.834" BORE 1
37 RETAINER .062X1.850 ID ENDCAP 1
38 END CAPRESERVOIR-ASSY 1.834 BORE 1
39 VALVEPRESSURE-ASS'Y (inc. 27) 1
40 O-RING-END CAP FITTING(FOX ONLY) 1
41 SCREW MACH HSBH tahos_8-32X.25 (SS) 1
42 DAMPING ADJUST ASSYPISTON-CONCENTRIC AD (inc. 42-44) 1
43 VALVE .700X.008(3/8ID) 1
44 VALVESHOCK-.700 X.010(1/4ID) 2
45 WASHERBACKUP-.400OD X .252ID X .020THK 2
46 CARTRIDGESINGLE ADJ-DAMP ADJ ASSY 1
47 SEMI-SYN SHOCK OIL-1 QUART (6 per pack) 0
