Arctic Cat CFR1000 LE BLACK CFR1000 LE BLACK IDLER WHEEL ASSEMBLY

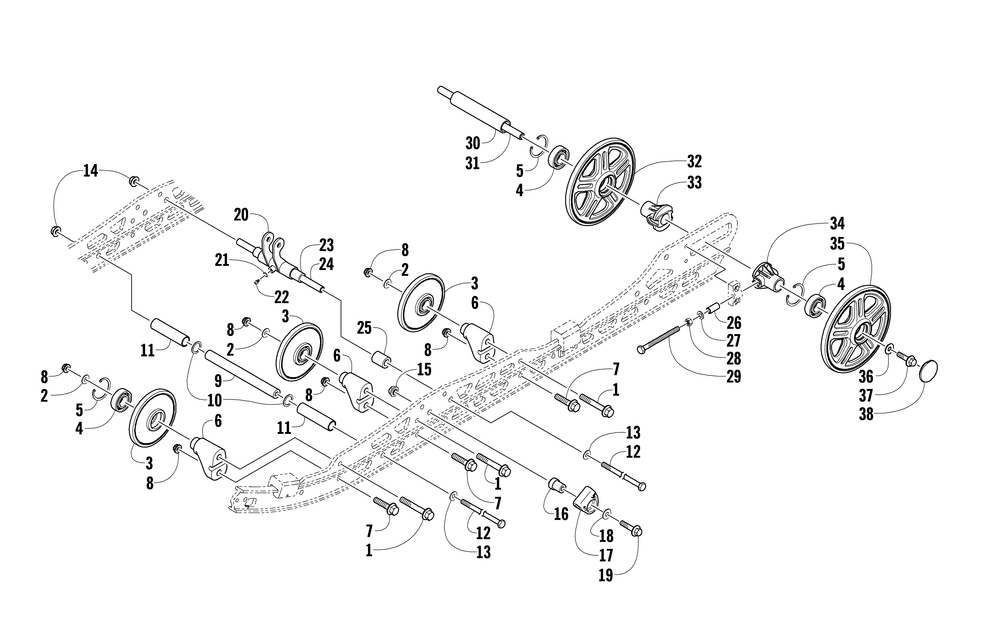

IDLER WHEEL ASSEMBLY
№ Наименование Примечание Кол-во
1 SCREWCAP-HFH 5/16-18 X 3.25 G5 Z&Y (2 per pack) 6
2 WASHERFLAT-M8-9.12 X 25.40 X 2.30Z&Y (8 per pack) 6
3 WHEELIDL-5.63 W.787"ID BLK (NO SPOKE) (inc. 5-6) 6
4 BEARINGWHL-NSK CHINA 6004-W/ENS GREASE 10
5 RINGINTERNAL RETAINING-tahos_165 10
6 BLOCKMTG-IDLER WHEEL(DIE CAST) 6
7 SCREWCAP-HFH 5/16-18 X 1.25 G5 Z&Y (5 per pack) 6
8 NUTHEX FLG-NY LOCK 5/16-18 GR F Z&Y (10 per pack) 12
9 AXLE ALUM-.875 DIA X 8.750 1
10 WASHERFLAT-.890 X 1.19 X .060 Z&Y (5 per pack) 2
11 SPACERFRONT ARM SHOCK 2
12 SCREW CAP-HH 3/8-16X10 GD 8 Z&Y (2 per pack) 2
13 WASHER FLAT .375X.625X.064 (5 per pack) 2
14 NUTHEX FLG-NY LOCK 3/8-16 GR G Z&Y (10 per pack) 2
15 NUTHEX FLG-NY LOCK 3/8-16 GR F Z&Y (5 per pack) 2
16 BLOCKSLIDE-SPRING-1.53" 2
17 SLIDE SPRING-SHORT (2 per pack) 2
18 WASHERFLAT- 3/8 X 1.000 X .063 Z&Y (10 per pack) 2
19 SCREWCAP-HFH 3/8-16 X 2.50 Z&Y (2 per pack) 2
20 PIVOTREAR SHOCK-FABR (inc. 22-24) 1
21 WASHER- GREASE FITTING (5 per pack) 1
22 FITGREASE-1/4-28 UNF-SELF THREAD (5 per pack) 1
23 BEARINGGARLOCK 10DU12 (4 per pack) 2
24 AXLESTEEL-8.75 (THRU BOLT) 1
25 SPACERALUM-2.805" 2
26 SPACERTRACK ADJUSTMENT 2
27 WASHERSPR LOCK-3/8 .377X.688X.115 Z&Y (30 per pack) 2
28 NUT3/8-16 HEX-REG-GR5 Z&Y (20 per pack) 2
29 SCREWCAP-HH 3/8-16X5.5 UNC GR 5 (2 per pack) 2
30 SPACERREAR WHEEL-CTR 1
31 AXLEREAR WHEEL-STEEL 12.622" 1
32 WHEELIDL-7.12 W.787"ID BLK(NO SPOKE) (inc. 5-6) 2
33 BUSHINGADJUSTER-4 WHL 2
34 BUSHINGADJUSTER-3 WHL-SHORT-MACH 2
35 WHEELIDL-7.12 W.787"ID BLK (inc. 5-6) 2
36 WASHERFLAT 1.00X.390X.164 Z&Y (5 per pack) 2
37 SCREWCAP-HFH 3/8-16X1.125 W/2353 (5 per pack) 2
38 CAPIDL WHL-BLACK 2
