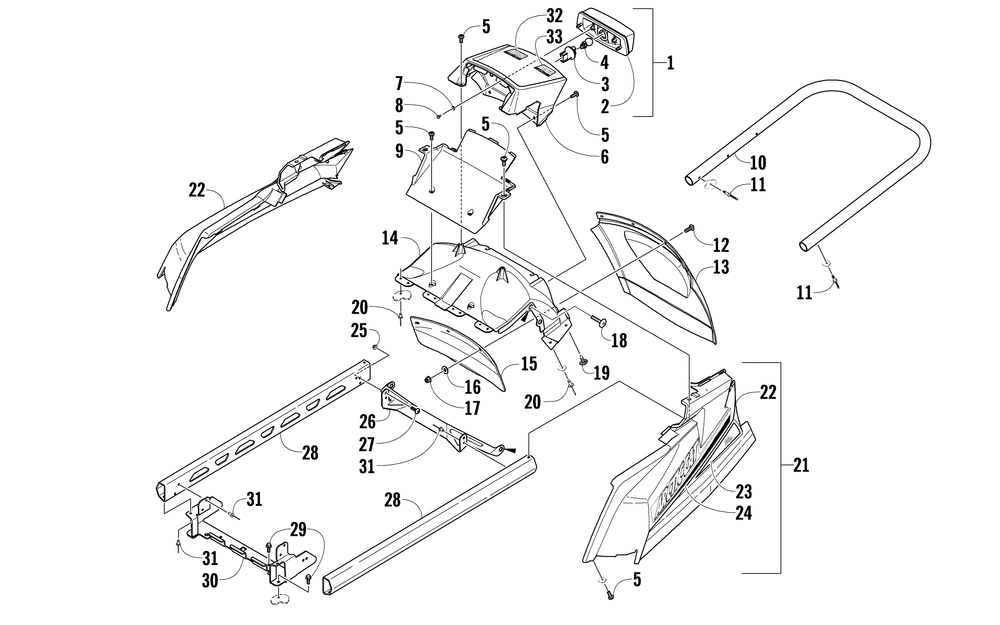

REAR BUMPER RACK RAIL SNOWFLAP AND TAILLIGHT ASSEMBLY

Arctic Cat T500 TOURING GREEN T500 TOURING GREEN REAR BUMPER RACK RAIL SNOWFLAP AND TAILLIGHT ASSEMBLY

№	Наименование	Кол-во
1	TAILLIGHTASSY (inc. 2-4)	1
2	HOUSINGTAIL LIGHT-ASSY	1
3	SOCKETTAIL LIGHT	1
4	BULBTAIL LIGHT-3157	1
5	SCREWPT THD-TSTRH K60-2.69X16MM RIE BLK (5 per pack)	10
6	HOOD TAILLIGHT-BLK	1
7	WASHERFLAT- tahos_8 X .375 X .049 Z&Y (20 per pack)	2
8	SCREWSELF TAP-HWH tahos_8X1/2 TYPE A (10 per pack)	2
9	PANEL TAILLIGHT ACCESS-MOLD BLK	1
10	BUMPER REAR-PTD PLATINUM-08 TOUR	1
11	RIVET3/16 HUCK-M6 (5 per pack)	12
12	SCREWMACH-TSTRH M6X1.0X20 RIE BLK (4 per pack)	4
13	SNOWFLAP BLK-W/8611-268	1
14	CLOSE-OFF TUNNEL-MOLD BLK	1
15	SUPPORTSNOWFLAP-INJ MOLD	1
16	WASHERFLAT 1/4 X 1.0 Z&Y (5 per pack)	4
17	NUTHEX FLG-NYL LOCK M6X1.0 CL8 Z&Y (5 per pack)	4
18	SCREW SELF TAPPING-M8X42 TRILOBE Z&Y (2 per pack)	4
19	SCREWSELF TAP-TSTRH tahos_10-12X3/4 TP A BLK (5 per pack)	2
20	RIVETBLIND-LF SS54 BLACK (10 per pack)	6
21	FENDER REAR-RH W/DECAL (inc. 22-24)	1
21	FENDER REAR-LH W/DECAL (inc. 22-24)	1
22	FENDERREAR-RH W/O DECAL (TOUR) (inc. 24)	1
22	FENDERREAR-LH W/O DECAL (TOUR) (inc. 24)	1
23	DECALREFLECTOR-RED-RH (TOUR)	1
23	DECALREFLECTOR-RED-LH (TOUR)	1
24	DECALFENDER-RH (TOUR)	1
24	DECALFENDER-LH (TOUR)	1
25	NUTHEX FLG-NYL LOCK M5X0.8 CL8 Z&Y (10 per pack)	2
26	MOUNT RAIL-REAR-PTD BLK	1
27	SCREWMACH-TSTRH M5X0.8X16 Z&Y (2 per pack)	2
28	RAIL RACK-MACH	2
29	SCREWCAP-HFH M6X1.0X20 CL8.8 Z&Y (4 per pack)	4
30	BRKT RAIL MOUNT-FRT-PTD BLK	1
31	RIVETBLIND-DH SS64 ZINC (10 per pack)	8
32	DECALWARNING-TOWING/TRACK-FRENCH	1
33	DECALWARNING-TOWING/TRACK-ENGLISH	1
