Arctic Cat TZ1 TURBO LXR BLACK TZ1 TURBO LXR BLACK HOOD WINDSHIELD AND FRONT BUMPER ASSEMBLY

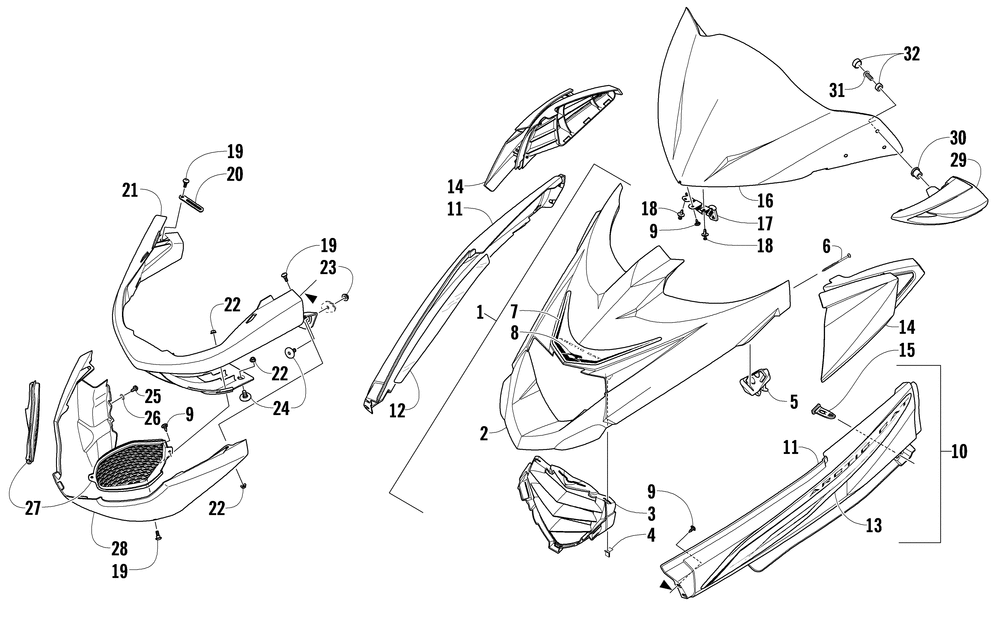

HOOD WINDSHIELD AND FRONT BUMPER ASSEMBLY
№ Наименование Примечание Кол-во
1 LIDHOOD-PTD BLK-W/DECALS TZ1 TURBO Black (inc. 2-8) 1
2 LID HOOD-PTD BLK-TURBO-MFG ASSY Black (inc. 3-6) 1
3 GRILLEINTERCOOLER-MOLD BLK Black 1
4 CLIPRETAINING-HOOD (10 per pack) 7
5 CLIPRUBBER-HOOD-HOLDDOWN-RH 1
5 CLIPRUBBER-HOOD-HOLDDOWN-LH 1
6 SCREWWOOD-TSFH-tahos_8-13X3.00" Z&Y (10 per pack) 2
7 DECALHOOD CREST-TURBO Z1 1
8 DECALAIRCAT-DYMOFLEX CHROME 1
9 SCREWSELF TAP-TXSTRH tahos_10-12X5/8 TP A BL (5 per pack) 11
10 SPARFRONT-RH-BLK-W/DECALS TZ1 TURBO (inc. 11-13) 1
10 SPARFRONT-LH-BLK-W/DECALS TZ1 TURBO (inc. 11 and 13) 1
11 SPARFRONT-LH-MOLD BLK Black 1
11 SPARFRONT-RH-MOLD BLK Black 1
12 FOILRH SPAR-BOTTOM 1
13 DECALFRT SPAR-RH-TURBO TZ1 1
13 DECALFRT SPAR-LH-TURBO TZ1 1
14 BEZELINTAKE-RH BLK-ASSY(TURBO) Black 1
14 BEZELINTAKE-LH BLK-ASSY(TURBO) Black 1
15 STRAPHOLDDOWN-STORAGE BOX LID 2
16 WINDSHIELD TURBO W/HOLES-MID BLK 1
17 BRKTWINDSHIELD-HOLDDOWN-PTD BLK 1
18 RIVETPLASTIC-REINSTALLABLE (5 per pack) 2
19 SCREW SHOULDER-M6-1.0 X 18-BLK (4 per pack) 4
20 CLAMPWIRE - 76.14MM LG W/6.25 HOLE (2 per pack) 1
21 BUMPERFRONT CLIP-MOLD BLK 1
22 NUTHEX FLG-NYL LOCK M6X1.0 CL8 Z&Y (5 per pack) 6
23 NUTHEX-FLG M6X1.0 CL8 Z&Y (4 per pack) 2
24 SCREWSHOULDER TSTRH M6X1.0X25 Z&Y (4 per pack) 4
25 SCREWSELF TAP-HWH M6 X 12 Z (TRI LOB) 2
26 WASHERLOCK-5/16 EXT TOOTH TYP A Z&Y (10 per pack) 2
27 VENTBUMPER-LH-MOLD BLK 1
27 VENTBUMPER-RH-MOLD BLK 1
28 FACIABUMPER-LWR-MOLD BLK Platinum 1
29 KITMIRROR(SINGLE)'08-BLK (inc. 15-17) 2
30 NUT EXP10-32 (5 per pack) 6
31 SCREW MACH-PHTRH-10-32X5/8-ZY (5 per pack) 6
32 SNAP CAP W/WASHER (10 per pack) 6
