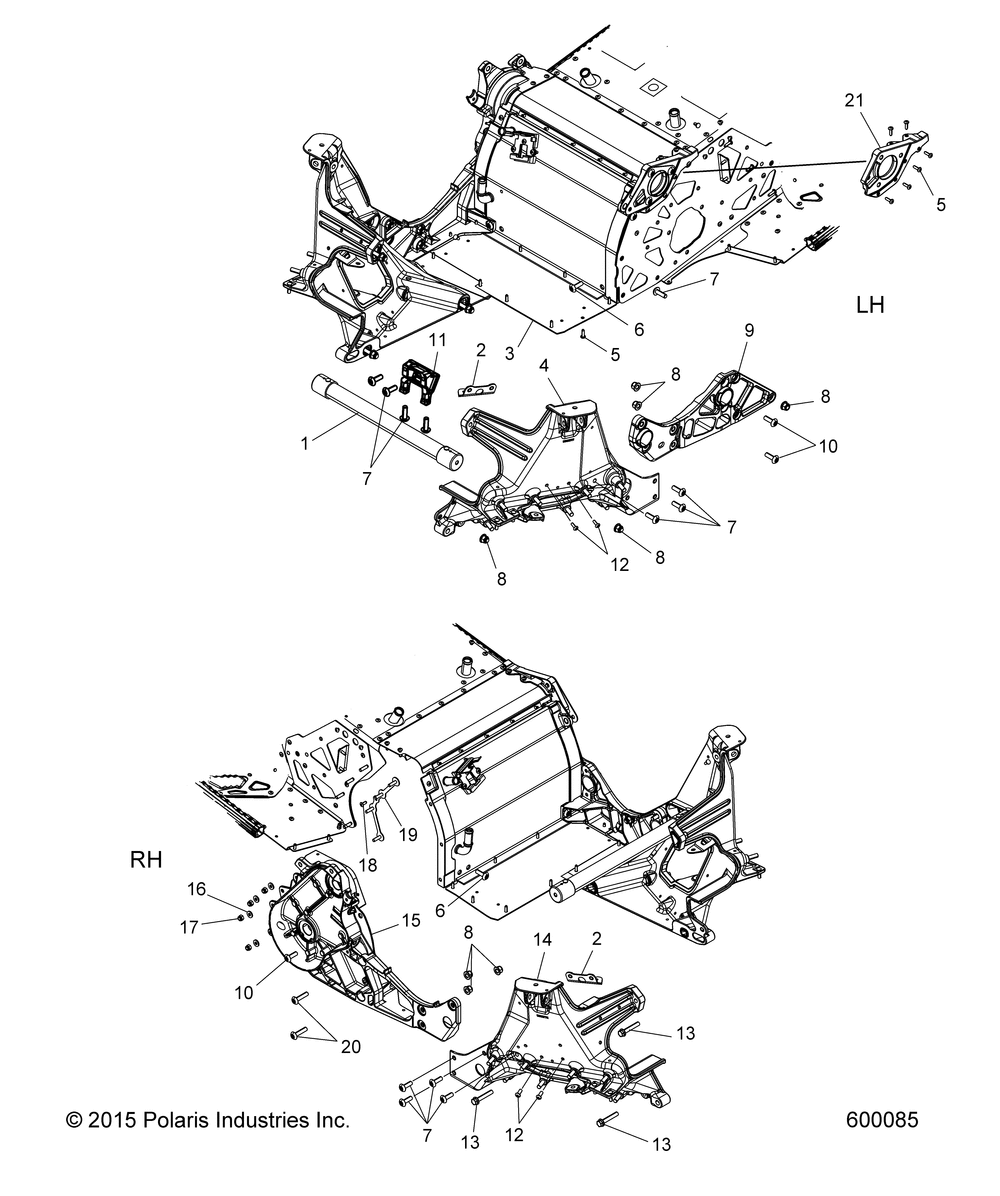

CHASSIS BULKHEAD ASM. - S17DCH6 ALL OPTIONS (600085)

№	Наименование	Кол-во
	KIT-LORD 406 REPAIR KIT 50ML [ADHESIVE]	1
	KIT-LORD MIX NOZZLES	1
	KIT-LORD 406 50ML CARTRIDGE [ADHESIVE]	1
1	ASM-TUBE CROSS UCA AL BONDED	1
2	ASM-BRKT IDLER TOP	2
3	FLOOR-BULKHEAD	1
4	STUD-WHEEL M8X1.25X48	7
4	ASM-CLIP W/STUD LH [INCL. STUDS][REQUIRES ADHESIVE]	1
5	RIVETINTERLOCKZ(50) * (50 per pack)	10
6	CL8.8 OLV-D	2
7	SCR-TXTH-M8X1.25X25 8.8 ZODP30	8
8	NUT-M8X1.25FLGNYLOC-OLIVE D	7
9	ASM-BRACE LOWER LH [REQUIRES ADHESIVE][INCL. SLEEVE]	1
11	MOUNT-STEERING LOWER MACH	1
12	BOLT-M6X1.0X15PH/TX-OLIVE D	4
13	SCREW(10) (10 per pack)	3
14	ASM-CLIP W/STUD RH [INCL. STUDS][REQUIRES ADHESIVE]	1
15	ASM-CHAINCASE INTERMD [REQUIRES ADHESIVE][INCL. BRNGS. SEALS]	1
16	WASHER-6.2X14.25X2 ZC	4
17	NUT-HEX-M6X1.0 8 ZOD NYL	4
18	RIVET-4.8MM DIA-1.5-6.0 GRIP	1
19	ASM-STUD PLATE M6X4	1
20	SCR-TXTH M8X1.25X35 8.8ZOD P80	2
21	MOUNT-JACKSHAFT BEARING MACH	1
