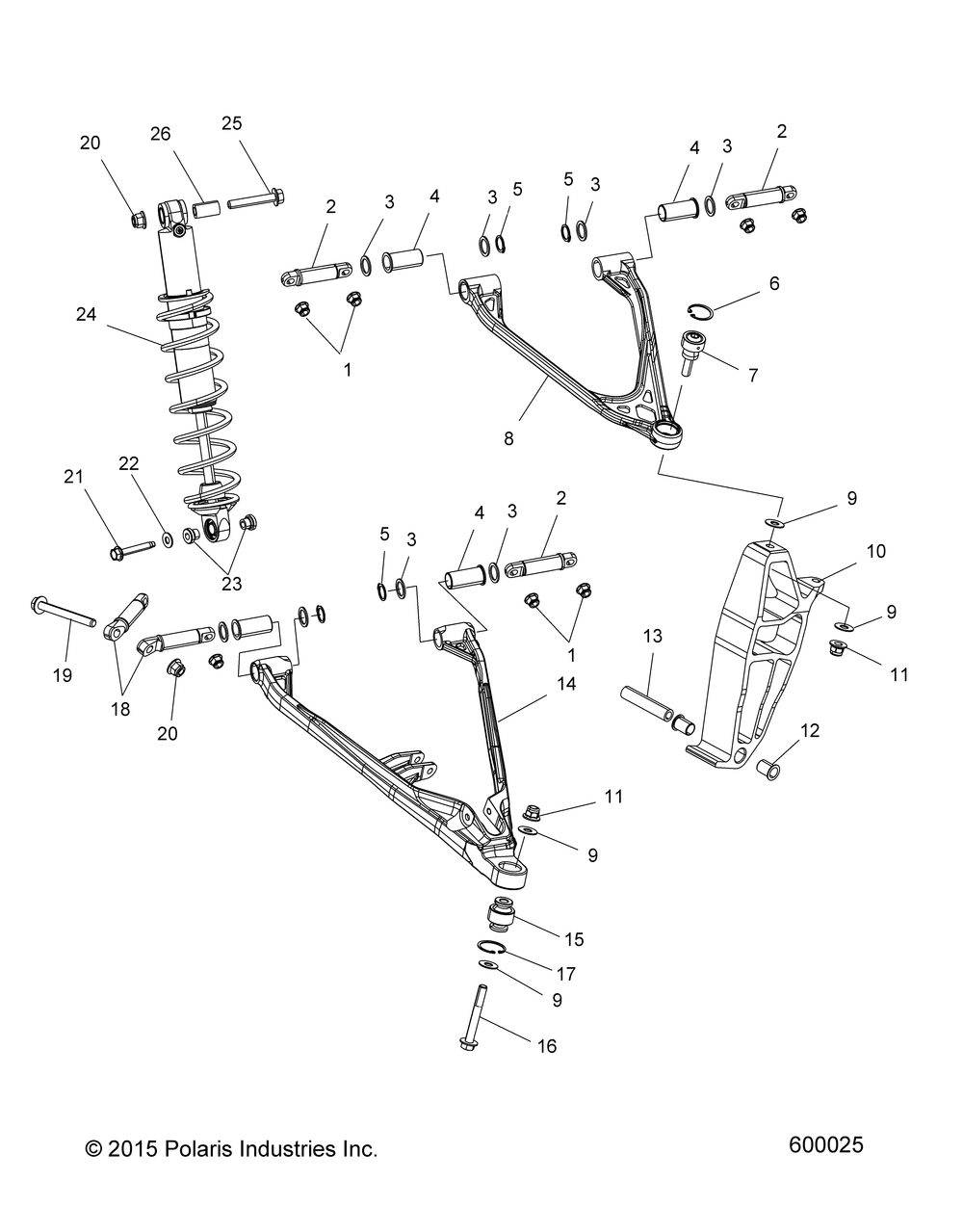

SUSPENSION CONTROL ARMS and SPINDLE - S17EFK6 ALL OPTIONS (600025)

Корзина пуста
Polaris S17EFK6 600 AXYS PRO RMK 155 ALL OPTIONS S17EFK6 600 AXYS PRO RMK 155 ALL OPTIONS SUSPENSION CONTROL ARMS and SPINDLE - S17EFK6 ALL OPTIONS (600025)
SUSPENSION CONTROL ARMS and SPINDLE - S17EFK6 ALL OPTIONS (600025)
№ Наименование Примечание Кол-во
1 NUT-M8X1.25FLGNYLOC-OLIVE D 14
2 SHAFT-PIVOT GROOVED 6
3 WSHR-18.35X25X1.575 THICK ZOD 16
4 BUSHING-PIVOT 8
5 RING-RETAINING18MM ID 8
6 RING-RET INT 1.125" 2
8 ASM-UCA RMK RH MBLK [INCL. 2-7] 1
8 ASM-UCA RMK LH MBLK [INCL. 2-7] 1
8 ASM-UCA RMK RH [INCL. 2-7] 1
8 ASM-UCA RMK LH NAT [INCL. 2-7] 1
9 WSHR-10.5X24X1.2446 ZOD 8
10 ASM-SPINDLE RMK LH BLK [INCL. 12] 1
10 ASM-SPINDLE RMK RH RED [INCL. 12] 1
10 ASM-SPINDLE RMK LH RED [INCL. 12] 1
10 ASM-SPINDLE RMK RH [INCL. 12] 1
10 ASM-SPINDLE RMK LH [INCL. 12] 1
10 ASM-SPINDLE RMK RH BLK [INCL. 12] 1
10 ASM-SPINDLE RMK LH ORG [INCL. 12] 1
10 ASM-SPINDLE RMK RH ORG [INCL. 12] 1
11 NUT-M10X1.25FLGNYLOC-OLIVE D( 4
12 BUSHING-SKI PIVOT 4
13 BUSHING-15.88X10.13X76.20 2
14 ASM-LCA RMK LH NAT [INCL. 2-61518] 1
14 ASM-LCA RMK RH NAT [INCL. 2-61518] 1
14 ASM-LCA RMK LH MBLK [INCL. 2-61518] 1
14 ASM-LCA RMK RH MBLK [INCL. 2-61518] 1
16 SCR-HXFL-M10X1.25X75 10.9 ZOD 2
17 RING-RETAINING1.25 ID HSNG 2
18 SHAFT-PIVOT LCA FRT GROOVED 2
19 SCR-M10X1.5X95 HX FLG 10.9 ZOD 1
20 NUT-M10X1.5 HFN NYLOC ZOD 3
21 SCR-HXFL-M8X1.25X50 DP ZODP30 2
22 WASHER-.344X.688X.063 FL-ZOD 2
23 SPACER-8.2X19ALUM 4
25 SCR-M10X1.5X60-8.8 HFS ZOD 2
26 BUSHING-M10X17.5X30 2
