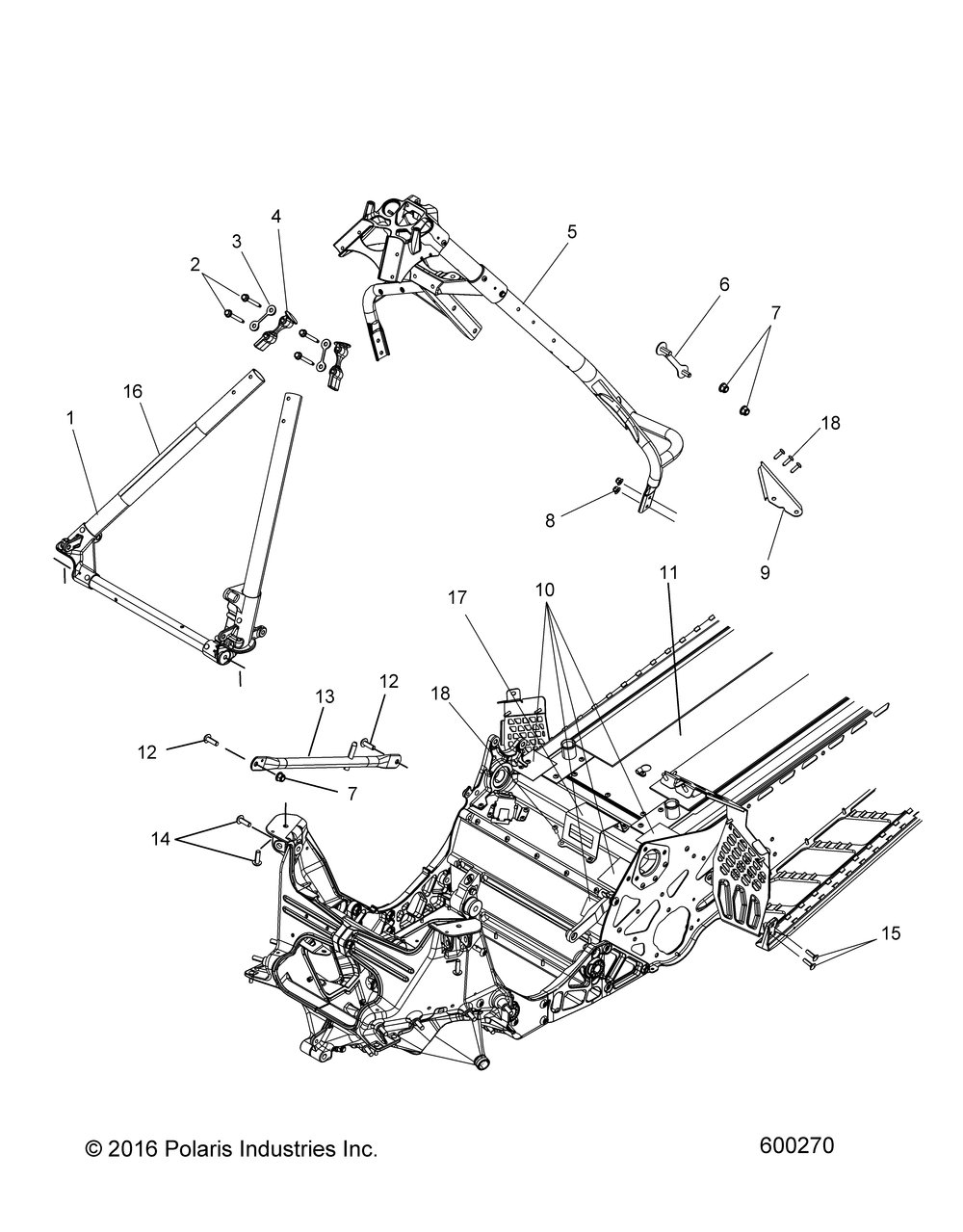

CHASSIS CHASSIS ASM. and OVER STRUCTURE - S17EFK8 / EFM8 / EFP8 ALL OPTIONS (600270)

№	Наименование	Кол-во
1	ASM-FRAME TUBE FRONT RMKCF	1
2	SCR-HXFL-M6X1X50 10.9 ZODP30DP	4
3	SHIM-TUBE CAST 31.76 DIA	2
4	SPACER-TUBE CAST	2
5	ASM-FRAME TUBULAR REAR RMK	1
6	ASM-STUD PLATE M8 91MM	2
7	NUT-M8X1.25FLGNYLOC-OLIVE D	5
8	NUT-HXFL-M6X1.0 8 ZB3 NYL	4
9	BRKT-SUPT TOE STOP	1
10	PAD-40X63.5	4
11	ASM-CHASSIS MNT155 QD BSC NAT [QUICK DRIVE][INCL. BULKHEAD AND QUICK DRIVE]	1
11	ASM-TUNNEL 155 SVC BSC NAT	1
11	ASM-CHASSIS MNT155 QD BLK [QUICK DRIVE][SNOW CHECK][INCL. BULKHEAD AND QUICK DRIVE]	1
11	ASM-TUNNEL 155 SVC BLK [SNOW CHECK]	1
11	ASM-TUNNEL 155 SVC BSC TITAN [SNOW CHECK]	1
11	ASM-CHASSIS MNT155 CC BSC BLK [CHAINCASE] [SNOW CHECK][INCL. BULKHEAD AND CHAINCASE]	1
12	CL8.8 OLV-D	2
13	WELD-TUBE BRACE RH BLK	1
14	SCR-TXTH-M8X1.25X25 8.8 ZODP30	4
15	SCR-RHCAR-M6X1.0X20 8.8 ZPC	2
16	FOIL-100MM X 200MM	1
17	BRKT-AIRBOX SUPPORT	1
18	RIVETINTERLOCKZ(50) * (50 per pack)	7
