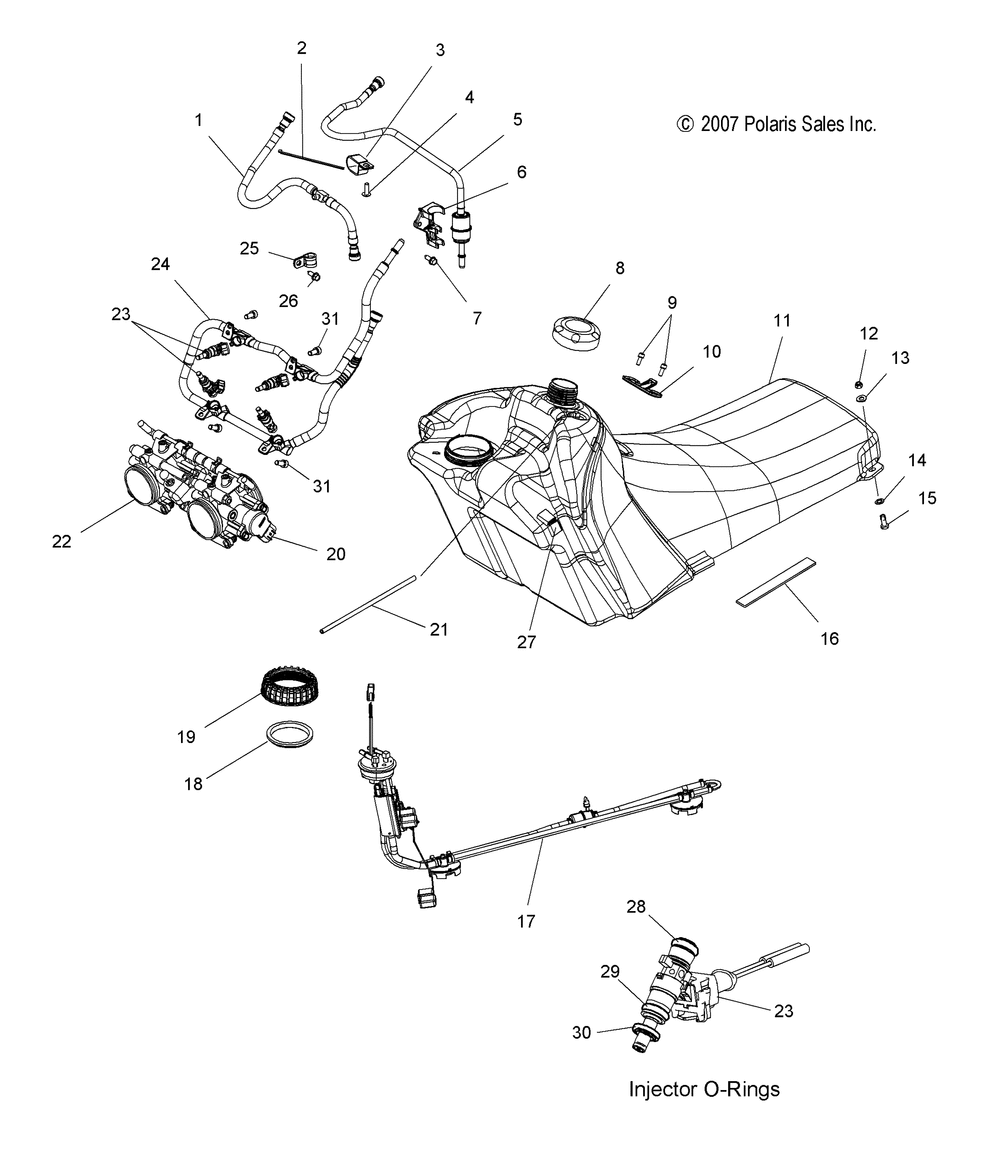

FUEL SYSTEM FUEL TANK RAIL LINE and THROTTLE BODY - S08PD6 / PB6 / PB7 / PP6 / PP7 ALL OPTIONS (49SNOWFUEL08600TRG)

Polaris S08PD6/PB6/PB7/PP6/PP7 600/700 IQ DRAGON/700 IQ/600 IQ LX/EURO ALL OPTIONS S08PD6/PB6/PB7/PP6/PP7 600/700 IQ DRAGON/700 IQ/60 FUEL SYSTEM FUEL TANK RAIL LINE and THROTTLE BODY - S08PD6 / PB6 / PB7 / PP6 / PP7 ALL OPTIONS (49SNOWFUEL08600TRG)

№	Наименование	Примечание	Кол-во
1	ASM-FUEL LINERTRN		1
2	CABLE TIE (10) (10 per pack)		1
3	CLAMP-DBL TUBE.562 VNLCOATED		1
4	SCR-1/4-20X3/4-TR/TX/TAP-M		1
5	ASM-FUEL LINE FLTR		1
6	ASM-FUEL FILTER RETAINER [INCL. PAD]		1
6	PAD-FUEL FILTER		1
7	SCREW		1
8	CAP-FUEL TANK"PREMIUM"		1
9	SCREW(10) * (10 per pack)		2
10	BRKT-SEAT MOUNT		1
11	ASM-FUEL TANKHI CAPMLD COMP [Also order Gasket tahos_18]		1
12	NUT-NYLOK(10) (10 per pack)		2
13	WASHERFLAT		2
13	WSHR-.275X.84X.075 BLK-M		2
14	RETAINER-BOLT1/4-20		2
15	BOLT-CARRIAGE [700 IQ][600/700 IQ Dragon]		2
15	BOLT		2
16	PAD BATTERY		4
17	ASM-PUMPFUEL [Need to order Pick Up Clamps and Gasket along w/Fuel Pump]		1
17	ASM-PUMPPICK UP IQ		1
17	CLAMP-OETIKER14.5BLUE		1
17	CLAMP-OETIKER15.3		1
18	GASKET-PFA		1
19	NUT-PFA		1
20	SENSOR-THROTTLE POSITION		1
21	LINE-VENT5/16 ID104 CM		1
22	ASM-THROTTLE BODY		1
23	KIT-INJECTOR 500G/MINRED [Includes 1 Injector per kit]		4
23	KIT-INJECTOR 500G/MINBLU [Includes 1 Injector per kit]		4
23	KIT-INJECTOR 500G/MINYLW [Includes 1 Injector per kit]		4
24	ASM-FUEL RAIL 600 SDI		1
25	CLAMPRUBBER-COATED.562		1
27	PAD-RUBBER3 X 1.5X .5		2
28	O-RING(2) (2 per pack)		4
29	O-RING BOSCH E10076 [BROWN][1 PER INJECTOR]		4
30	BUSHING-RUBBER INJ ELASTOMER [GREEN][1/INJECTOR]		4
31	SCREW		4
