DRIVE TRAIN DRIVE SHAFT and JACKSHAFT - S08PM6 / PM7 / PG7 / PH7 (49SNOWDRIVETRAIN08RMK155)

Корзина пуста
Polaris S08PM6/PM7/PG7/PH7 600 RMK 155/700 RMK 155/163 ALL OPTIONS S08PM6/PM7/PG7/PH7 600 RMK 155/700 RMK 155/163 ALL DRIVE TRAIN DRIVE SHAFT and JACKSHAFT - S08PM6 / PM7 / PG7 / PH7 (49SNOWDRIVETRAIN08RMK155)

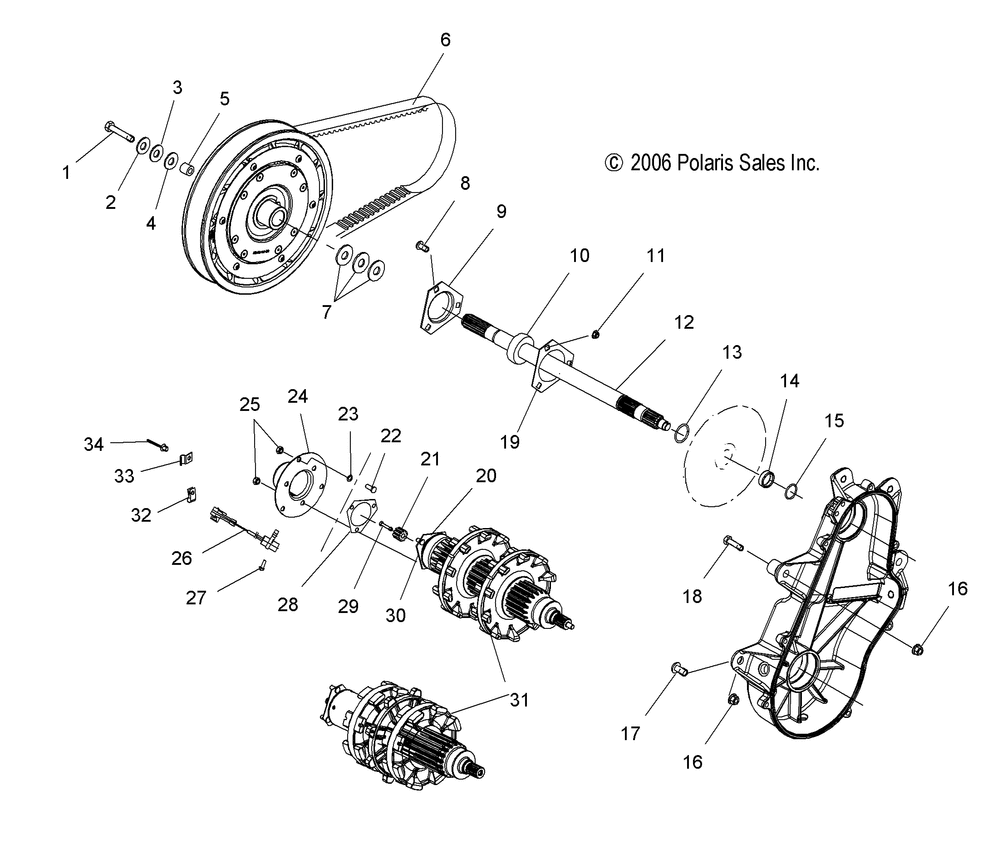

DRIVE TRAIN DRIVE SHAFT and JACKSHAFT - S08PM6 / PM7 / PG7 / PH7 (49SNOWDRIVETRAIN08RMK155)
№ Наименование Примечание Кол-во
1 SCREW(10) (10 per pack) 1
2 WASHERFLAT 1
3 WASHERFLAT(10) (10 per pack) 0
4 WASHER 0
5 SPACER-INPUT SHAFT.875 OD [600] 1
5 SPACER-INPUT SHAFT.875 OD AL 1
6 BELT-DRIVE11.5CDCVT 1
7 WASHER(10) (10 per pack) 2
7 WASHER 0
7 BUSHING(10) (10 per pack) 0
8 BOLTCARRIAGE 3
9 FLANGETTE-.100 OFFSET 1
10 BEARING-1XM52XM15SPH 1
11 NUTFLANGE 3
12 JACKSHAFT ASM15/21 SPL W/BRG [Incl. 1013] 1
13 RING RETAINING 1
14 SLEEVE-SEAL45 DEGREE CHAMFER 1
15 O RING(10) (10 per pack) 1
16 NUT-FLANGED3/8-16 NYLON-Z (10) (10 per pack) 4
17 BOLT-CARR 3/8-16X1.00 GR5-Y 2
18 BOLT-CARRIAGE3/8-16X1.75-Y 2
19 FLANGETTE 1
20 BEARING-1XM52XM15SPH 1
21 WHEEL-PICKUPSPEEDO9 TOOTHCS 1
22 BOLT-CARR 5/16-18X5/8 GR5-Y 3
23 PALNUT 3
24 HOUSING-DRIVE PICKUP 1
25 NUTNYLOK(10) (10 per pack) 3
26 SENSOR-SPEED PICKUP 1
27 BOLT(10) (10 per pack) 1
28 GASKETJACKSHAFTBLK 1
29 SCREW 1
30 ASM-FLANGETTE W/SCREWS 1
31 ASM-DRSHAFT TUBULAR8TMACH2DR [155] 1
32 CABLE TIE (10) (10 per pack) 1
33 RETAINER-"J"CLP (10) * (10 per pack) 1
34 RIVETINTERLOCKZ(50) * (50 per pack) 1
