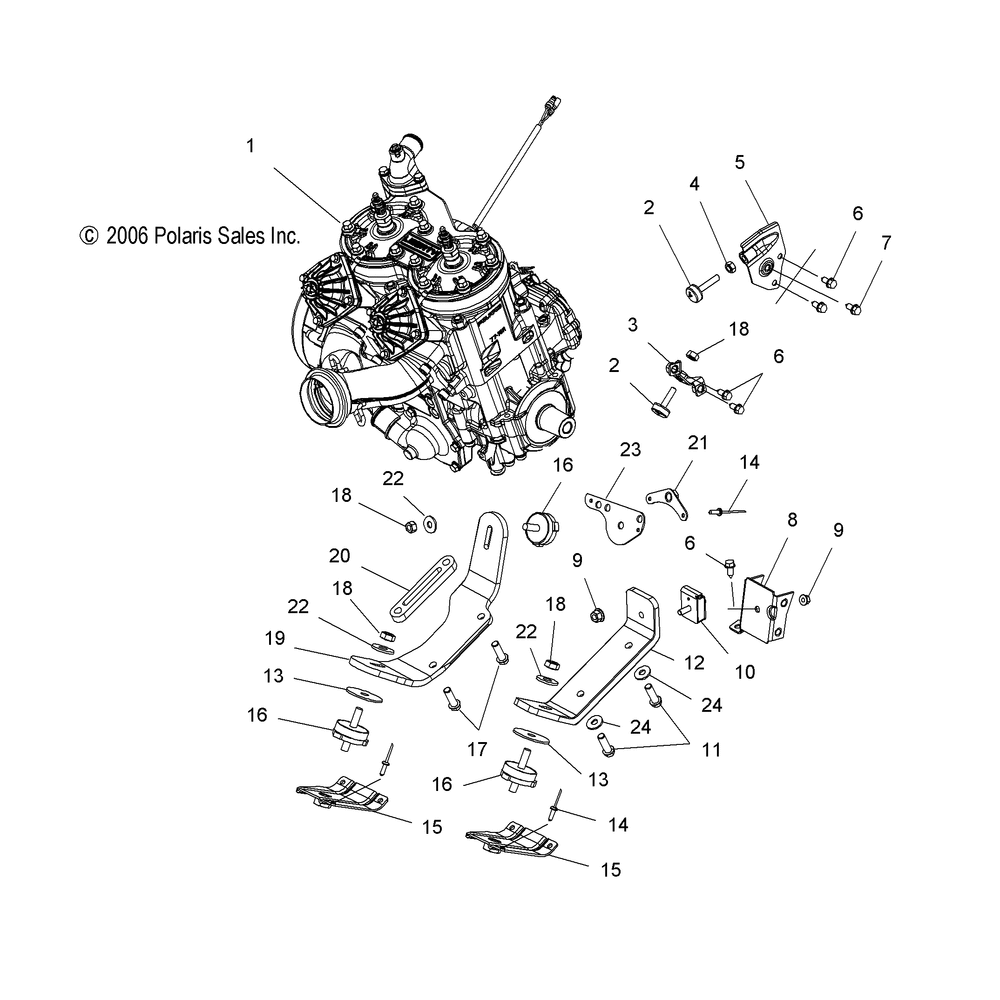

ENGINE MOUNTING - S07PP6FS / FSA / FSB (49SNOWENGINEMOUNT600HO)

№	Наименование	Кол-во
1	SUBSTITUTED BY 9990000 NOTE: The Short Block assembly contains a crankcase assembly cylinder and cylinder head assembly and a piston and crankshaft assembly. Prior authorization is required for warranty consideration.	1
2	STOP-TORQUECOURSE3/8-16 1.50	2
3	WELD-TORQUE STOP	1
4	NUT	1
5	WELD-TORQUE STOP	1
6	SCR-3/8-16X1-P30-SPEC-Y	5
7	SCREW	1
8	WELD-BRKT ENG MNT	1
9	NUT-FLANGED3/8-16 NYLON-Z (10) (10 per pack)	2
10	MOUNT-ENGINE3/8-16RECT	1
11	BOLT	2
13	WASHERFLAT(10) (10 per pack)	2
14	RIVETINTERLOCKZ(50) * (50 per pack)	6
15	ASM- CLINCH NUT PLATE [RH]	2
16	ISOLATOR-RUBBER	3
17	SCR-7/16-14X1-3/4HX/FLY	2
18	NUT NYLOK(10) * (10 per pack)	4
20	SPACER-ENGINE MOUNT .50	1
21	WELD-NUT PLATE REAR	1
22	WASHERWROUGHT	3
23	SUPPORT-ENG MNT RRMAG	1
24	WASHERSPRING LOCK	2
