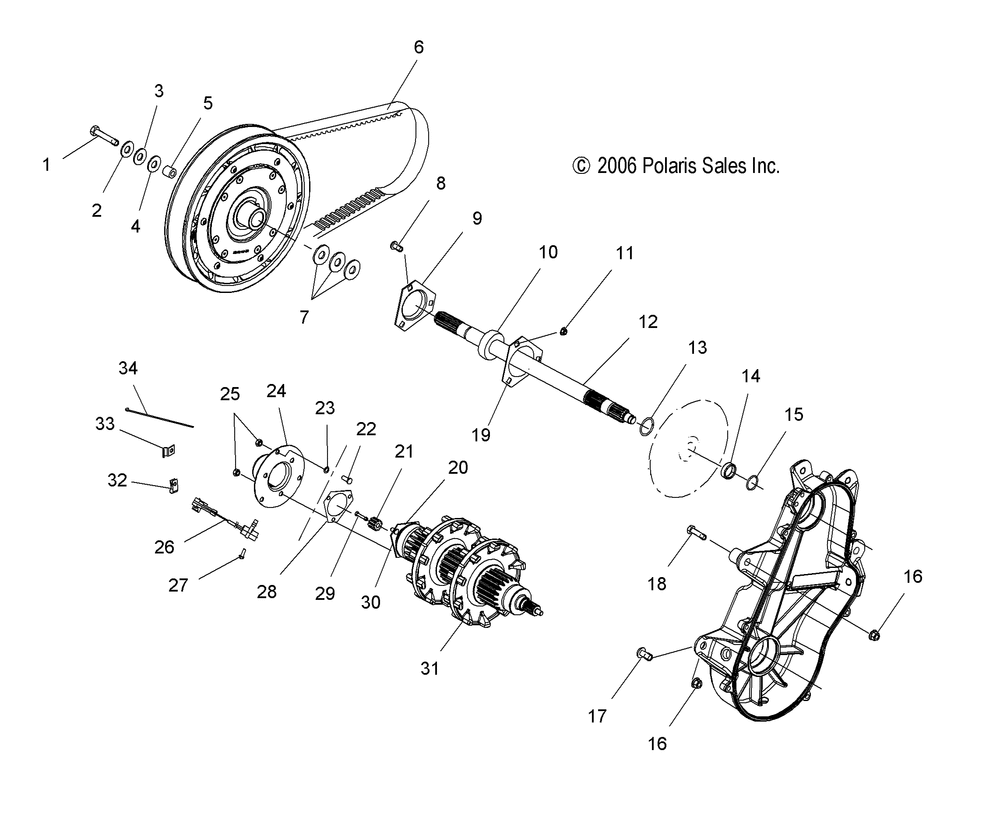

DRIVE TRAIN ASSEMBLY - S07PT6HS / HE (49SNOWDRIVETRAINCLEAN)

№	Наименование	Кол-во
1	SCREW(10) (10 per pack)	1
2	WASHERFLAT	1
3	WASHERFLAT(10) (10 per pack)	0
4	WASHER	0
5	SPACER-INPUT SHAFT.875 OD AL	1
6	BELT DRIVE(5) (5 per pack)	1
7	BUSHING(10) (10 per pack)	0
7	WASHER	0
7	WASHER(10) (10 per pack)	0
8	BOLTCARRIAGE	3
9	FLANGETTE-.100 OFFSET	1
10	BEARING-1XM52XM15SPH	1
11	NUTFLANGE	3
12	JACKSHAFT ASM15/21 SPL W/BRG [Incl. 1013]	1
13	RING RETAINING	1
14	SLEEVE-SEAL45 DEGREE CHAMFER	1
15	O RING(10) (10 per pack)	1
16	NUT-FLANGED3/8-16 NYLON-Z (10) (10 per pack)	4
17	BOLT-CARR 3/8-16X1.00 GR5-Y	2
18	BOLT-CARRIAGE3/8-16X1.75-Y	2
19	FLANGETTE	1
20	BEARING-1XM52XM15SPH	1
21	WHEEL-PICKUPSPEEDO9 TOOTHCS	1
22	BOLT-CARR 5/16-18X5/8 GR5-Y	3
23	PALNUT	3
24	HOUSING-DRIVE PICKUP	1
25	NUTNYLOK(10) (10 per pack)	6
26	SENSOR-SPEED PICKUP	1
27	BOLT(10) (10 per pack)	1
28	GASKETJACKSHAFTBLK	1
29	SCREW	1
30	ASM-FLANGETTE W/SCREWS	1
31	ASM-DRVSHFT TUB 2.52 2S-9TLONG	1
32	CLAMP CABLE	1
33	RETAINER-"J"CLP (10) * (10 per pack)	2
34	CABLE TIE (10) (10 per pack)	2
