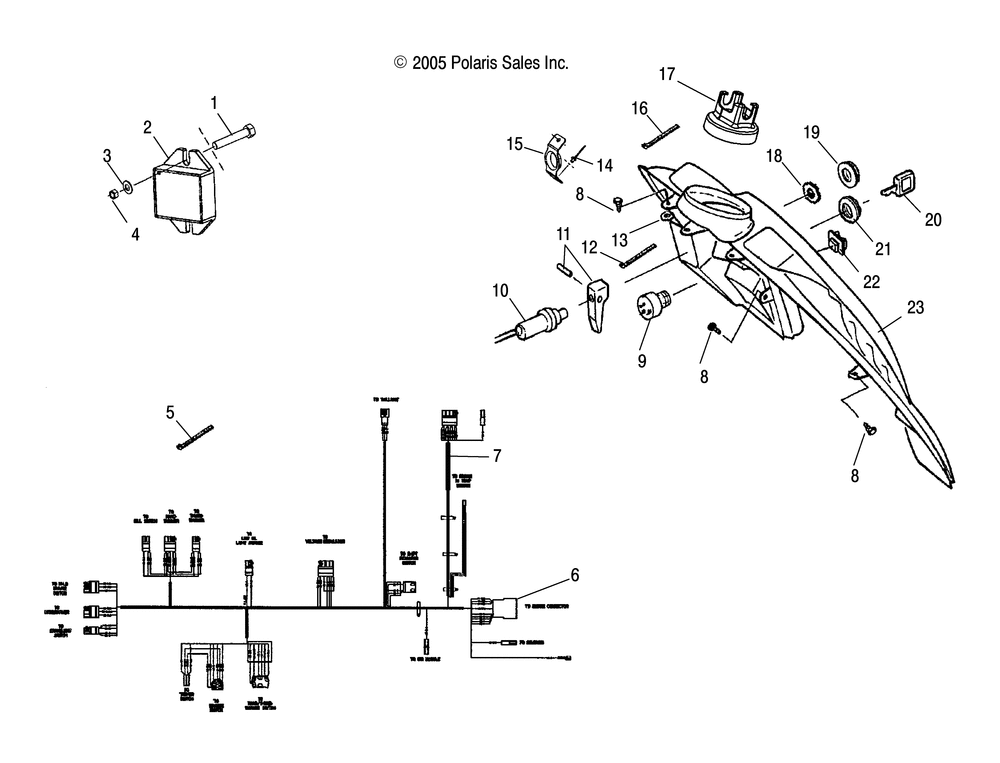

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | SCREW HX/SEMS | 2 | |
| 2 | REGULATOR-AC/DC 14.3V | 1 | |
| 3 | WASHER | 2 | |
| 4 | NUT NYLOK 10-24 Y | 2 | |
| 5 | CABLE TIE (10) (10 per pack) | 7 | |
| 6 | HOUSING | 1 | |
| 7 | HARNESS-MAIN WIRE | 1 | |
| 8 | SCREW(10) * (10 per pack) | 4 | |
| 9 | KIT-IGNITION SWITCHESCOMPLT | 1 | |
| 10 | CABLE CHOKE (TWIN) | 1 | |
| 11 | KITCHOKE LEVER REPAIR [Incl. Pin] | 1 | |
| 12 | CABLE TIE-RELEASABLE5 1/2" | 1 | |
| 13 | WASHERNYLON | 2 | |
| 14 | RIVET POP(50) (50 per pack) | 2 | |
| 15 | GUIDE-RECOIL | 1 | |
| 16 | CABLE TIE14" | 1 | |
| 17 | BOOT-HANDLEBAR | 1 | |
| 18 | WASHER-LOCK | 1 | |
| 19 | NUTCHOKE | 1 | |
| 20 | SUBSTITUTED BY 9990000 NOTE: WHEN ORDERING IGNITION KEY PN 5410611 BE SURE TO SPECIFY IF FOR AN ABCD OR E SWITCH. LETTER CODE WILL BE LABELED ON UNDERSIDE OF SWITCH BODY BEHIND CONSOLE. KEY DOT CODE FOUND ON KEY CAP [I.E. ONE DOT = A TWO DOTS= B ETC.]. | 1 | |
| 21 | NUTIGNITION | 1 | |
| 22 | SWITCHHEATERHI/LO | 1 | |
| 22 | HAIRPIN-COTTER 3/16-1/4 | 2 | |
| 23 | CONSOLEHYB.BLK. | 1 |
