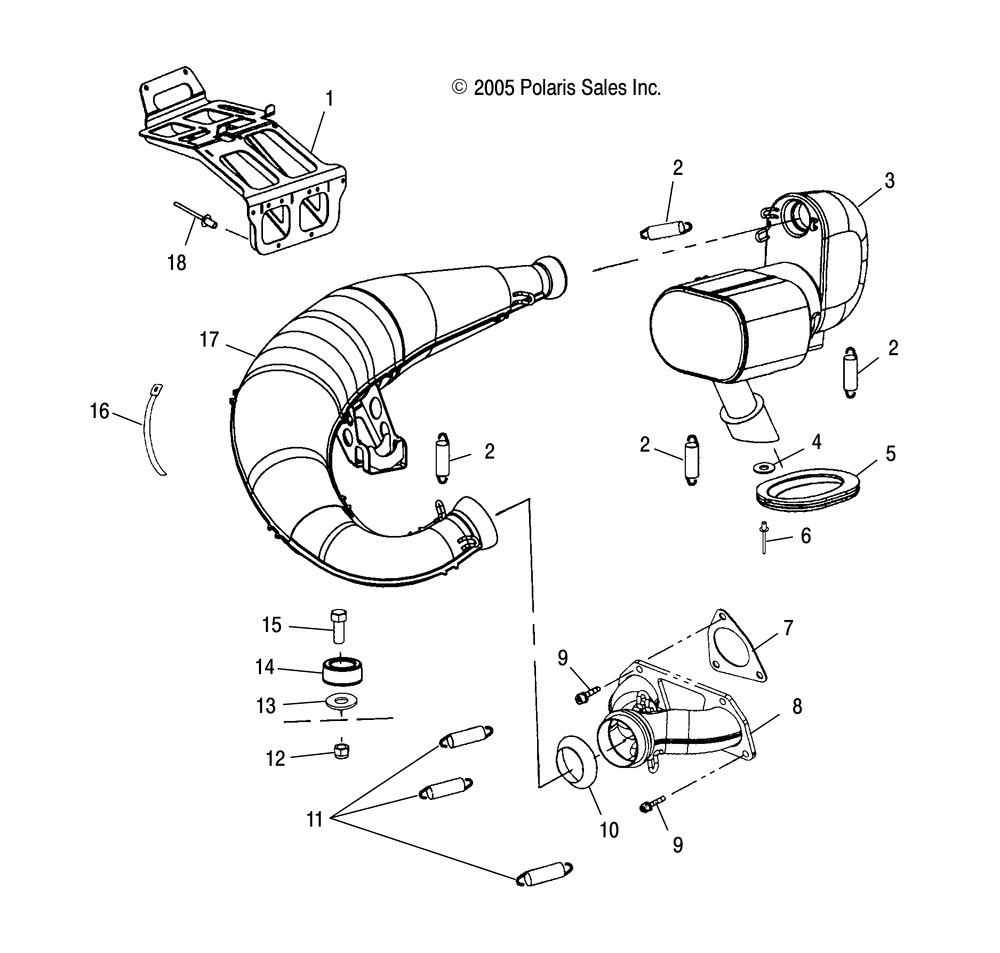

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | WELD-BRKT CHASSIS/RESONATORBK | 1 | |
| 2 | SPRING(10) (10 per pack) | 11 | |
| 3 | WELD-RESONATORBLK | 1 | |
| 4 | WASHER | 1 | |
| 5 | BOOTEXHAUSTOUTLET | 1 | |
| 6 | RIVET BLIND(50) * (50 per pack) | 1 | |
| 7 | GASKET-EXHAUST | 2 | |
| 9 | SCREW(10) (10 per pack) | 6 | |
| 10 | SEALEXH.SOCKET | 1 | |
| 11 | SPRING-EXHAUST S.S. SHOTPEENED | 3 | |
| 12 | NUT-FLANGED3/8-16 NYLON-Z (10) (10 per pack) | 1 | |
| 13 | WASHER FLAT | 1 | |
| 14 | DAMPENER-VIBRATIONS | 1 | |
| 15 | SCR-3/816X1 1/4 HXSOC CS ZY3 | 1 | |
| 16 | CLAMP-WORM DRIVE.44X3.13 DIA | 1 | |
| 16 | CLAMP-WORM DRIVE.44WX3.69DIA | 1 | |
| 16 | CLAMP-WORM DRIVE.44WX4.25DIA | 1 | |
| 16 | CLAMP-WORM DRIVE.44WX6.38DIA | 2 | |
| 17 | TUNED PIPEASM ** [Incl. Covers] | 1 | |
| 17 | COVER-TUNED PIPEBOTTOM | 1 | |
| 17 | MATTE-SOUNDTOP | 1 | |
| 17 | MATTESOUNDBOTTOM | 1 | |
| 18 | RIVETINTERLOCKZ(50) * (50 per pack) | 8 |
