Polaris S06PD7HS 700 CLASSIC S06PD7HS 700 CLASSIC ENGINE MOUNTING RH and FRONT - S06PD7HS (4997359735C09)

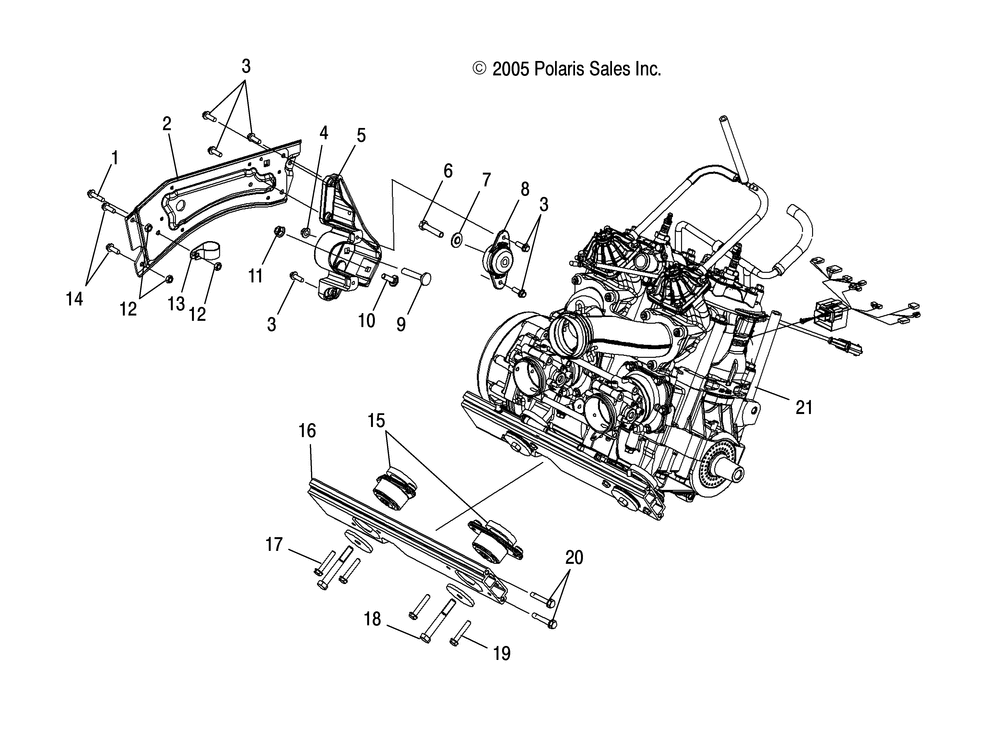

ENGINE MOUNTING RH and FRONT - S06PD7HS (4997359735C09)
№ Наименование Примечание Кол-во
1 SCREW [For Chaincase 5134817] 1
2 ASM-SUPPORTBLKHDUPPERRH 1
3 BOLT(10) (10 per pack) 6
4 NUT-FLANGED3/8-16 NYLON-Z (10) (10 per pack) 1
5 SUPPORT-ENGINERHREARMACH 1
6 SCR-3/8-16X1.75 HXCP-P30-GR5-Y 1
7 WASHERFLAT(10) (10 per pack) 1
8 MOUNT-ENGINEREAR 60 1
9 BOLT-CARR 3/8-16X2-GR5-Y 1
10 BOLT-CARR 5/16-X1"GR5 Y LO 1
11 NUTFLANGE 1
12 NUTNYLOKFLANGED 3
14 SCREW 2
15 MOUNT-ENGINE FRONT 60 2
16 SUPPORT-ENGINE BASEFRONT3/4 1
17 WASHER-.390X1.94.050-Y 2
18 SCREW(10) (10 per pack) 2
19 BOLT(10) * (10 per pack) 4
20 BOLT-5/16-18X1-1/2 HXFLNGP-30 4
21 SUBSTITUTED BY 9990000 NOTE: The Short Block assembly contains a crankcase assembly cylinder and cylinder head assembly and a piston and crankshaft assembly. Prior authorization is required for warranty consideration. 1
