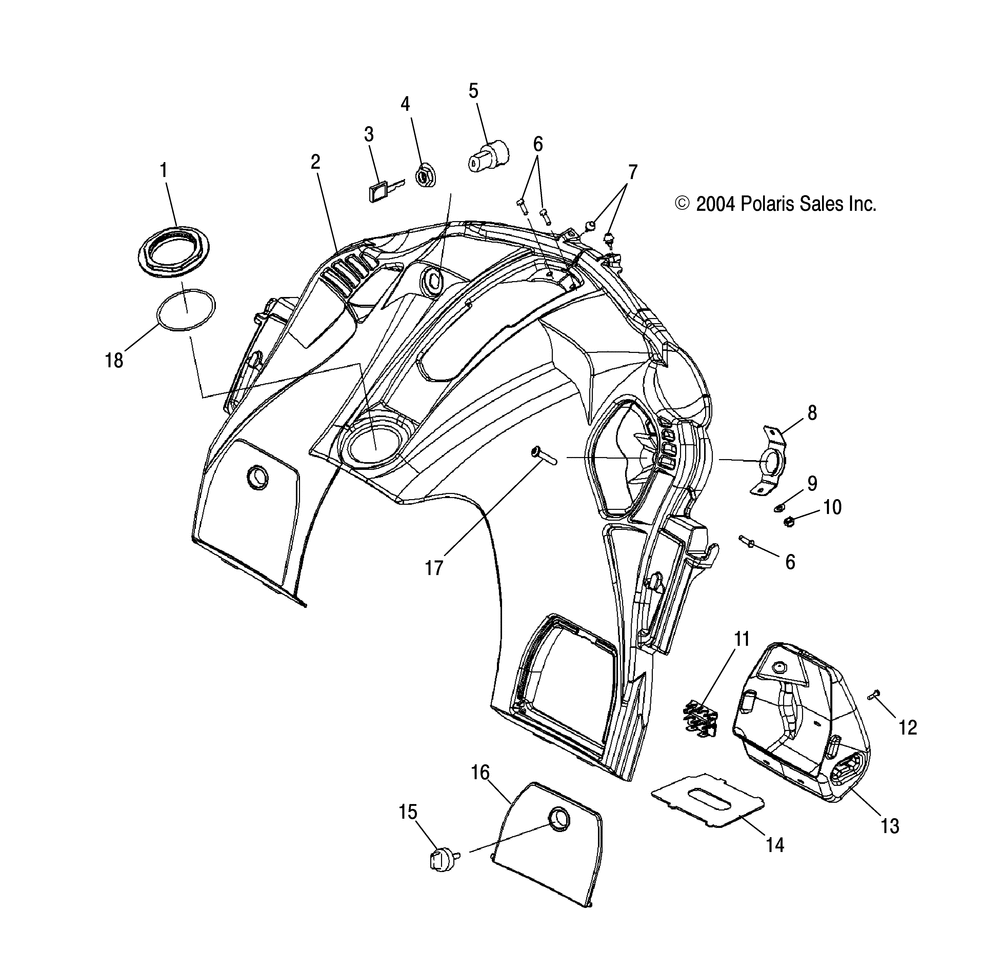

CONSOLE - S05MP8DS / DSA / DSB / DSC (4992569256A11)

Polaris S05MP8DS 900 FUSION S05MP8DS 900 FUSION CONSOLE - S05MP8DS / DSA / DSB / DSC (4992569256A11)

№	Наименование	Кол-во
1	NUT-FILLER NECK	1
2	CONSOLE ASMSBLK	1
3	SUBSTITUTED BY 9990000 NOTE: WHEN ORDERING IGNITION KEY PN 5410611 BE SURE TO SPECIFY IF FOR AN ABCD OR E SWITCH. LETTER CODE WILL BE LABELED ON UNDERSIDE OF SWITCH BODY BEHIND CONSOLE. KEY DOT CODE FOUND ON KEY CAP [I.E. ONE DOT = A TWO DOTS= B ETC.].	1
4	NUTIGNITION	1
5	KIT-IGNITION SWITCHESCOMPLT	1
6	SCR-1/4-20X3/4-TR/TX/TAP-M	4
7	BUMPER-GROMMET1/4"	2
8	BRKT-ROPE GUIDE	1
9	WASHER13/64X1/2X18GAFL-Y (10) (10 per pack)	2
10	NUT (10) (10 per pack)	2
11	HOLDER-SPARK PLUG	1
12	SCREW(10) (10 per pack)	2
13	COMPARTMENT-STORAGELH	1
13	COMPARTMENT-STORAGERH	1
14	COMPARTMENTDIVIDER	1
15	KEY-BLK	1
16	DOOR ASMCONSOLEBLK [Incl. Lock]	2
17	SCREW	2
18	O-RING	1
