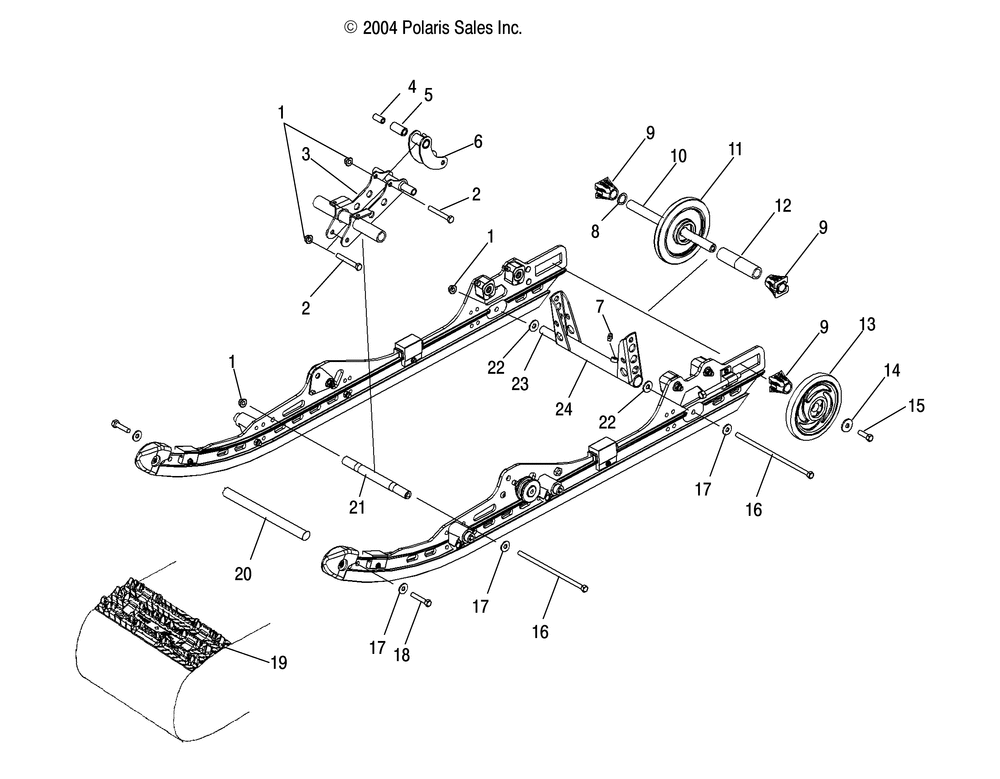

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | NUT-3/8-24 NYLOK | 4 | |
| 2 | SCREW | 2 | |
| 3 | WELD-H-BRACKETBLK | 1 | |
| 4 | SLEEVE.385X.560X1.72 | 1 | |
| 5 | BUSHING | 1 | |
| 6 | SHOCK PIVOTBLK | 1 | |
| 7 | FITTING LUBRICATION | 1 | |
| 8 | BUSHING(10) (10 per pack) | 1 | |
| 9 | SPACERIDLER | 4 | |
| 10 | SHAFTIDLER | 1 | |
| 11 | ASM.WHEELPLAIN(6.38 O.D.) | 1 | |
| 12 | SPACERIDLERLONG | 1 | |
| 13 | ASM-WHEEL IDLERHPBR SLV MET | 2 | |
| 13 | ASM.WHEELIDLERHPINDY RED | 2 | |
| 13 | BEARING-.7874X1.6535X.4724NTN [1 PER WHEEL] | 2 | |
| 13 | RINGRETAINING [1 PER WHEEL] | 2 | |
| 14 | WASHER-.406X1.25X.125 (10) (10 per pack) | 2 | |
| 15 | BOLT3/8-16X1.25(10) (10 per pack) | 2 | |
| 16 | SCR-3/8-24X9.875HX/LPGR8-Y | 2 | |
| 17 | WASHER-FL.390X.750X.065-Y | 4 | |
| 18 | SCR-3/8-16X1.50-HX/CP-GR5-P80Y | 2 | |
| 19 | CLIPGUIDE(10) (10 per pack) | 0 | |
| 19 | TRACK 121" X 15" X 1.25" RIPSA | 1 | |
| 20 | SHAFT-C'BORE.688X8.6652045 | 1 | |
| 21 | SHAFT-.795X8.6656066 | 1 | |
| 22 | WASHERFLAT(10) (10 per pack) | 2 | |
| 23 | SHAFT | 1 | |
| 24 | REAR PIVOT ARM4.00BLK | 1 |
