REAR TORQUE ARM - S05MP8DS / DSA / DSB / DSC (4992569256B14)

Корзина пуста
Polaris S05MP8DS 900 FUSION S05MP8DS 900 FUSION REAR TORQUE ARM - S05MP8DS / DSA / DSB / DSC (4992569256B14)

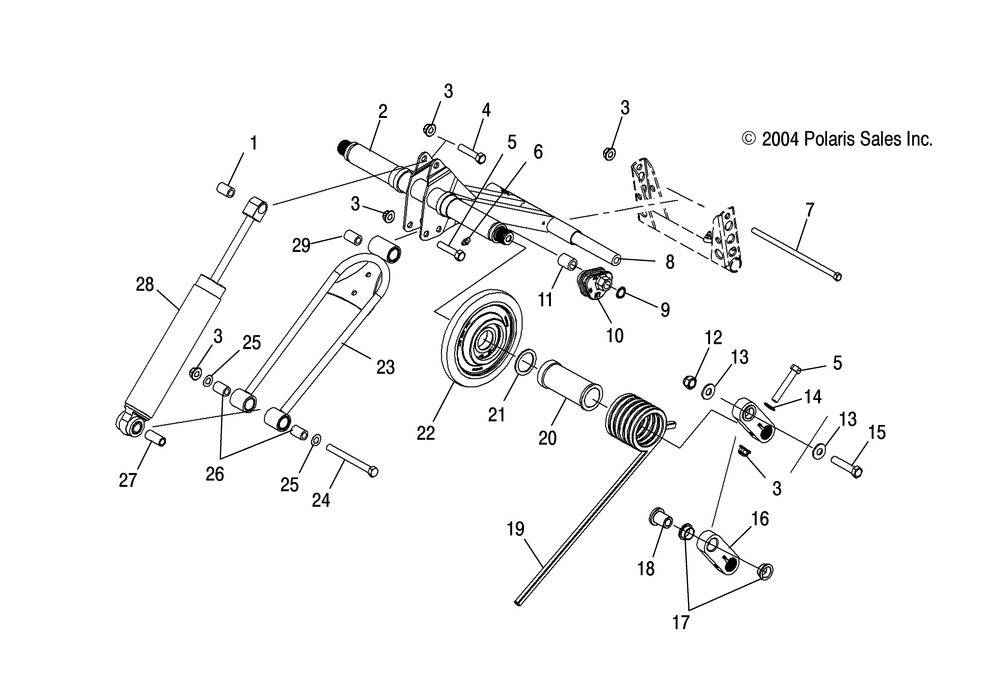

REAR TORQUE ARM - S05MP8DS / DSA / DSB / DSC (4992569256B14)
№ Наименование Примечание Кол-во
1 BUSHING 1
2 ARMTORQUEREARBLACK 1
3 NUT-3/8-24 NYLOK 6
4 BOLT 1
5 SCREW(10) (10 per pack) 3
6 FITTING LUBRICATION 1
7 SCR-3/8-24X8.75HXCP-GR8-Y 1
8 SHAFT-.740X.390X7.9656066 1
9 CLIPPUSH ON(10) (10 per pack) 2
10 ROLLER-SPRINGTRI-ADJLH 1
10 ROLLER-SPRINGTRI-ADJRH 1
11 SPACER-.520X.770X1.125HDPE 2
12 NUT-7/16-20NYLOKY (10) (10 per pack) 2
13 WASHERFLAT 4
14 WASHER-FL.390X.750X.065-Y 2
15 BOLT-7/16-20X2-HXHDCAP-GR5-Y 2
16 ASM-ARM2.00 [Incl. 15] 2
17 BUSHING 4
18 SHAFT-.445X.750X1.00FLANGE 2
19 SPRING-TOR.405S16.25tahos_LHBLK [Opt] 1
19 SPRING-TOR.405S16.25tahos_RHBLK [Opt] 1
19 SPRING-TOR.359S11.25tahos_LHBLK [Opt] 1
19 SPRING-TOR.359S11.25tahos_RHBLK [Opt] 1
19 SPRING-TOR.35912.5tahos_LHBLK [INTL][USA OPT] 1
19 SPRING-TOR.35912.5tahos_RHBLK [INTL][USA OPT] 1
20 SLEEVE-TORSION SPRING 2
21 WASHER 2
22 ASM-WHEELPLAIN5.626007 2
22 RINGRETAINERINT. 1
22 ASM-WHEELPLAIN5.626007 1
23 BUSHING-.568X.688X.92VESPEL 2
23 BUSHING-.568X.688X1.36VESPEL 1
23 WELD-SHOCK RODFUSIONBLK (Incl. Bushings) 2
24 SCR-3/8-24X4.00 HXCP-GR5-Y 1
25 WASHERWAVE SPRING(10) (10 per pack) 2
26 BUSHING-.385X.560X.967 2
27 SLEEVE.385X.560X1.24 1
28 SHOCK-R/TREM RES C/A [See Shock Rear Track External Components [Walker Evans/7043097] Pg. D8 for Details] 1
28 SHOCK-R/TALUMPPS (See Shock Rear Track Pg. D03 for Details) 1
29 BUSHING-.385X.550X1.39 1
