| № | Наименование | Примечание | Кол-во |
|---|---|---|---|

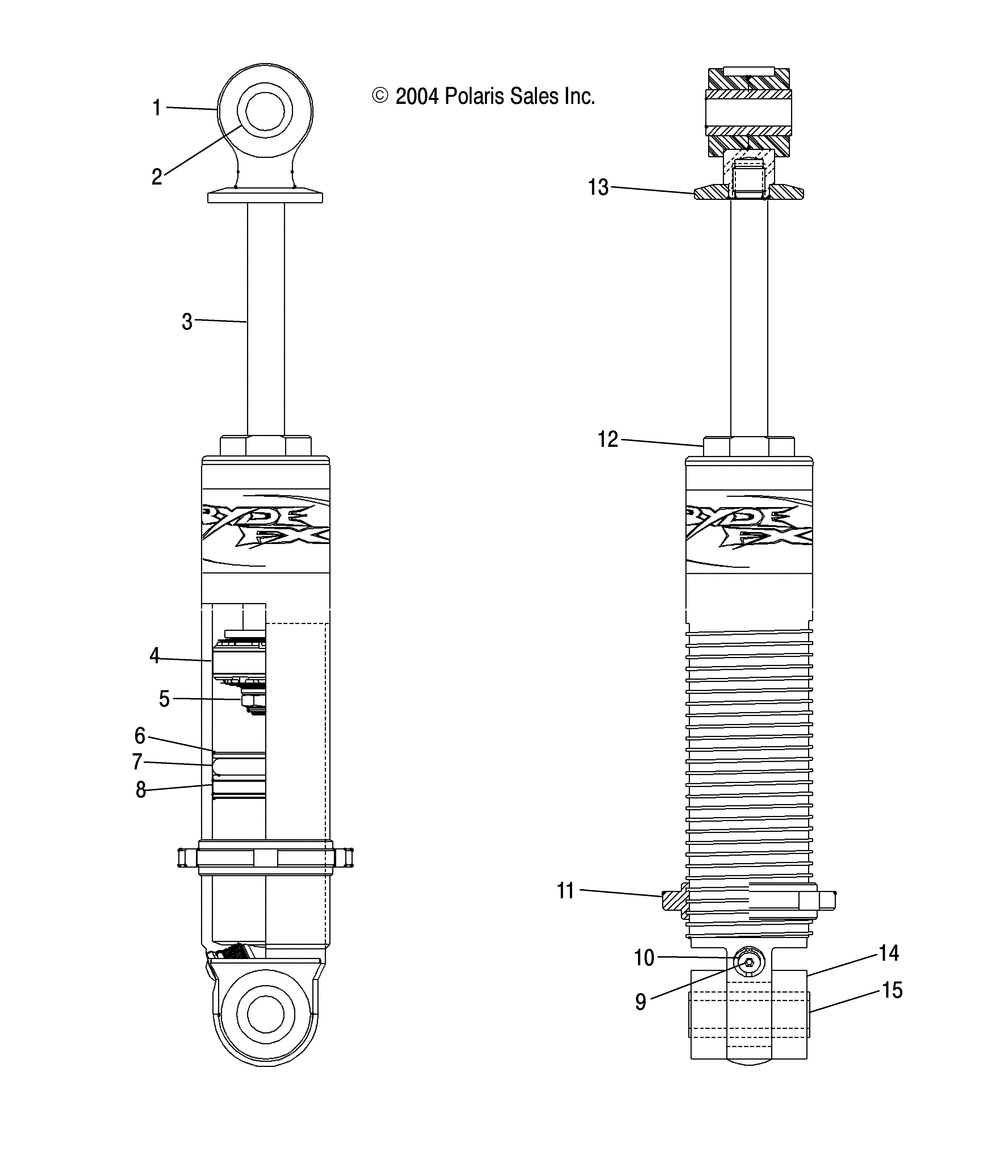

| SHOCK-F/T | 1 | ||
| 1 | BUSHING | 2 | |
| 2 | SLEEVE-.57"IDX.80"ODX1.20 | 1 | |
| 3 | SHAFT-1/2"DIAX6.10"L | 1 | |
| 4 | PISTON WEAR BAND | 1 | |
| 4 | TOP-OUT WASHER | 1 | |
| 4 | BACK-UP WASHER | 1 | |
| 4 | ASM.BANDED PISTON .070" ORIFCE | 1 | |
| 5 | NUT | 1 | |
| 6 | IFP | 1 | |
| 7 | IFP-O-RING | 1 | |
| 8 | IFP WEAR BAND | 1 | |
| 9 | VALVE SCREW | 1 | |
| 10 | PRESS-VALVE ASSY | 1 | |
| 11 | NUTSPRING RETAINER | 1 | |
| 12 | CYL HEAD ASM 215098-100 | 1 | |
| 13 | UPPER MOUNT | 1 | |
| 14 | BUSHING | 2 | |
| 15 | SLEEVE-.57"IDX.80"ODX1.68 | 1 |
