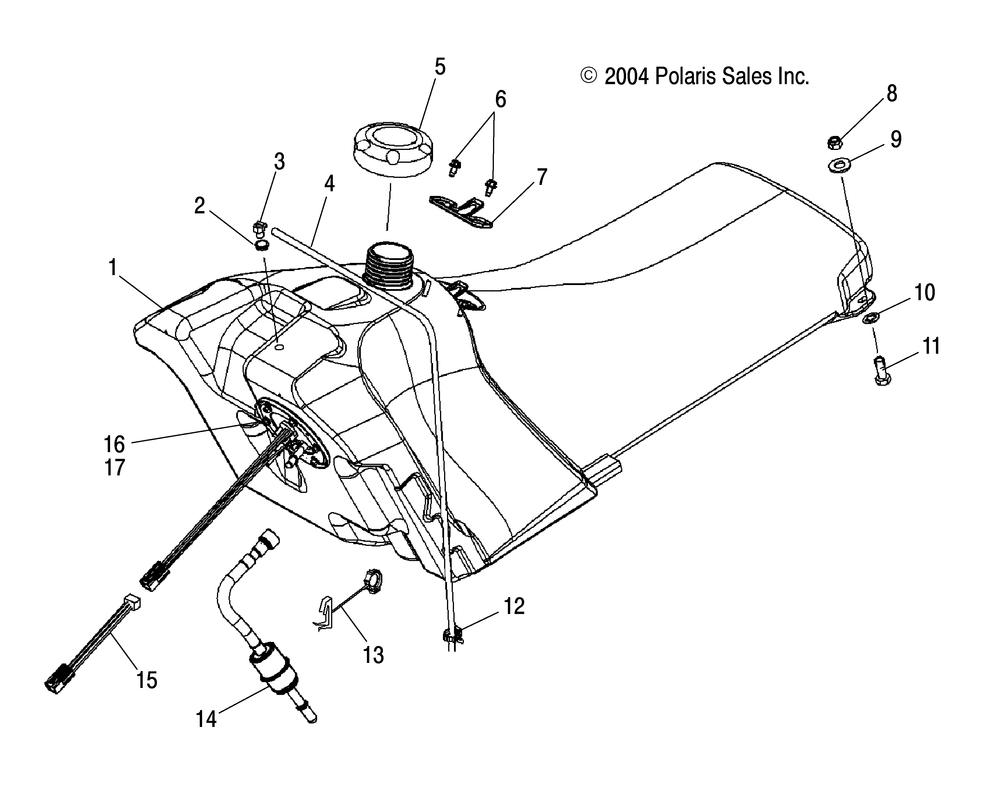

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | KIT-FUEL TANK W/O PFA [Incl. 11618] | 1 | |
| 2 | GROMMET-FLANGED.36X.56X1.06 | 1 | |
| 3 | FITTING-90 | 1 | |
| 4 | LINEFUEL1/4 ID(1525 CM.) [BULK SVC] | 0 | |
| 5 | CAP-FUEL TANK"PREMIUM" | 1 | |
| 6 | SCREW | 2 | |
| 7 | BRKT-SEAT MOUNT | 1 | |
| 8 | NUT-NYLOK(10) (10 per pack) | 2 | |
| 9 | WASHERFLAT | 2 | |
| 10 | RETAINER-BOLT1/4-20 | 2 | |
| 11 | BOLT | 2 | |
| 12 | CLIPROSEBUD | 1 | |
| 13 | ASSEMBLY-SECONDARY CLIP5/16 | 3 | |
| 14 | FUEL FILTER/HOSE ASM | 1 | |
| 15 | HARNESS-JUMPERFUEL SENDER | 1 | |
| 17 | KIT-FUEL TANK GASKET W/HDWR | 1 |
