Polaris S05MX4CS 440 IQ S05MX4CS 440 IQ SHOCK IFS (WALKER EVANS) - S05MX4CS / CE (4992589258C03)

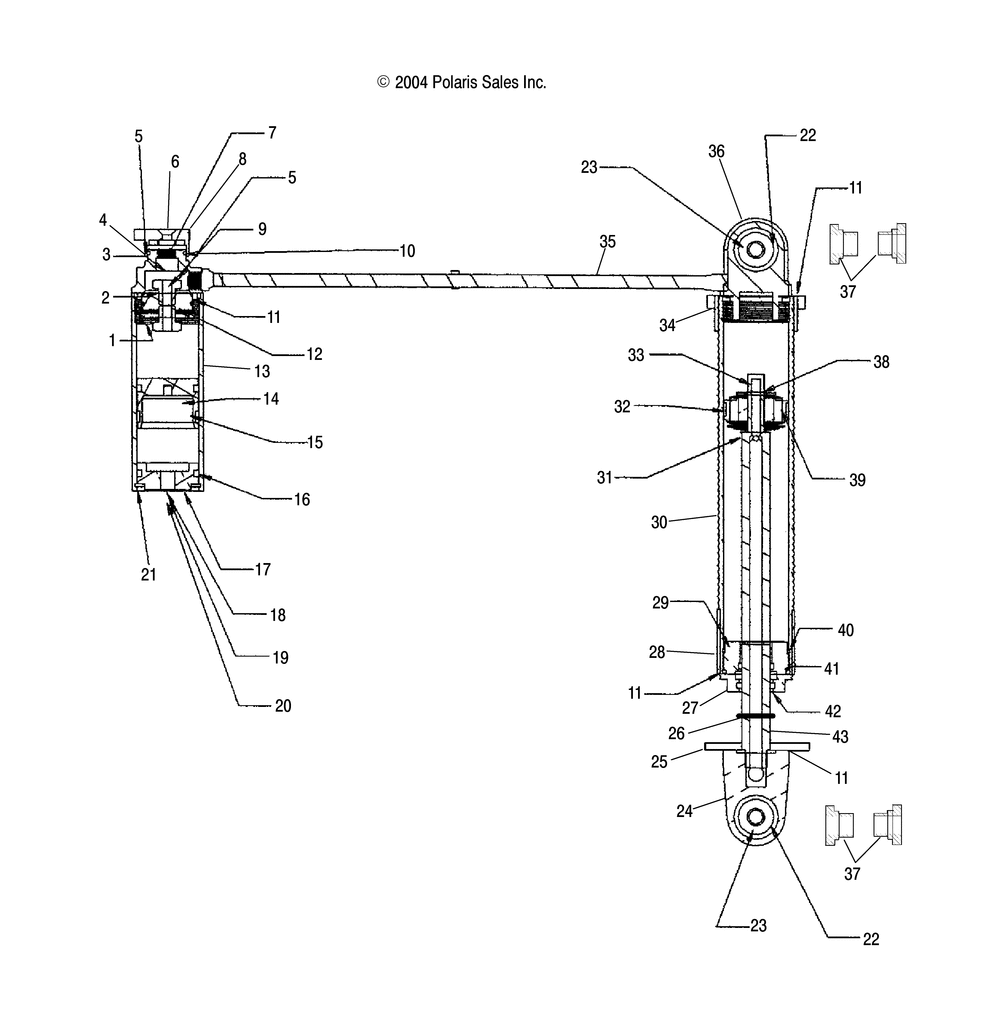

SHOCK IFS (WALKER EVANS) - S05MX4CS / CE (4992589258C03)
№ Наименование Примечание Кол-во
SHOCK-IFSRHW/ERACE 1
1 SHIM-VALVE .015X1.300 (10) (10 per pack) 1
2 SHIM-VALVE .010X.700 (10) (10 per pack) 1
3 O-RINGSTUD 1
4 HOUSING-ADJ. 1
5 BALL-D-TENT(10) (10 per pack) 5
6 SCREW 1
7 SPRING-D-TENT(10) (10 per pack) 2
8 KNOB 1
9 SCREW W/THRU HOLE 1
10 O-RINGKNOB 1
11 O-RING BODY (10) (10 per pack) 3
12 PISTON 1
13 BODY-RESERVOIR 1
14 PISTON-RES.W/BLEED SCREW 1
14 BLEED SCREW 1
14 O-RING-BLEED SCREW 1
16 O-RING RESERVOIR (10) (10 per pack) 2
17 CAP-END 1
18 VALVE-NEEDLE 1
19 O-RING(10) (10 per pack) 1
20 SCREW-BUTTON HEAD 8/32(10) (10 per pack) 1
21 RESERVOIR SNAP RING (10) (10 per pack) 1
22 END CAP SNAP RING (10) (10 per pack) 4
23 BEARING 2
24 EYELET-SHAFT5/8" (400161) 1
25 SPRING-RETAINING RING 1
26 O-RING(10) (10 per pack) 1
27 ASM-HOUSINGSHAFT SEAL 1
28 WEAR SLEEVE 1
29 SHAFT BUSHING 1
30 BODY-SHOCKTHD (400152) 1
31 WASHER 1
32 WEAR BAND TEFLON (100311) 1
33 3/8" CRIMP NUT (10) (10 per pack) 1
34 SPRING RETAINER 1
35 HOSE5"(400225) 1
36 LOOP-BODY (400146) 1
37 SPACER-IFS 8
38 3/8" AN WASHER (10) (10 per pack) 1
39 ASM-PISTON W/BAND CONVEX 1
40 O-RING SHAFT SEAL HEAD (10) (10 per pack) 1
41 SHAFT SEAL U CUP 1
42 WIPER D/TYPE 1
43 SHAFT5/8" (400159) 1
