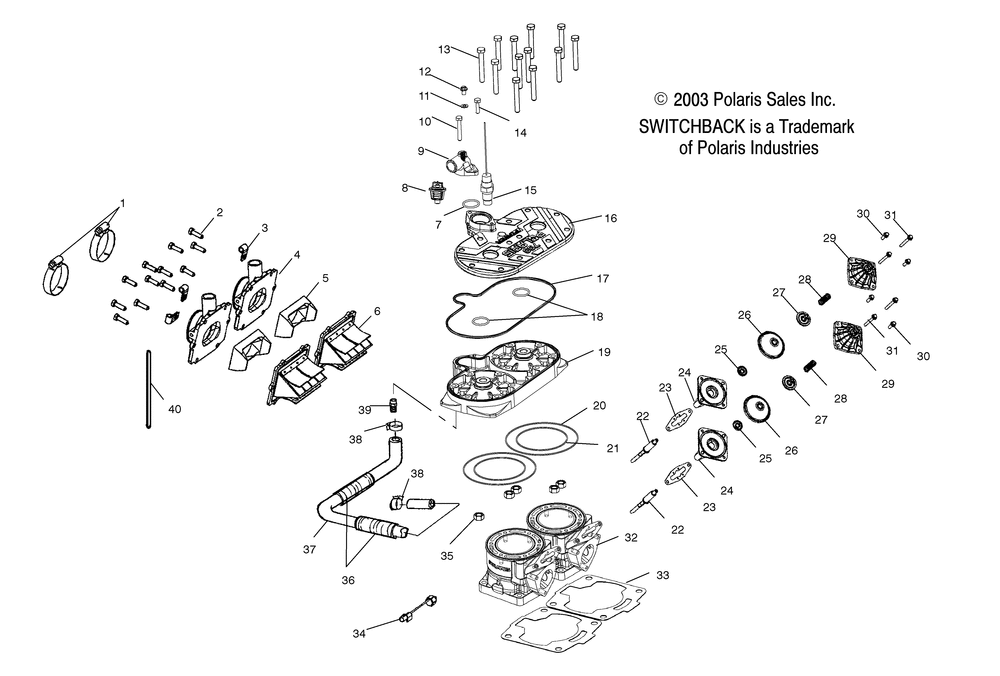

CYLINDER (700) - S04NS7CS / A / B / C / D (4988378837D05)

№	Наименование	Кол-во
1	CLAMPHOSESS	2
2	SCREW(10) * (10 per pack)	12
3	CLAMPHOSE	3
4	ADAPTERCARBURETOR40MM	2
5	STUFFER-REED BLOCKNOK	2
6	VALVEREEDASM.	2
7	O-RINGLIPSEAL	1
8	THERMO-120	1
9	COVER-THERMOSTAT M6 BLEED MACH	1
10	SCR-M6X1.0X45 HX-FL-Y/D [2 PER SIDE]	1
11	WASHERFLAT(10) * (10 per pack)	1
12	SCREWM6X1.0 X 13SL/HX/FL-Z	1
13	SCREWM8X1.25X60	12
14	SCREW	1
15	SENSOR-THERMISTERESX8477A	1
16	COVER-HEAD 81 SNO 700 RED PWD	1
17	SEALRUBBERHEAD	1
18	O-RING(10) (10 per pack)	2
19	HEAD-CYL 81MM 3/4 DETON [700]	1
20	O-RING-4.98X5.129X.07-1.489	2
21	O-RING	2
22	VALVE-GUILLOTINE 700 DECOM	2
23	GASKET-EXHAUST VALVEBASE(10) (10 per pack)	2
25	WASHER-BELLOWSEXH VALVEDOM	2
26	BELLOWS-EXHRIBNMX	2
27	CAP/NUTBELLOWS-HC ANODIZED	2
28	SPRING-COMPGRN/YLW	2
29	ASM-HOUSING W/BUSHING	2
30	SCREW	4
31	SCR-M6X1.0X50.0 HX/FL-YD (10) (10 per pack)	4
32	CYLINDER-81 W/DECOM [700]	2
33	GASKET-CYL BASE METAL 700	2
34	SCR-M8X1.25X30HX/FL-YD	1
34	SENSOR-DETONATION BOSCH	1
35	NUT(10) (10 per pack)	8
36	CONDUITFLEX(.75"ID)	0
37	HOSEBYPASS	1
38	CLAMP-BYPASS NORMA tahos_24-15	2
39	FITTING-3/4NPT-1"HOSE BRASS	1
40	RETAINERSS.	1
