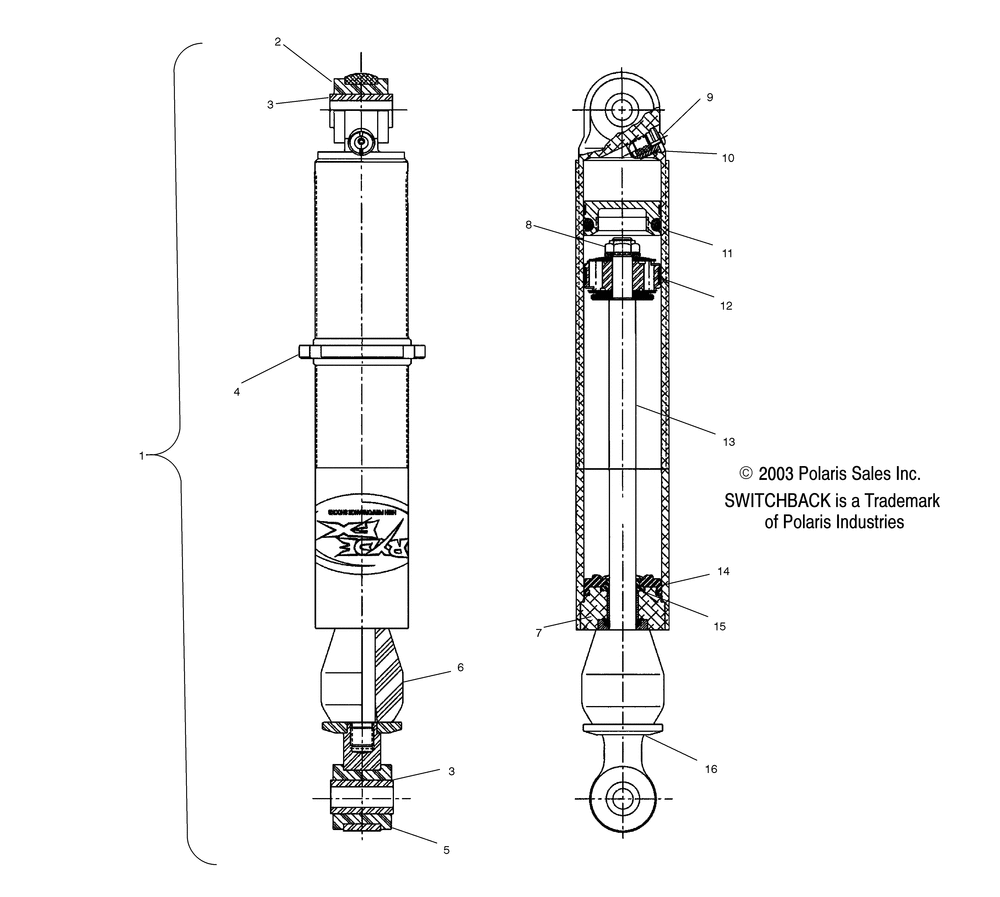

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | SHOCK-IFSARVINIFP | 2 | |
| 2 | BUSHING | 2 | |
| 3 | SLEEVE-.38"IDX.63"ODX1.18 PM | 1 | |
| 4 | NUTSPRING RETAINER | 1 | |
| 5 | BUSHING | 2 | |
| 6 | BUMPERCOMPRESSION | 1 | |
| 7 | CYL HEAD ASSY(1/2" ROD) | 1 | |
| 8 | NUT | 1 | |
| 9 | VALVE SCREW | 1 | |
| 10 | PRESS-VALVE O-RING (10) (10 per pack) | 1 | |
| 10 | PRESS-VALVE ASSY | 1 | |
| 11 | IFP | 1 | |
| 11 | IFP WEAR BAND | 1 | |
| 11 | IFP-O-RING | 1 | |
| 12 | PISTON WEAR BAND | 1 | |
| 12 | TOP-OUT WASHER | 1 | |
| 12 | BACK-UP WASHER | 1 | |
| 12 | BANDED PISTON .086" ORIFICE | 1 | |
| 13 | SHAFT | 1 | |
| 14 | CAP SEAL | 1 | |
| 15 | ROD SEAL | 1 | |
| 16 | MOUNTUPPER | 1 |
