Polaris S04NS6ES 600/700/800 SWITCHBACK S04NS6ES 600/700/800 SWITCHBACK FRONT SUSPENSION - S04NS6ES / A / B / C / D-S04NS7CS / A / B / C / D-S04NS8CS / A / B / C / D (4988378837B01)

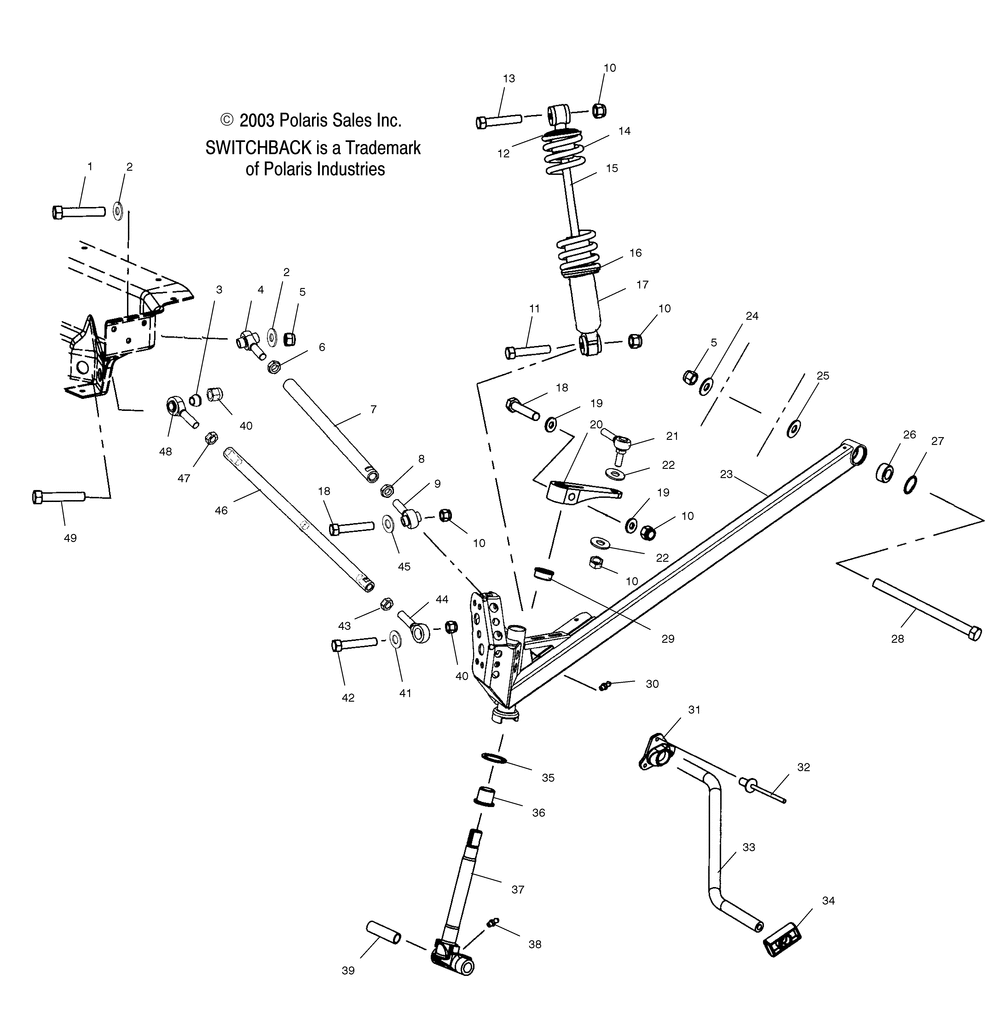

FRONT SUSPENSION - S04NS6ES / A / B / C / D-S04NS7CS / A / B / C / D-S04NS8CS / A / B / C / D (4988378837B01)
№ Наименование Примечание Кол-во
1 BOLT-7/16-20X3.00HXCAPGR5-Y 2
2 WASHER-7/16 SAESTFTHRU-HRD-Y 4
3 BUSHINGSPACER 2
4 ROD END-RADIUSLH7/16 2
5 NUT-7/16-20NYLOKY (10) (10 per pack) 4
6 NUTLH 2
7 TUBE-RADIUS RODUPPERCLD SLV 2
8 NUTJAM(10) (10 per pack) 2
9 ROD ENDRADIUS7/16 2
10 NUTNYLOK(10) (10 per pack) 10
11 SCREW(10) (10 per pack) 2
12 RETAINERSPRINGSLOTTED 2
13 SCREW(10) (10 per pack) 2
14 SPRING-COMPIFS10.80/100FOXBK 2
15 SHOCK-IFSARVINIFP 2
16 RINGSPRING PRELOAD ADJ. 2
17 RETAINERSPRINGBODYTHREADED 2
18 SCR-3/8-24X2 HX/CP GR5-Y-SP 4
19 WASHER 4
20 ARM-STEERING MACHINED 2
21 ROD-END 3/850 2
22 WASHERFLAT 4
23 ASM-TRAILING ARMSVCLHSLV [Incl. 2425] 1
23 ASM-TRAILING ARMSVCRHSLV [Incl. 2425] 1
24 WASHERFLAT(10) * (10 per pack) 2
25 CUPTRAILING ARM MNT 2
26 BEARING-SPHERICAL7/16PLASTIC 2
27 RINGRETAINING 2
28 SCREW 2
29 BUSHING-FLANGE 2
30 FITTINGLUBRICATIONTHREADED(10 2
31 BUSHINGTORS.BAR9/16" 2
32 RIVET(50) (50 per pack) 6
33 BAR-TORSION9/16EDGE RMK CC 1
34 SLIDE-TORSION BAR9/16ANTIRATT 2
35 BUSHING(10) (10 per pack) 2
36 BUSHINGFLANGED(10) (10 per pack) 2
37 SHAFT-SPINDLEW/STEER STOPBLK 2
38 FITTINGLUBE.W/BALL CK.(10) (10 per pack) 2
39 BUSHINGPIVOT 2
40 NUT-1/2-70NYLOK-GR8-Y 4
41 WASHER-.505X1.00X.062HH-Y 2
42 BOLT-1/2-20X2HXCAPGR5-Y 2
43 NUT-JAM(10) (10 per pack) 4
44 ROD END-RADIUSRHLOWER 2
45 WASHER3/8 FW(10) (10 per pack) 2
46 TUBE-RADIUS RODLOWER 2
47 NUTJAMLH(10) (10 per pack) 2
48 ROD END-RADIUSLHLOWER 2
49 BOLT-1/2-20X3.75HXCAPGR8-Y 2
