Polaris S04NK6ES 600/700/800 RMK F/O S04NK6ES 600/700/800 RMK F/O RAIL MOUNTING SUSPENSION - S04NK6ES / A / B / C-S04NK7CS / A / B / C-S04NL7CS / A / B / C-S04NK8CS / A / B / C-S04NL8CS / A / B / C-S04NM8CS / A / B / C (4988398839

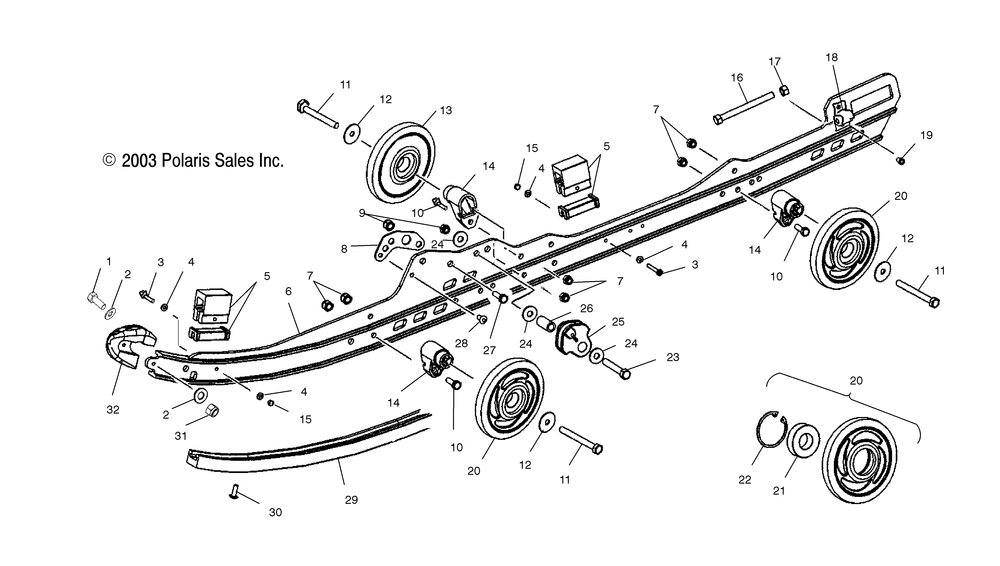

RAIL MOUNTING SUSPENSION - S04NK6ES / A / B / C-S04NK7CS / A / B / C-S04NL7CS / A / B / C-S04NK8CS / A / B / C-S04NL8CS / A / B / C-S04NM8CS / A / B / C (4988398839
№ Наименование Примечание Кол-во
1 BOLT 2
2 WASHER 4
3 SCREW 4
4 WASHERFLAT 8
5 LINERBUMPER 4
5 BUMPERJOUNCE REAR 4
6 ASM-RAIL144RH [Incl. 1-619203132] 1
6 ASM-RAIL151RH [Incl. 1-619203132] 1
6 ASM-RAIL159LH [Incl. 1-619203132] 1
6 ASM-RAIL159RH [Incl. 1-619203132] 1
6 ASM-RAIL144LH [Incl. 1-619203132] 1
7 NUTNYLOK(10) (10 per pack) 12
8 BRKT-RAILREINF 2
9 NUTNYLOK(10) (10 per pack) 4
10 BOLT 6
11 SCREW 6
12 WASHER-SPRINGCON 5/16X.090-Y 6
13 ASM-WHEELBOGIEPLAIN5.62 2
13 ASM-WHEELBOGIELWTPLAIN5.62 2
14 BLOCK-WHEEL MOUNTLWT 6
15 NUT NYLOK 10-24 Y 4
16 SCREW 2
17 NUT 2
18 BLOCK-IDLER BOLT ADJ. 2
19 RIVET(50) (50 per pack) 4
20 ASM-WHEEL SCROLLED5.62I RED 4
21 BEARING tahos_6205 [1 PER] 4
22 RING-RETAINING [1 PER] 4
23 BOLT 2
24 WASHERFLAT(10) (10 per pack) 6
25 GUIDE-SPRING SQUARE 2
25 PIN-CLEVIS 3/16X1 1/4 2
25 PINHITCH(10) * (10 per pack) 2
26 SPACER-.407X.625X1.33 2
27 BOLT 2
28 RIVET(10) (10 per pack) 2
29 HI-FAX.45/74"SERVICENAT 2
29 HI-FAX.45/74"SERVICENAT 2
30 SCREW(10) * (10 per pack) 2
32 CAP-RAIL TIP UHMW 2
