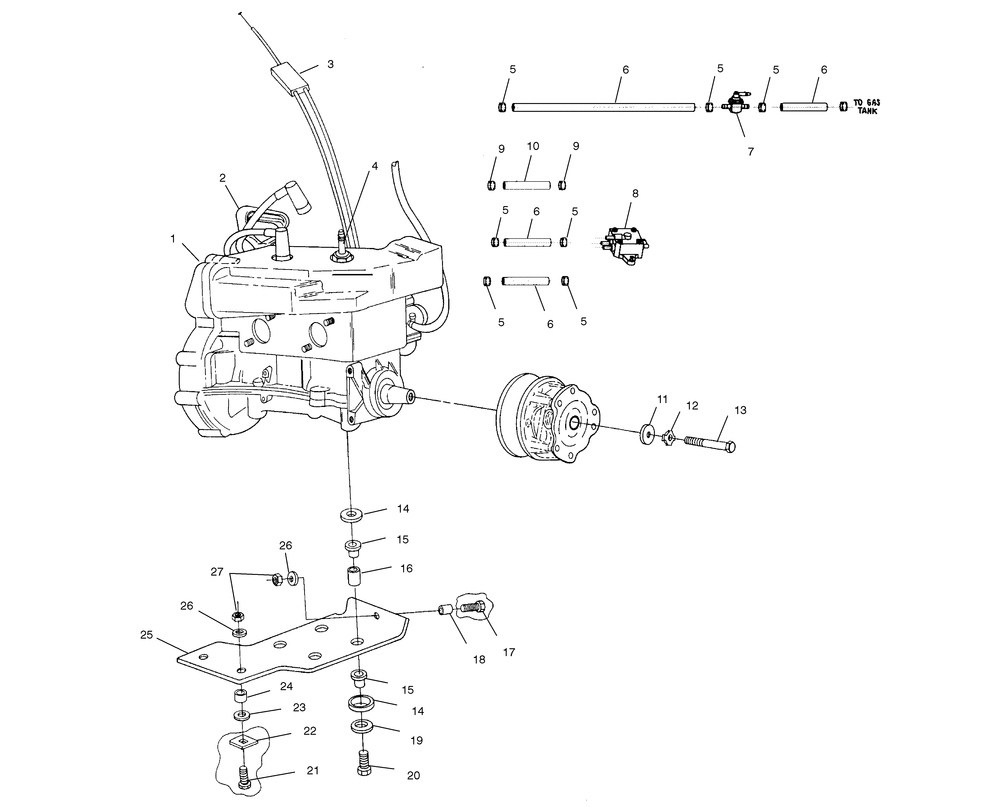

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | SUBSTITUTED BY 9990000 NOTE: The Short Block assembly contains a crankcase assembly cylinder and cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required for warranty consideration. | 1 | |
| 2 | HANDLE-RECOILBLK | 1 | |
| 3 | CABLE THROTTLE | 1 | |
| 4 | PLUGSPARKNGK BR8ES(10) (10 per pack) | 2 | |
| 5 | CLAMPHOSE(10) (10 per pack) | 8 | |
| 6 | FUEL HOSE-250 CM | 0 | |
| 7 | VALVE-FUELPLASTICINLINE 1/4" | 1 | |
| 9 | CLAMPHOSE(10) (10 per pack) | 2 | |
| 10 | LINE FUEL1/4 ID(600 CM.) | 0 | |
| 11 | WASHERCLUTCH RETAINER | 1 | |
| 12 | WASHER LOCK | 1 | |
| 13 | BOLT | 1 | |
| 14 | CAPDAMPENERVIBRATION | 8 | |
| 15 | DAMPNER-VIB. | 8 | |
| 16 | BUSHING-MOTOR MT. | 4 | |
| 17 | BOLT | 1 | |
| 18 | BUSHINGTHREADED | 1 | |
| 19 | WASHERSPRING LOCK | 4 | |
| 20 | BOLT | 4 | |
| 21 | BOLT | 2 | |
| 22 | PLATE SPACER | 2 | |
| 23 | WASHER | 2 | |
| 24 | BUSHINGTHREADED | 2 | |
| 26 | WASHER | 3 | |
| 27 | NUT LOCK(10) (10 per pack) | 3 |
