SEAT and GAS TANK - S03NB5BS / A-S03NA5BS-S03NF5BS-S03NE5BS (4977807780A04)

Корзина пуста
Polaris S03NA5BS SUPERSPORT EDGE X F/O S03NA5BS SUPERSPORT EDGE X F/O SEAT and GAS TANK - S03NB5BS / A-S03NA5BS-S03NF5BS-S03NE5BS (4977807780A04)

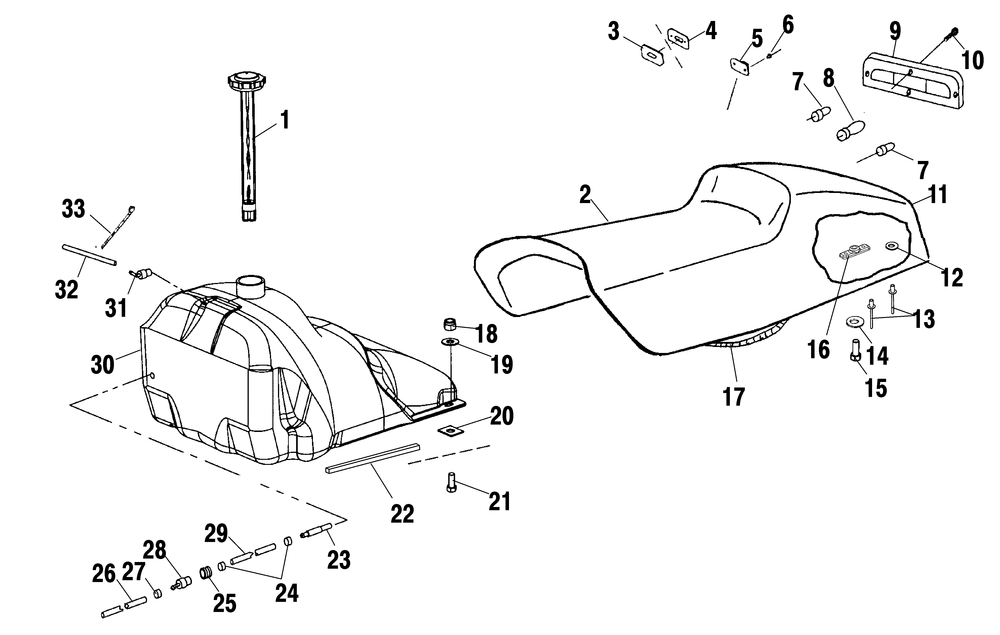

SEAT and GAS TANK - S03NB5BS / A-S03NA5BS-S03NF5BS-S03NE5BS (4977807780A04)
№ Наименование Примечание Кол-во
1 CAP-FUEL12 GAL W/GAUGE13.50A 1
2 SUBSTITUTED BY 9999999 [Black] 1
2 ASM-SEATEDGE XSONIC BLUE [Blue] 1
2 ASM-SEATEDGESTD [Edge Std] 1
2 SUBSTITUTED BY 9999999 1
2 ASM-SEATEDGEBLK [Red] 1
2 SUBSTITUTED BY 9999999 [Red] 1
2 SUBSTITUTED BY 9999999 [Blue] 1
2 ASM-SEATEDGEBLK [Black] 1
3 GROMMETRELATCH1"BOTT. 2
4 GROMMETRELATCH1"TOP 2
5 TWISTLOCKRELATCH1"W/HOLE(10) (10 per pack) 2
6 RIVET(10) (10 per pack) 4
7 BULBTAILLIGHT(10) (10 per pack) 2
8 BULB 1
10 SCREW(10) (10 per pack) 4
11 HOUSING-TAILLIGHT 1
12 WASHER (10) (10 per pack) 3
13 RIVETPOP5/32"(50) (50 per pack) 7
14 WASHER FLAT(10) * (10 per pack) 2
15 SCREW 2
16 NUT-SEAT 2
17 HARNESS TAILLIGHT 1
18 NUT-NYLOK(10) (10 per pack) 2
19 WASHERFLAT 2
20 NUT SPEED 2
21 BOLTCARRIAGE 2
22 FOAMSEAL 2
23 PICK-UP-FUELW/FILTER105MICRN 1
24 RING COMPRESSION 2
25 GROMMET 1
27 CLAMPHOSE(10) (10 per pack) 1
28 FITTING-1/4 STRAIGHTDEX 1
29 FUEL LINE-ESTER 0
30 ASM-FUEL TANKEDGE 11.8 [Incl. 210-14] 1
31 FITTING90 DEG1/8 1
32 LINEFUEL3MMX7MM 0
33 CABLE TIE-RELEASABLE5 1/2" 2
