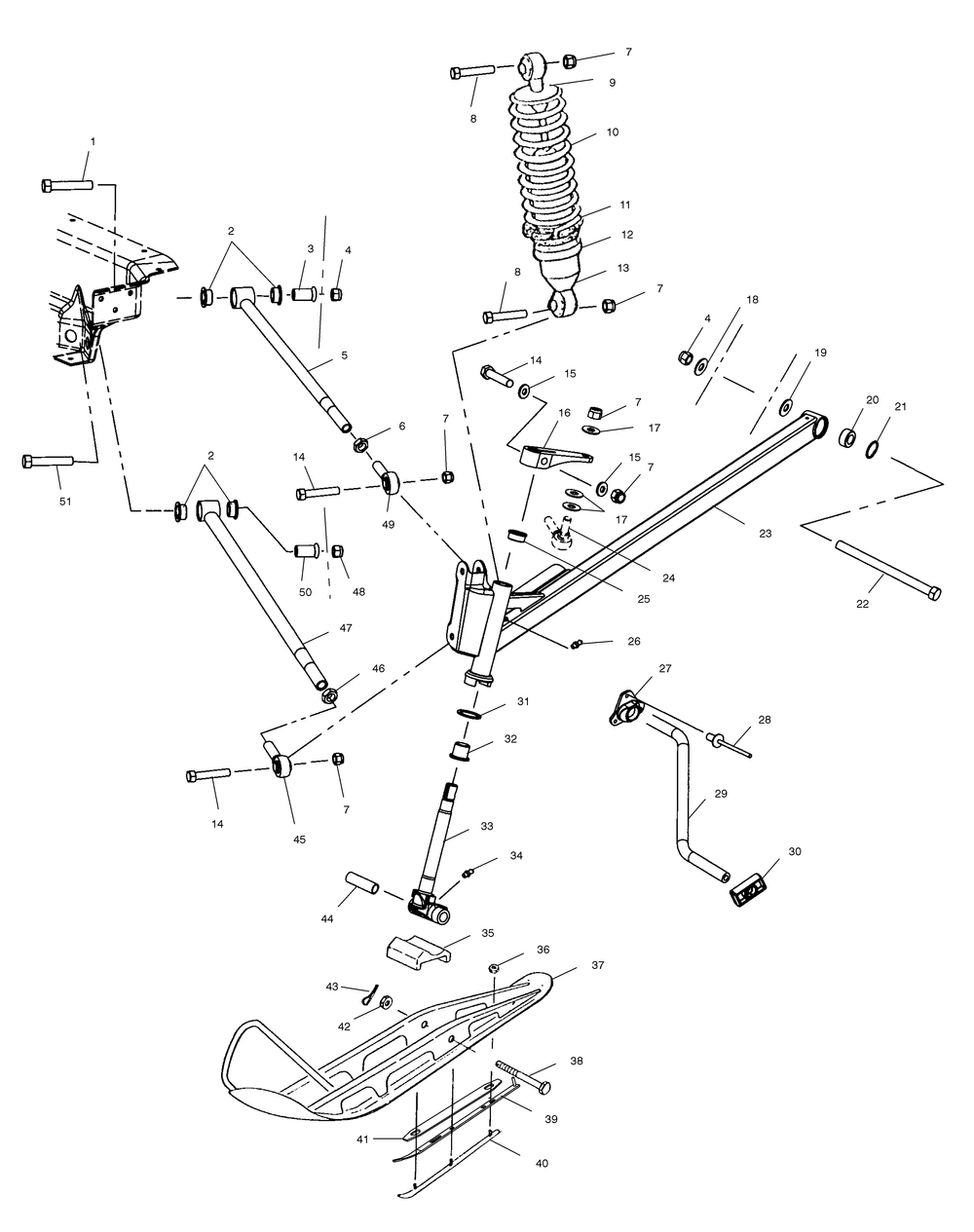

FRONT SUSPENSION and SKI - S03NB5BS / A-S03NA5BS-S03NF5BS-S03NE5BS (4977807780A13)

Корзина пуста
Наименование Примечание Кол-во
1 BOLT-7/16-20X3.00HXCAPGR5-Y 2
2 BUSHINGPIVOTINNER 8
3 BUSHING-SHLDR.443X.750X1.215 2
4 NUT-7/16-20NYLOKY (10) (10 per pack) 4
5 RADIUS RODUPPERBLK 2
6 NUTJAM(10) (10 per pack) 2
7 NUTNYLOK(10) (10 per pack) 12
8 SCREW(10) (10 per pack) 4
9 RETAINERSPRINGSLOTTED 2
10 SPRING-COMPIFS10.75/100BLK 2
11 RINGSPRING PRELOAD ADJ. 2
12 RETAINERSPRINGBODYTHREADED 2
13 SHOCK-IFSNITREX11.09X16.35 2
14 SCR-3/8-24X2 HX/CP GR5-Y-SP 6
15 WASHER 4
16 ARM-STEERINGMACHINED 2
17 WASHERFLAT 4
18 WASHERFLAT(10) * (10 per pack) 2
19 CUPTRAILING ARM MNT 2
20 BEARING-SPHERICAL7/16PLASTIC 2
21 RINGRETAINING 2
22 SCREW 2
23 ASM-TRAILING ARMSVCCSLVRRH [Incl. 2021] 1
23 ASM-TRAILING ARMSVCCSLVRLH [Incl. 2021] 1
25 BUSHING-FLANGE 2
26 FITTINGLUBRICATIONTHREADED(10 2
27 BUSHING-TORSION BAR 2
28 RIVET(50) (50 per pack) 6
29 BARTRSN1/242.5BLK 1
30 SLIDE-TORSION BAR1/2ANTIRATTL 2
31 BUSHING(10) (10 per pack) 2
32 BUSHINGFLANGED(10) (10 per pack) 2
33 SHAFT-SPINDLEW/STEER STOPBLK 2
34 FITTINGLUBE.W/BALL CK.(10) (10 per pack) 2
35 STOP RUBBER 2
36 NUTNYLOK(10) (10 per pack) 6
37 SKI WELD 2
38 SCREW(10) (10 per pack) 2
39 PLATE SKAG 2
40 SKAG BLK. ** 2
41 SHIM-SKAG PLATEBLK 2
42 NUT CASTLE(10) (10 per pack) 2
43 PIN-COTTER(10) (10 per pack) 2
44 BUSHINGPIVOT 2
45 ROD ENDRADIUS1/2 2
46 NUT-JAM(10) (10 per pack) 2
47 RADIUS RODLOWERBLK 2
48 NUT-1/2-20NYLOKY 2
49 ROD ENDRADIUS7/16 2
50 BUSHING-SHLDR.505X.750X1.215 2
51 BOLT 2
