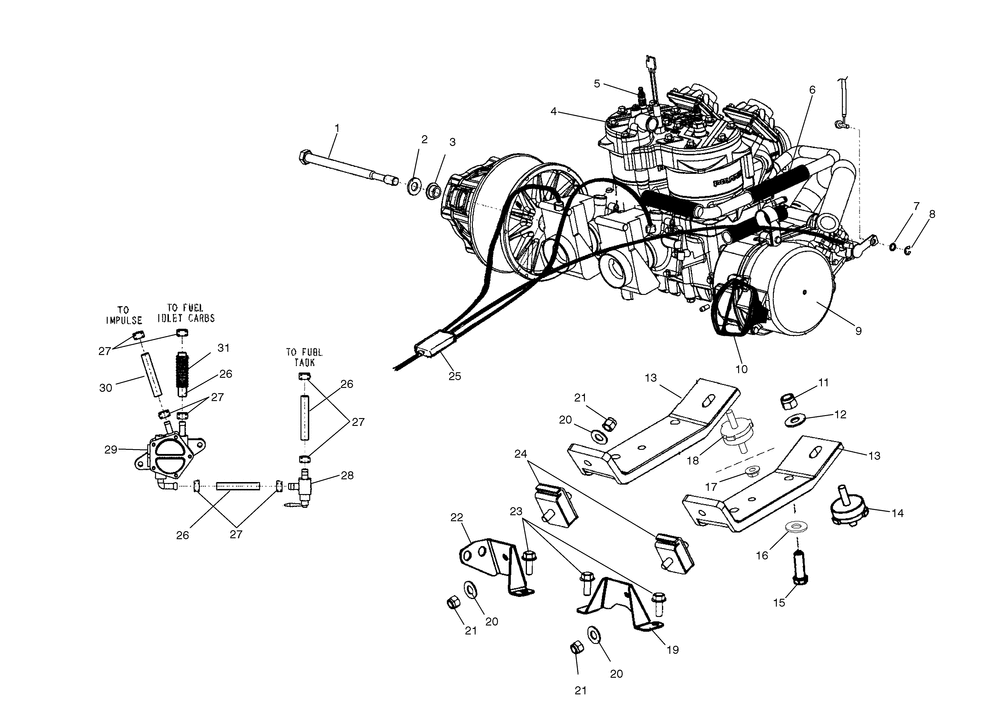

ENGINE MOUNTING - S03NK7CS / A-S03NL7CS / A-S03NK8CS / A-S03NL8CS / A-S03NM8CS (4978037803C08)

№	Наименование	Кол-во
1	SCR-M14X1.5X215HX10.9Y35R	1
2	WASHER	1
3	WASHERCLUTCH RETAINER	1
4	SUBSTITUTED BY 9990000 [700] NOTE: The Short Block assembly contains a crankcase assembly cylinder and cylinder head assembly and a piston and crankshaft assembly. Prior authorization is required for warranty consideration.	1
4	SUBSTITUTED BY 9990000 [800] NOTE: The Short Block assembly contains a crankcase assembly cylinder and cylinder head assembly and a piston and crankshaft assembly. Prior authorization is required for warranty consideration.	1
5	SP.PLUGCHAMPION RN57Y CC (4) (4 per pack)	2
6	Conduit Flex	1
7	WASHER(10) (10 per pack)	1
8	RING-ERET.	1
9	FOIL-TAPE5.5"DIA	1
10	HANDLE-RECOILBLK	1
11	NUT NYLOK(10) * (10 per pack)	2
12	WASHERFLAT(10) (10 per pack)	2
13	STRAP-ENGINE MOUNTS80LH [700][800]	1
13	STRAP-ENGINE MOUNTS80RH	1
15	BOLT	4
16	WASHERSPRING LOCK	4
17	NUT-FLANGED3/8-16 NYLON-Z (10) (10 per pack)	1
18	MOUNT-ENGINE3/8-16	1
19	BRKT-ENGINE MOUNTRHFORMED	1
20	WASHERFLAT(10) (10 per pack)	4
21	NUTFLEXLOCK	4
22	WELD-ENG MOUNT BRKTLH	1
23	SCR-3/8-16X1-P30-SPEC-Y	3
24	MOUNT-ENGINE3/8-16RECT	2
25	Cable Throttle	1
27	CLAMPHOSE(10) (10 per pack)	8
28	VLVFUEL SHUTOFF5/16 ID	1
29	PUMP-FUEL5/16 IN/OUTMIK	1
30	LINE FUEL1/4 ID(600 CM.)	0
