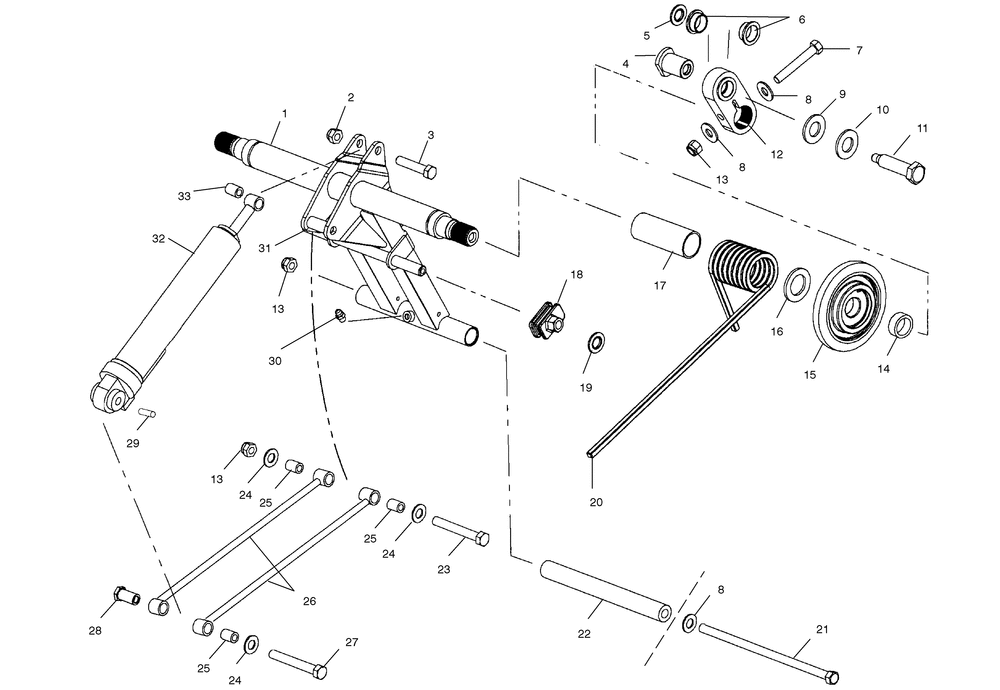

Polaris S03NA6ES 600 XC SP EDGE X F/O S03NA6ES 600 XC SP EDGE X F/O REAR TORQUE ARM (EDGE) - S03NP5CS / 5CSA / 5CSB / 6ES / 6ESA / 6ESB-S03NA5CS / 6ES (4977827782B10)
REAR TORQUE ARM (EDGE) - S03NP5CS / 5CSA / 5CSB / 6ES / 6ESA / 6ESB-S03NA5CS / 6ES (4977827782B10)
№ Наименование Примечание Кол-во
1 WELD-RTAEDGECOMPYLW 1
1 WELD-ARMTORQUEREARBLK 1
2 NUTFLEXLOC(10) (10 per pack) 1
3 BOLT 1
4 SHAFT-ARM 2
5 WASHERTHRUST 2
6 BUSHING 4
7 SCREW(10) (10 per pack) 2
8 WASHERFLAT(10) (10 per pack) 5
9 WASHERFLAT(10) (10 per pack) 2
10 WASHERSPRING LOCK(10) (10 per pack) 2
11 SCREW(10) (10 per pack) 2
12 ARMASMRTA [Incl. 15] 2
13 NUTNYLOK(10) (10 per pack) 4
14 SPACERWHEEL 2
15 ASM-CARRIER WHEEL6.38 2
16 WASHER 2
17 SLEEVETORSION SPRING 2
18 ROLLERSPRINGADJSQUARE 2
19 CLIPPUSH ON(10) (10 per pack) 2
20 SPRING-TORS.405SQ/77 1
20 SPRING-TORS.405SQ/77 1
20 SPRG-TORS.375SQ/77 1
20 SPRG-TORS.375SQ/77 1
20 SPRG-TORSION.359SQ/77 1
20 SPRG-TORSION.359SQ/77 1
21 SCREW 1
22 SHAFT.740X.390X7.0556066 1
23 BOLT 1
24 WASHERWAVE SPRING(10) (10 per pack) 3
25 BUSHING.378X.616X1.12 3
26 RODSHOCK12.850BLK 2
27 SCREW-3/8-24X3.75-HX/P-80-GR8Y 1
28 BUSHINGNUT.616X1.12X.875 1
29 SLEEVE.385X.560X1.30 1
30 FITTING LUBRICATION 1
31 SPACER.397X.562X1.250 1
32 SHOCK-R/TALUMPPS 1
32 SUBSTITUTED BY 9990000 1
33 BUSHING 1
