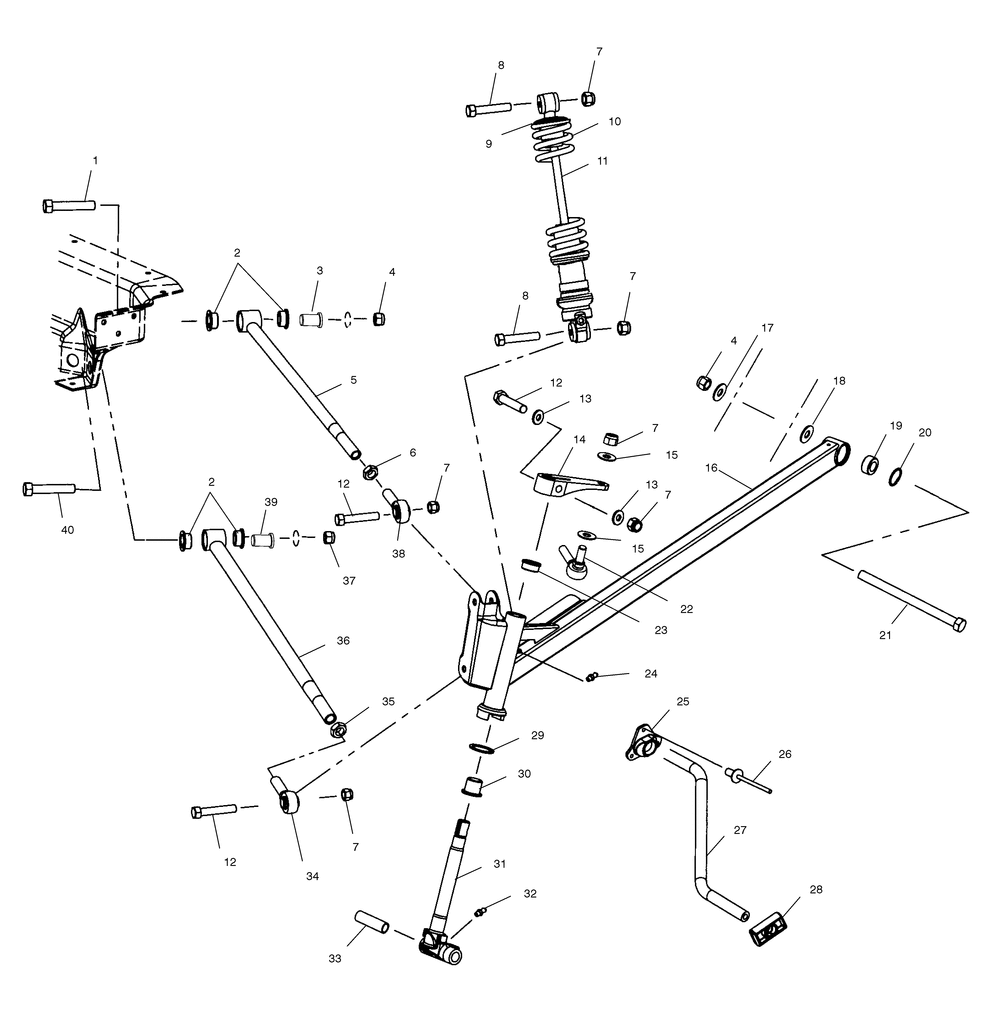

FRONT SUSPENSION - S03NP5CS / 5CSA / 5CSB / 6ES / 6ESA / 6ESB-S03NA5CS / 6ES-S03NF5CS / 6ES-S03NE5CS / 6ES (4977827782A13)

Polaris S03NP5CSA/B 500 XC SP EDGE S03NP5CSA/B 500 XC SP EDGE FRONT SUSPENSION - S03NP5CS / 5CSA / 5CSB / 6ES / 6ESA / 6ESB-S03NA5CS / 6ES-S03NF5CS / 6ES-S03NE5CS / 6ES (4977827782A13)

№	Наименование	Примечание	Кол-во
1	BOLT-7/16-20X3.00HXCAPGR5-Y		2
2	BUSHINGPIVOTINNER		8
3	BUSHING-SHLDR.443X.750X1.215		2
4	NUT-7/16-20NYLOKY (10) (10 per pack)		4
5	RADIUS RODUPPERBLK		2
5	RADIUS RODUPPERBLK		2
6	NUTJAM(10) (10 per pack)		2
7	NUTNYLOK(10) (10 per pack)		12
8	SCREW(10) (10 per pack)		4
9	RETAINERSPRINGSLOTTED		2
10	SPRING-COMP68/160tahos_11.5BLACK		2
11	Shock IFS IFP		2
12	SCR-3/8-24X2 HX/CP GR5-Y-SP		6
13	WASHER		4
14	ARM-STEERINGMACHINED		2
15	WASHERFLAT		4
16	ASM-TRAILING ARMSVCREDRH [Incl. 2021]		1
16	ASM-TRAILING ARMSVCREDLH [Incl. 2021]		1
16	ASM-TRAILING ARMSVCCSLVRLH [Incl. 2021]		1
16	ASM-TRAILING ARMSVCCSLVRRH [Incl. 2021]		1
16	ASM-TRAILING ARMSVCLHBLK [Incl. 1920]		1
16	ASM-TRAILING ARMSVCRHBLK [Incl. 1920]		1
17	WASHERFLAT(10) * (10 per pack)		2
18	CUPTRAILING ARM MNT		2
19	BEARING-SPHERICAL7/16PLASTIC		2
20	RINGRETAINING		2
21	SCREW		2
22	ROD END-3/8PL75		2
23	BUSHING-FLANGE		2
24	FITTINGLUBRICATIONTHREADED(10		2
25	BUSHING-TORSION BAR		2
26	RIVET(50) (50 per pack)		6
27	BARTRSN1/242.5BLK		1
28	SLIDE-TORSION BAR1/2ANTIRATTL		2
29	BUSHING(10) (10 per pack)		2
30	BUSHINGFLANGED(10) (10 per pack)		2
31	SHAFT-SPINDLEW/STEER STOPBLK		2
32	FITTINGLUBE.W/BALL CK.(10) (10 per pack)		2
33	BUSHINGPIVOT		2
34	ROD ENDRADIUS1/2		2
35	NUT-JAM(10) (10 per pack)		2
36	RADIUS RODLOWERBLK		2
36	RADIUS RODLOWERBLK		2
37	NUT-1/2-20NYLOKY		2
38	ROD ENDRADIUS7/16		2
39	BUSHING-SHLDR.505X.750X1.215		2
40	BOLT		2
