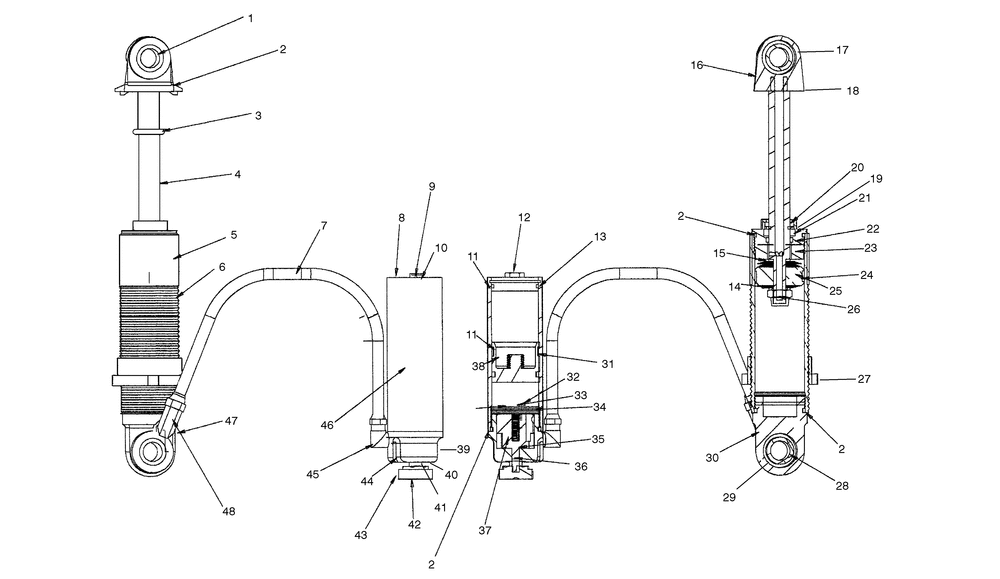

WALKER EVANS / FRONT TRACK SHOCK - S03NX4CS (4978157815C02)
№ Наименование Примечание Кол-во
1 SLEEVE 1.202"L 1
2 O-RING BODY (10) (10 per pack) 4
3 O-RING(10) (10 per pack) 1
4 SHAFT 6.603"L 1
5 WEAR SLEEVE 1
6 BODY-THREADED FT 1
7 ASM-HOSE 1
8 CAP-END 1
9 VALVE-NEEDLE 1
10 O-RING(10) (10 per pack) 1
11 O-RING RESERVOIR (10) (10 per pack) 1
12 SCREW-BUTTON HEAD 8/32(10) (10 per pack) 1
13 RESERVOIR SNAP RING (10) (10 per pack) 1
14 3/8" AN WASHER (10) (10 per pack) 1
15 WASHER-.090 X 1.000(10) (10 per pack) 1
16 SUBSTITUTED BY 9999999 1
17 BUSHING/URETHANE 2
18 SPRING-RETAINING RING 1
19 ASM-SHAFT SEAL HOUSING 1
20 WIPER D/TYPE 1
21 SHAFT SEAL U CUP 1
22 O-RING SHAFT SEAL HEAD (10) (10 per pack) 1
23 SHAFT BUSHING 1
24 WEAR BAND TEFLON (100311) 1
25 ASM-PISTON W/BAND CONCAVE 1
26 3/8" CRIMP NUT (10) (10 per pack) 1
27 SPRING RETAINER 1
28 SLEEVE 1.685"L 1
29 BUSHING/URETHANE 2
30 LOOP-BODY 1
33 BOLT-BALL CHECK 1
34 VALVE-.025 X 1.100(10) (10 per pack) 4
35 SHIM-VALVE .010X.700 (10) (10 per pack) 1
36 O-RING(10) (10 per pack) 1
37 DRUM 1
38 RESERVOIR PISTON 1
39 BALL-D-TENT(10) (10 per pack) 2
40 SPRING-D-TENT(10) (10 per pack) 2
41 O-RING(10) (10 per pack) 1
42 SCREW-10/32 ALLEN(10) (10 per pack) 1
44 HOUSING-ADJUSTOR 1
45 1/8" NPT FEMALE 90 1
46 BODY-RESERVOIR 1
47 EXTENTION-1/8" NPT 1
48 ELBOW-1/8" NPT 90 1
