Polaris S03NX4CS 440 PRO X S03NX4CS 440 PRO X WALKER EVANS / REAR TRACK SHOCK - S03NX4CS (4978157815C03)

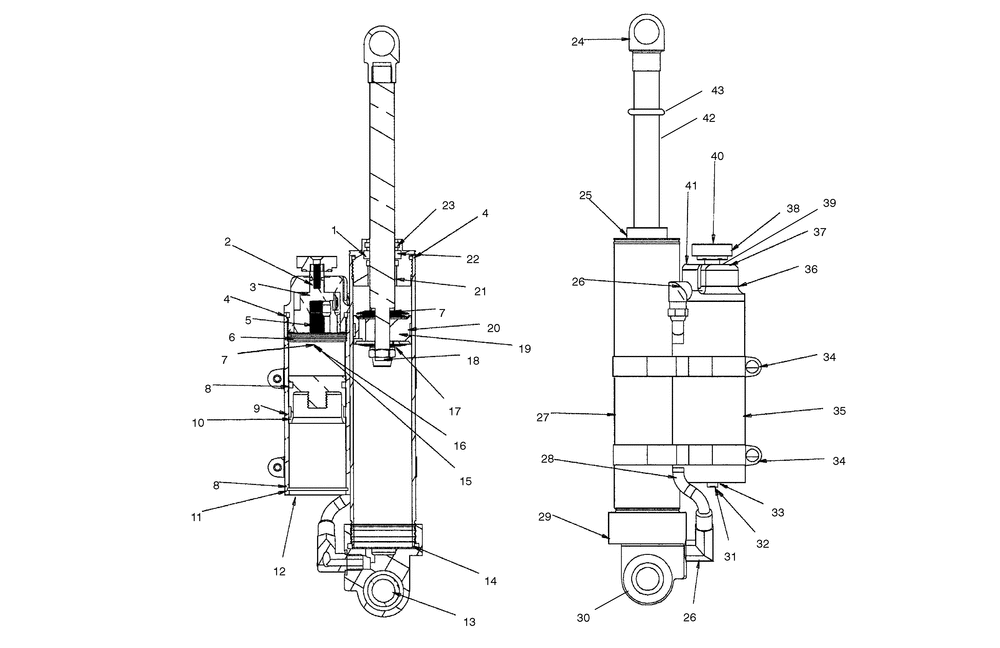

WALKER EVANS / REAR TRACK SHOCK - S03NX4CS (4978157815C03)
№ Наименование Примечание Кол-во
1 SHAFT SEAL U CUP 1
2 O-RING(10) (10 per pack) 1
3 SHIM-VALVE .010X.700 (10) (10 per pack) 1
4 O-RING BODY (10) (10 per pack) 2
5 DRUM 1
6 VALVE-.025 X 1.100(10) (10 per pack) 4
7 WASHER-.090 X 1.000(10) (10 per pack) 1
8 O-RING RESERVOIR (10) (10 per pack) 1
10 RESERVOIR PISTON 1
11 RESERVOIR SNAP RING (10) (10 per pack) 1
12 CAP-END 1
13 SLEEVE 1.202"L 1
14 O-RING BODY (10) (10 per pack) 1
15 BOLT-BALL CHECK 1
17 3/8" AN WASHER (10) (10 per pack) 1
18 3/8" CRIMP NUT (10) (10 per pack) 1
19 ASM-PISTON W/BAND CONCAVE 1
20 WEAR BAND TEFLON (100311) 1
21 SHAFT BUSHING 1
22 O-RING SHAFT SEAL HEAD (10) (10 per pack) 1
23 WIPER D/TYPE 1
24 EYELET 1
25 ASM-SHAFT SEAL HOUSING 1
26 ELBOW-1/8" NPT 90 1
27 BODY RT 1
28 ASM-HOSE 1
29 LOOP-BODY 1
30 BUSHING/URETHANE 2
31 SCREW-BUTTON HEAD 8/32(10) (10 per pack) 1
32 VALVE-NEEDLE 1
33 O-RING(10) (10 per pack) 1
34 CLAMP-HOSE 2
35 BODY-RESERVOIR 1
36 HOUSING-ADJUSTOR 1
37 BALL-D-TENT(10) (10 per pack) 2
39 O-RING(10) (10 per pack) 2
40 SCREW-10/32 ALLEN(10) (10 per pack) 1
41 SPRING-D-TENT(10) (10 per pack) 1
42 SHAFT 8.203"L 1
43 O-RING(10) (10 per pack) 1
