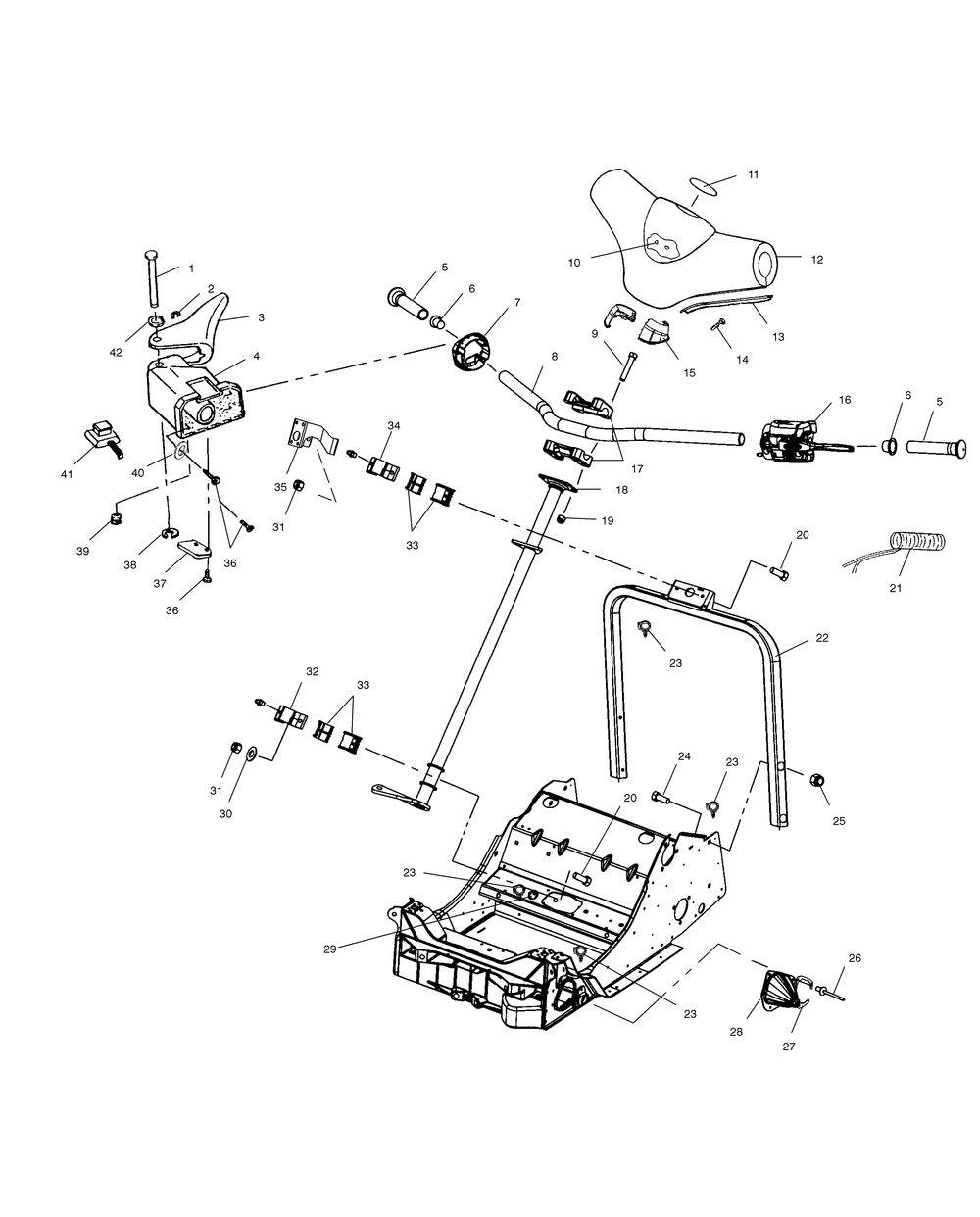

STEERING / HANDLEBAR - S03NB3AS / S03ND3AS (4977867786B03)

№	Наименование	Кол-во
1	PIN-RETAINING	1
2	RINGRETAINING	1
3	ASM-LEVERHTRHI/LO30MM	1
3	LEVER-THROTTLE	1
4	BLOCKTHROTTLE/BRAKE	1
5	GRIPHANDLEBAR	2
6	PLUG	2
7	ADAPTER-BLOCKTHROTTLE	1
8	HANDLEBARBLK	1
9	SCREW	4
10	NUT-PUSH ON.170-.180-Y(10) (10 per pack)	2
12	COVER-HANDLEBARCRBLK	1
13	SLIDE-HANDLEBAR COVERBLK	2
14	CLIPDART NYLONBLK	2
15	COLLAR-CONSOLESTDLH	1
15	COLLAR-CONSOLESTDRH	1
17	BLOCKHANDLEBARBLK	2
18	WELD-POSTSTEERINGBLK	1
19	NUT-NYLOK(10) (10 per pack)	4
20	BOLT-CARR 5/16-X1"GR5 Y LO	4
21	HEATERGRIPLO/MED/HI ***	2
22	WELD-STEERING HOOPBLK	1
23	CLIPROSEBUD	2
24	BOLTCARRIAGE	4
25	NUTFLANGE	4
26	RIVET(50) (50 per pack)	6
27	PLATETIE ROD BOOT	2
28	BOOTTIE RODRH	1
28	BOOTTIE RODLH	1
29	PALNUT	1
30	WASHERFLAT(10) (10 per pack)	2
31	NUTNYLOK(10) (10 per pack)	4
32	FITTING ZERK90 DEGREE	1
32	BRKT-STEERING POSTMOD	1
33	BUSHING	4
35	BRKT-CONSOLEFRONT NECKSTD	1
36	SCREW	8
37	HOLDER-WIRE	1
38	RINGRETAINING (10) (10 per pack)	1
39	SCREWSET	1
40	WASHER (10) (10 per pack)	1
41	SW-AUX SHUT-OFF CLOSEDHON	1
42	WASHER	2
