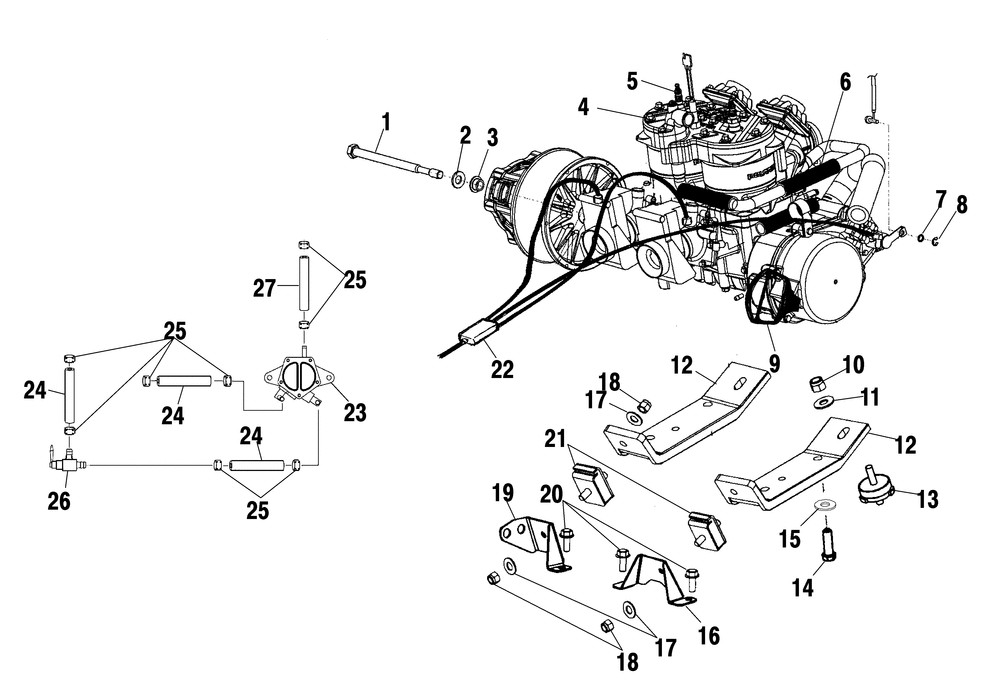

ENGINE MOUNTING - S02NK7CS / CSA (4969546954C04)

№	Наименование	Кол-во
1	SCR-M14X1.5X215HX10.9Y35R	1
2	WASHER	1
3	WASHERCLUTCH RETAINER	1
4	SUBSTITUTED BY 9990000 NOTE: The Short Block assembly contains a crankcase assembly cylinder and cylinder head assembly and a piston and crankshaft assembly. Prior authorization is required for warranty consideration.	1
5	SP.PLUGCHAMPION RN57Y CC (4) (4 per pack)	2
6	Conduit Flex	1
7	WASHER(10) (10 per pack)	1
8	RING-ERET.	1
9	HANDLE-RECOILBLK	1
10	NUT NYLOK(10) * (10 per pack)	2
11	WASHERFLAT(10) (10 per pack)	2
12	STRAP-ENGINE MOUNTS80RH	1
12	STRAP-ENGINE MOUNTS80LH	1
14	BOLT	4
15	WASHERSPRING LOCK	4
16	BRKT-ENGINE MOUNTRHFORMED	1
17	WASHERFLAT(10) (10 per pack)	4
18	NUTFLEXLOCK	4
19	WELD-ENG MOUNT BRKTLH	1
20	SCR-3/8-16X1-P30-SPEC-Y	3
21	MOUNT-ENGINE3/8-16RECT	2
22	CABLETHROTTLE40MM	1
25	CLAMPHOSE(10) (10 per pack)	8
26	VLVFUEL SHUTOFF5/16 ID	1
27	LINE FUEL1/4 ID(600 CM.)	0
