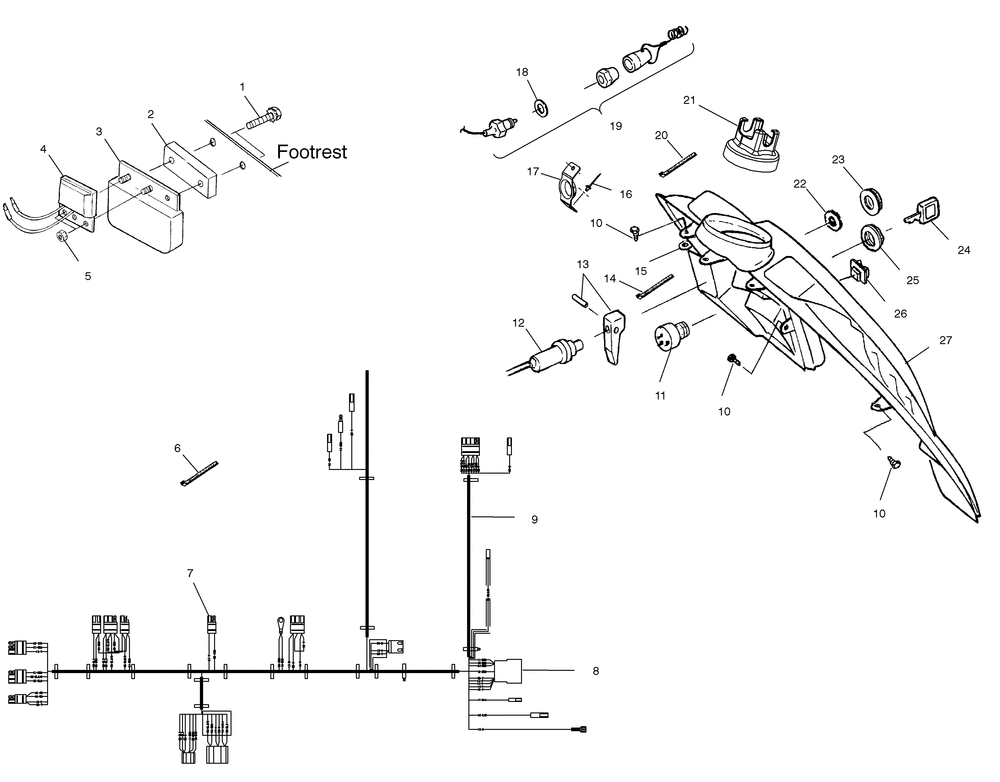

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | SCREW | 2 | |
| 3 | KIT-REGULATORAC LR7-LR9 | 1 | |
| 5 | NUT NYLOK 10-24 Y | 2 | |
| 6 | CABLE TIE (10) (10 per pack) | 7 | |
| 7 | TERMINAL RING | 1 | |
| 8 | HOUSING | 1 | |
| 9 | HARNESS-MAINWIREW/T EURO | 1 | |
| 9 | FOIL4X5 3Mtahos_1430PSA5.5MIL | 2 | |
| 10 | SCREW(10) * (10 per pack) | 4 | |
| 11 | KIT-IGNITION SWITCHESCOMPLT | 1 | |
| 12 | CABLE CHOKE (TWIN) | 1 | |
| 13 | KITCHOKE LEVER REPAIR [Incl. Pin] | 1 | |
| 14 | CABLE TIE-RELEASABLE5 1/2" | 1 | |
| 15 | WASHERNYLON | 2 | |
| 16 | RIVET POP(50) (50 per pack) | 2 | |
| 17 | GUIDE-RECOIL | 1 | |
| 18 | WASHER | 1 | |
| 19 | SWITCH-TETHER | 1 | |
| 20 | CABLE TIE14" | 1 | |
| 21 | BOOT-HANDLEBAR | 1 | |
| 21 | BOOT-HANDLEBAREURO W/T (Euro) | 1 | |
| 22 | WASHER-LOCK | 1 | |
| 23 | NUTCHOKE | 1 | |
| 24 | SUBSTITUTED BY 9990000 NOTE: WHEN ORDERING IGNITION KEY PN 5410611 BE SURE TO SPECIFY IF FOR AN ABCD OR E SWITCH. LETTER CODE WILL BE LABELED ON UNDERSIDE OF SWITCH BODY BEHIND CONSOLE. KEY DOT CODE FOUND ON KEY CAP [I.E. ONE DOT = A TWO DOTS= B ETC.]. | 1 | |
| 25 | NUTIGNITION | 1 | |
| 26 | SWITCHHEATERHI/LO | 1 | |
| 27 | CONSOLEHYB.BLK. | 1 |
