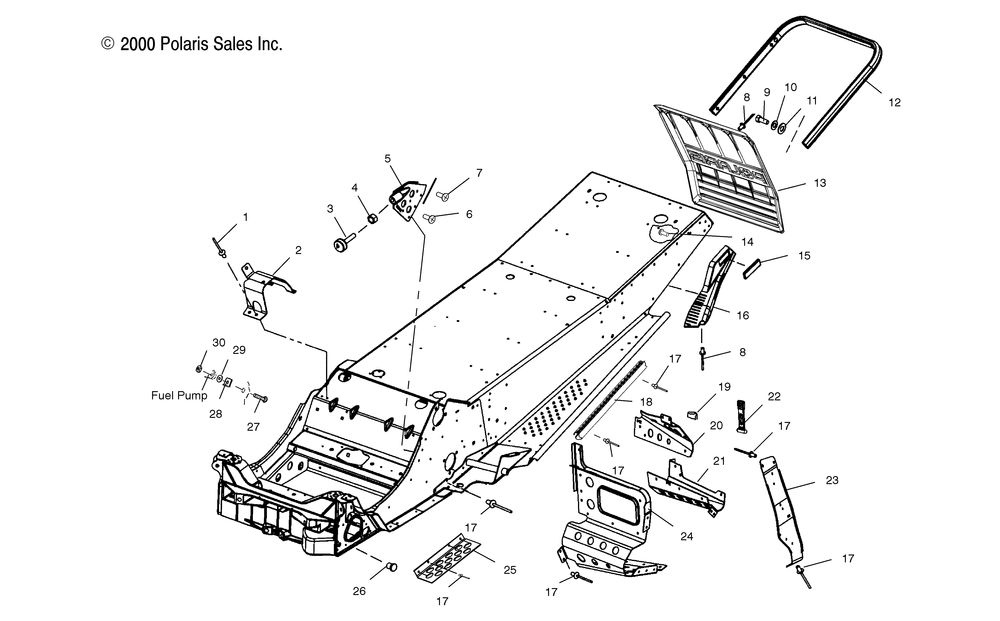

CHASSIS - S01NP6ES (4961536153A003)

№	Наименование	Кол-во
1	RIVET(50) (50 per pack)	2
2	BRKT-JACKSHAFTSHIELD	1
3	STOPTORQUE COURSE 3/8-16	1
4	NUT	1
5	WELD-TORQUE STOPS44	1
6	SCR-3/8-16X1-P30-SPEC-Y	2
7	SCREW	1
8	RIVET(50) * (50 per pack)	13
9	BOLT	6
10	WASHER SPRING LOCK(10) (10 per pack)	6
11	WASHER FLAT(10) * (10 per pack)	6
12	ASM.BUMPERREAR	1
12	ASM.BUMPERREAR [Indy]	1
12	ASM.BUMPERREAR	1
13	FLAP-SNOWEDGEW/WHITE	1
14	SCREW .75	4
15	REFLECTOR ASMRED	1
16	ASM-SNOWSKIRT/REFLECTORBLKRH	1
16	SKIRT-SNOWEDGELHBLK	1
17	RIVETINTERLOCKZ(50) * (50 per pack)	80
18	BRACE-TUNNEL ROLL	1
18	BRACE-TUNNEL ROLLBLK	1
19	EXTRUSIONCLUTCHGUARD	1
20	MOUNT-CONSOLELH	1
20	MOUNTCONSOLELHBLK	1
20	MOUNT-CONSOLERH	1
21	FOOTRSTUP.TOE-CLPLHBLK	1
21	FOOTRSTUP.TOE-CLIPRHBLK	1
21	FOOTREST UPPER-TOE CLIPRH	1
21	FOOTREST UPPER-TOE CLIPLH	1
22	STRAP	2
23	SUPPORT-FOOTRESTLH	1
23	SUPPORT-FOOTRESTRH	1
23	SUPPORT-FOOTRESTLH	1
24	FOOTREST-RH	1
24	FOOTRESTBLKLH	1
24	FOOTREST-LH.080	1
24	FOOTREST-RH	1
25	GUARD-BELTEDGE	1
26	PLUG HOLE	2
27	BOLT-CARRIAGE	2
28	NUT SPEED	2
29	WASHERNYLON	2
30	NUT-NYLOK(10) (10 per pack)	2
