| № | Наименование | Примечание | Кол-во |
|---|---|---|---|

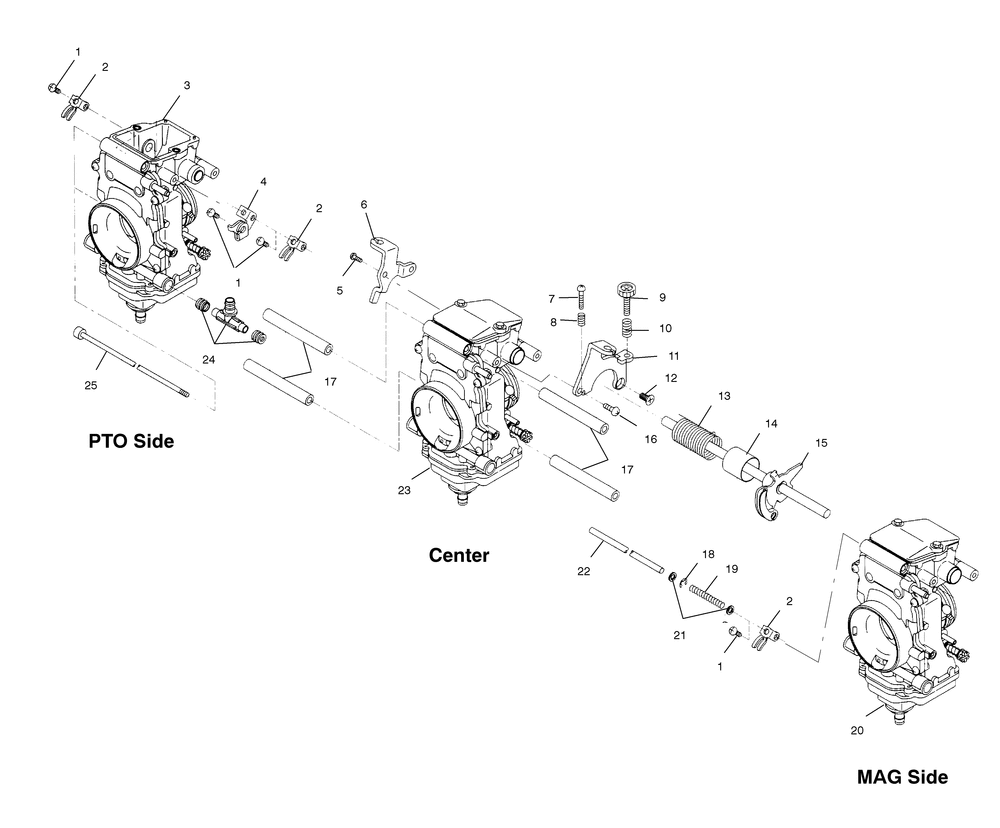

| CARBURETORASM. (Incl. 1-25 and all of Carburetor Pg. D2) | 1 | ||
| 1 | SCREW | 4 | |
| 2 | LEVER | 3 | |
| 4 | LEVERSTARTER | 1 | |
| 5 | SCREW | 2 | |
| 6 | BRACKET | 1 | |
| 7 | SCREW | 1 | |
| 8 | SPRING | 1 | |
| 9 | ADJUSTER | 1 | |
| 10 | SPRING | 1 | |
| 11 | BRACKET | 1 | |
| 12 | SCREW | 1 | |
| 13 | SPRING | 1 | |
| 14 | RING | 1 | |
| 15 | SHAFT ASM. | 1 | |
| 16 | SCREW | 1 | |
| 17 | RING | 4 | |
| 18 | E-RING | 1 | |
| 19 | SPRINGSHAFT | 1 | |
| 21 | PACKINGSHAFT | 3 | |
| 22 | SHAFT | 1 | |
| 24 | NIPPLE ASM. | 2 | |
| 25 | BOLT | 2 |
