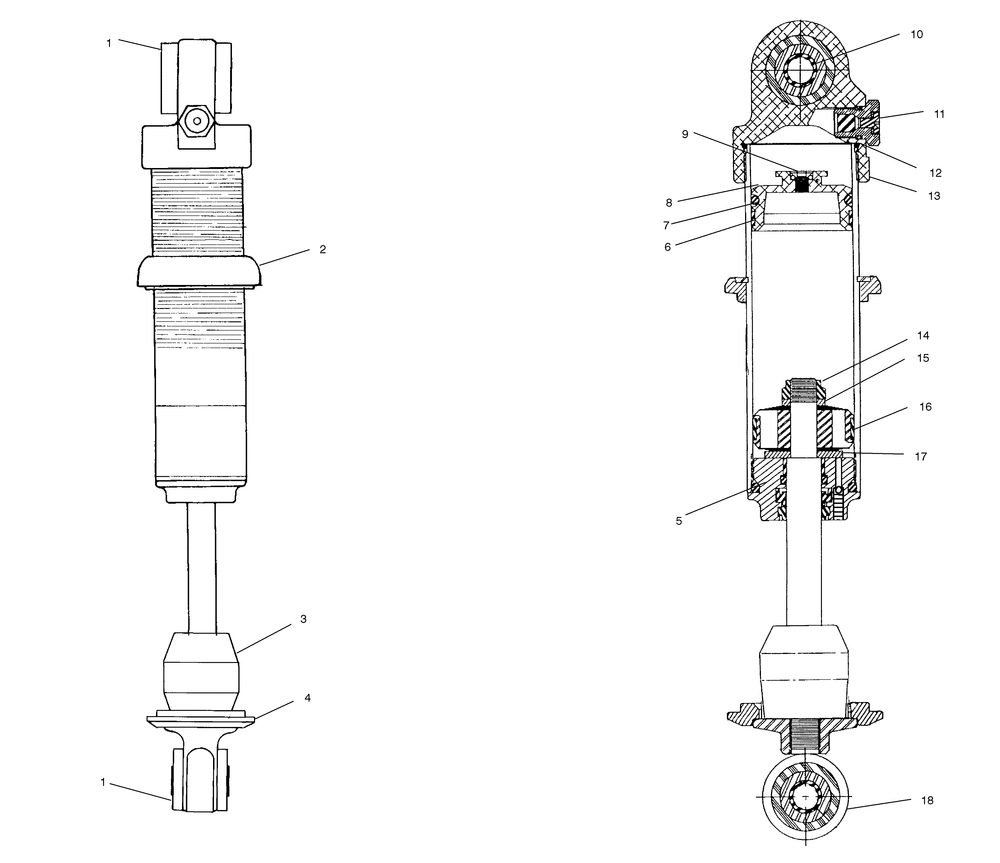

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| SHOCK-GAS IFPIFS | 1 | ||
| 1 | BUSHINGEYELET | 4 | |
| 3 | BUMPERJOUNCE | 1 | |
| 4 | RETAINERSPRINGSLOTTED | 1 | |
| 5 | O-RING.103W-1.299ID | 1 | |
| 5 | O-RING INNER | 1 | |
| 5 | SCREW | 1 | |
| 5 | BALL (FOX) | 1 | |
| 5 | BEARING ASM.498DIA812-03-006 | 1 | |
| 5 | U-CUP-4300 URETH036-01-006 | 1 | |
| 5 | SEALWIPER URETHANE (FOX) | 1 | |
| 6 | RINGPISTONFLOATING | 1 | |
| 7 | O-RINGENDCAP | 1 | |
| 8 | PISTON-FLOATING | 1 | |
| 9 | SCREW/O-RING ASM. | 1 | |
| 10 | SLEEVESTEEL | 2 | |
| 11 | VALVE ASMAIR | 1 | |
| 11 | SCREW | 1 | |
| 11 | O-RINGOUTER | 1 | |
| 12 | O-RING.103W-1.549ID | 1 | |
| 13 | SUBSTITUTED BY 9999999 | 1 | |
| 14 | NUTLOCK | 1 | |
| 15 | PLATEBACKUP | 1 | |
| 16 | DAMPER PISTON RING | 1 | |
| 17 | PLATETOP OUT | 1 | |
| 18 | EYELETBASE | 1 |
