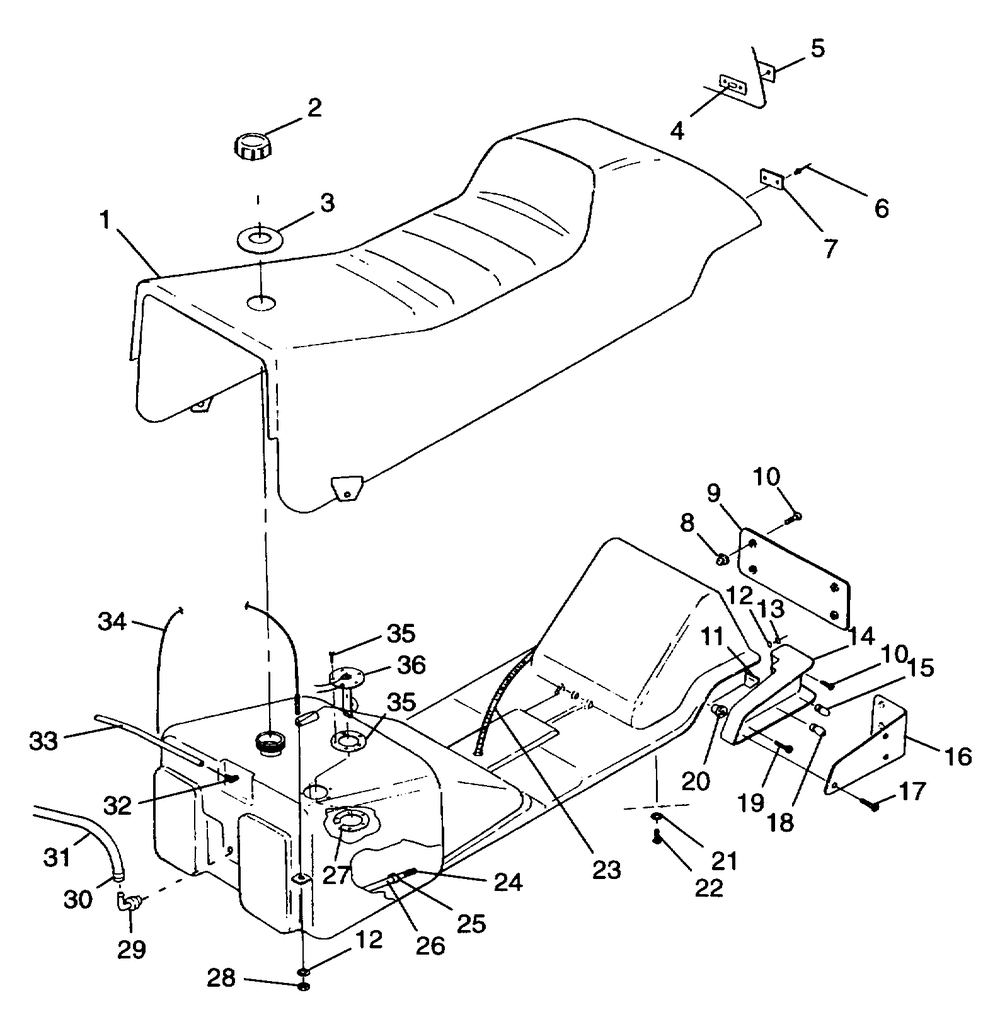

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | ASM-COVER121SCLPTCLP | 1 | |
| 2 | GASKET GAS CAP | 1 | |
| 3 | GROMMETFUELTANK | 1 | |
| 4 | GROMMETRELATCH1"BOTT. | 2 | |
| 5 | GROMMETRELATCH1"TOP | 2 | |
| 6 | RIVET(10) (10 per pack) | 4 | |
| 7 | TWISTLOCKRELATCH1"W/HOLE(10) (10 per pack) | 2 | |
| 8 | NUT | 8 | |
| 9 | REFLECTORCTRSEAT | 1 | |
| 10 | SCREWSELF-TAP | 8 | |
| 12 | WASHER | 7 | |
| 13 | RIVET-POP3/16(.376-.500)(50) | 6 | |
| 14 | HOUSINGLHLENS | 1 | |
| 14 | HOUSINGRHLENS | 1 | |
| 15 | BULB | 2 | |
| 16 | LENSLH | 1 | |
| 16 | LENSRH | 1 | |
| 17 | SCREW(10) (10 per pack) | 14 | |
| 20 | NUT WELL | 2 | |
| 21 | WASHERWROUGHT | 2 | |
| 22 | SCREW | 2 | |
| 23 | HARNESST/L121(SCULPT) | 1 | |
| 24 | PICK-UPFUELW/MESH | 1 | |
| 25 | RINGCOMPRESSION | 2 | |
| 27 | FLANGE-FUEL TANK MOUNTING | 1 | |
| 28 | NUT NYLOK 10-24 Y | 1 | |
| 29 | FITTINGST.THRM3/8 HOSE | 1 | |
| 30 | CLAMPHOSE(10) (10 per pack) | 1 | |
| 32 | FITTING90 DEG1/8 | 1 | |
| 33 | LINEFUEL3MMX7MM | 0 | |
| 36 | SENDERFUEL LEVEL | 1 |
